24 X 6 X 1 Triangle J Channel Garret Louver Exhaust Vent

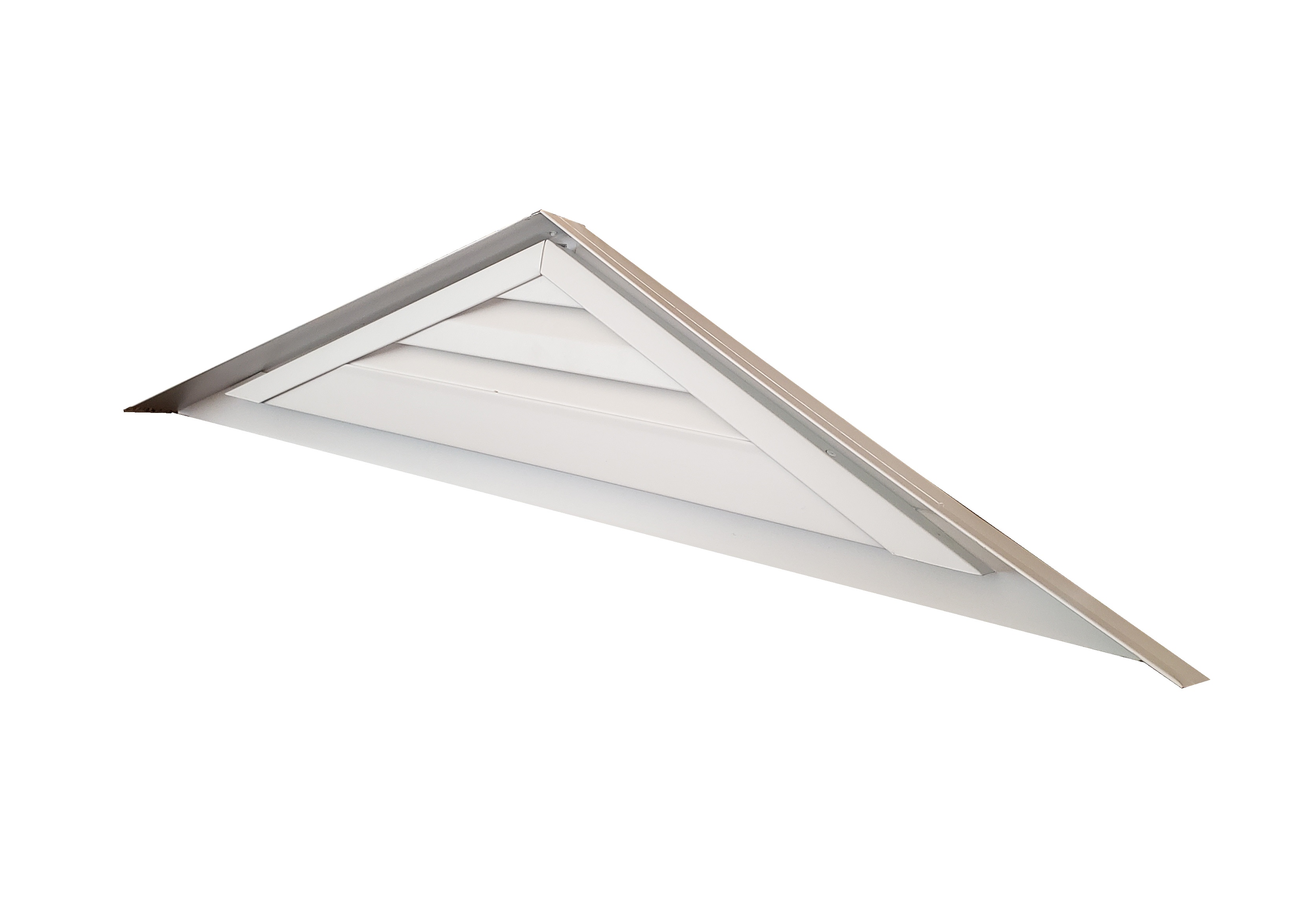

If you could see inside the J channel pockets on the bottom and top, the vent size is 24 x 6 x 1.

Buy

The J channel around the vent is set for soffit or cornice on the top.

It is set for vinyl siding or wood siding on the bottom.

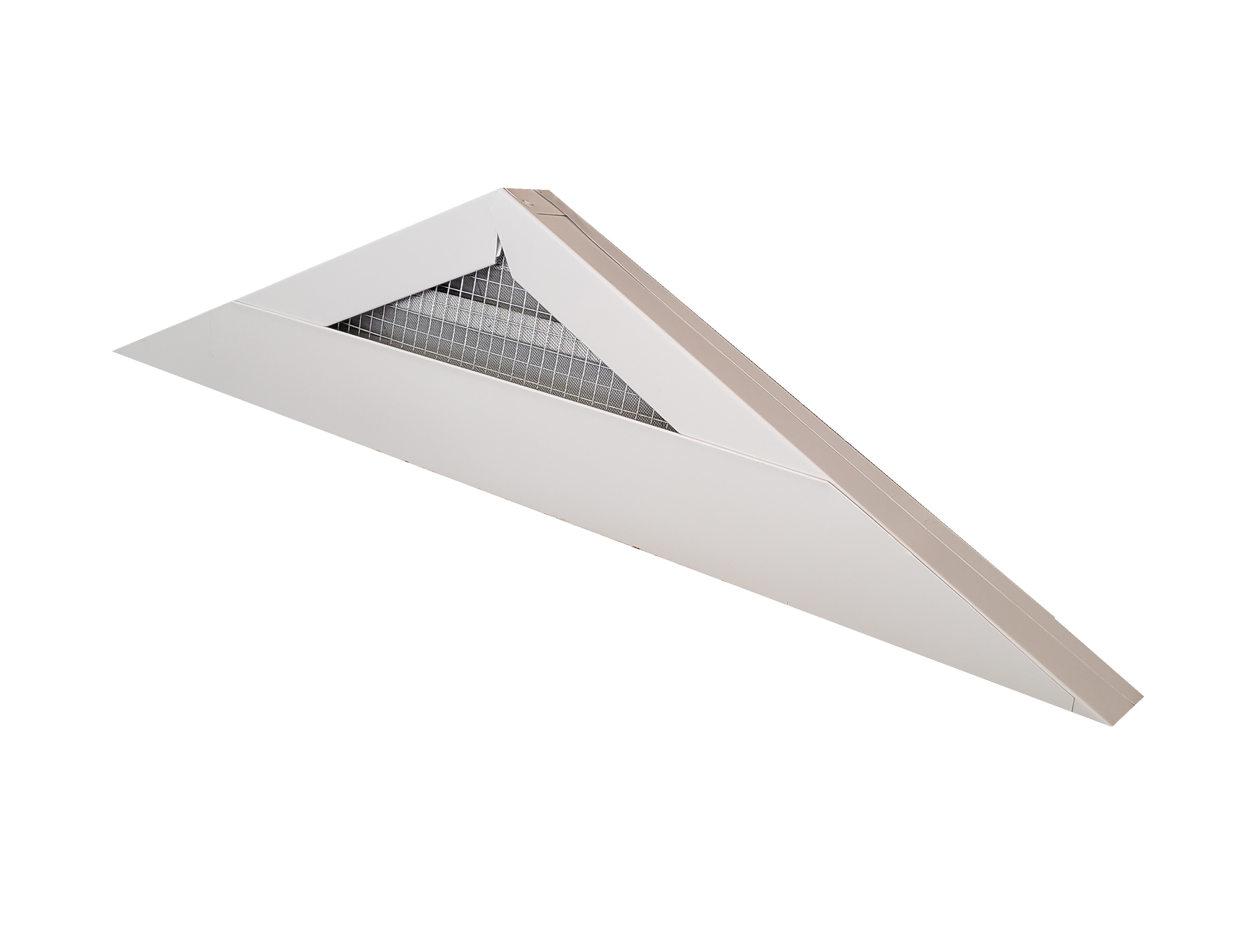

Locking the louver ends on a rail system ensures the vent holds it shape well and adds strength to the louvers.

Also, adds life to the enite vent.

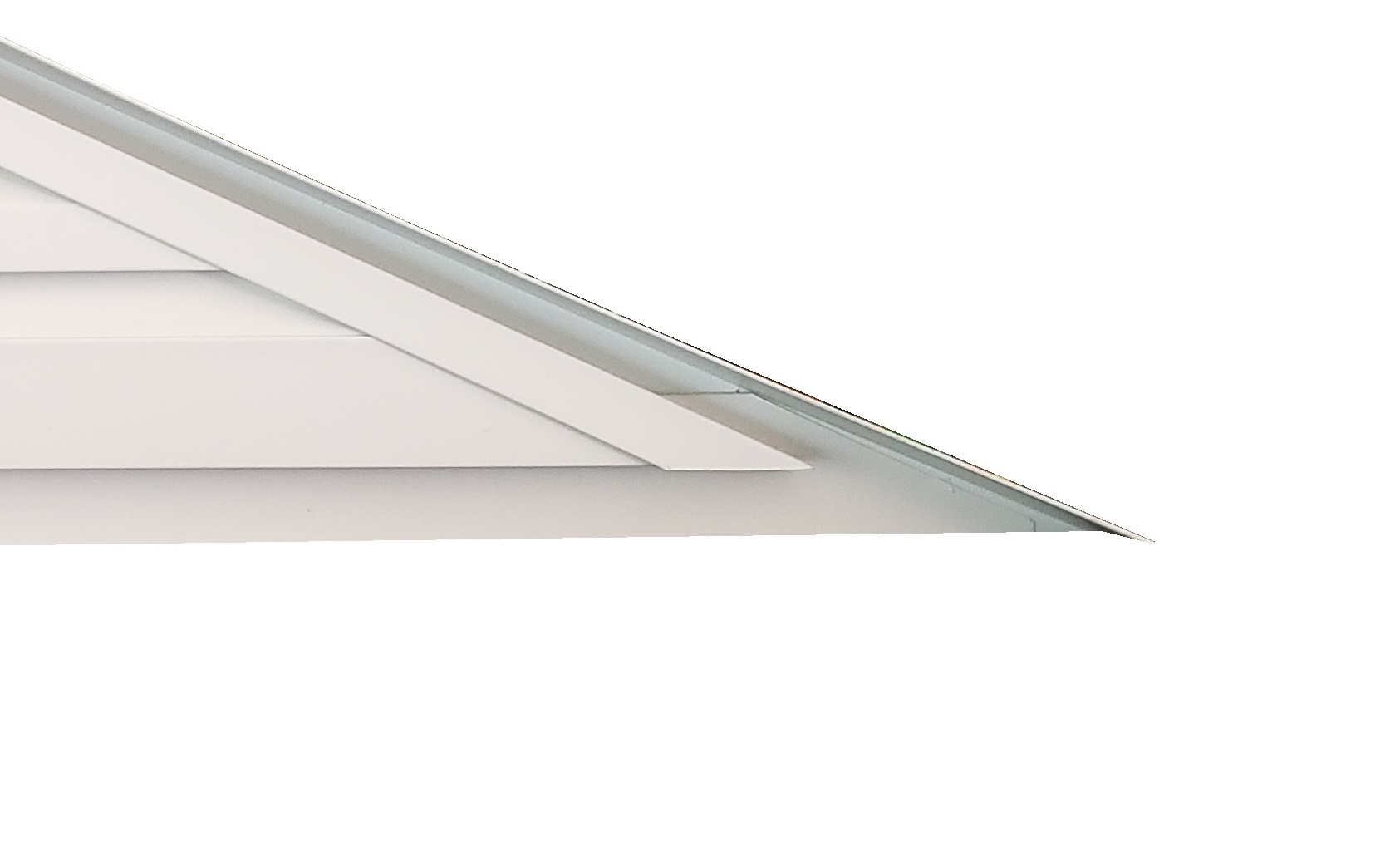

Looking at the corner closer…

Shows how the J channel is turned out on the top and down on the bottom.

Why order a gable vent with J Channel?

It saves so much time that the framer doesn't need to add framing to this area to lower the soffit to the fascia level.

The vinyl siding contractor only needs install the vent and the siding.

Applying and turning J channel can waste so much time.

The Reinforced Triangular Custom Exhaust Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	24	6	23.5	5.5	18
tip to tip of vent	24	6	24	6	22
tip to tip including flange	24	6	21	3	4

Depth: 1 inch vent wall

Finish Color Options: All Sheet Metal Colors

Nail Flange: J Channel

Composition: Aluminum Sheet Metal

Screen Options: Aluminum, Solid aluminum back, Vinyl screen, 1/2 inch wired cloth

Buy 24 X 6 X 1 Triangle vents in this enormous selection of 24 x 6 garret louver exhaust vents with a J channel and a 1 inch depth

The side angles of the triangle vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 24x6x1trlvjfss

Duct the hot air from the attic using a real gable vent.

Eden Vermont 05652 provides a place for these vents to call home.

What else?

Call, text or email us for a personal answer.

901.281.2887 contactus@onyxxteriors.com
