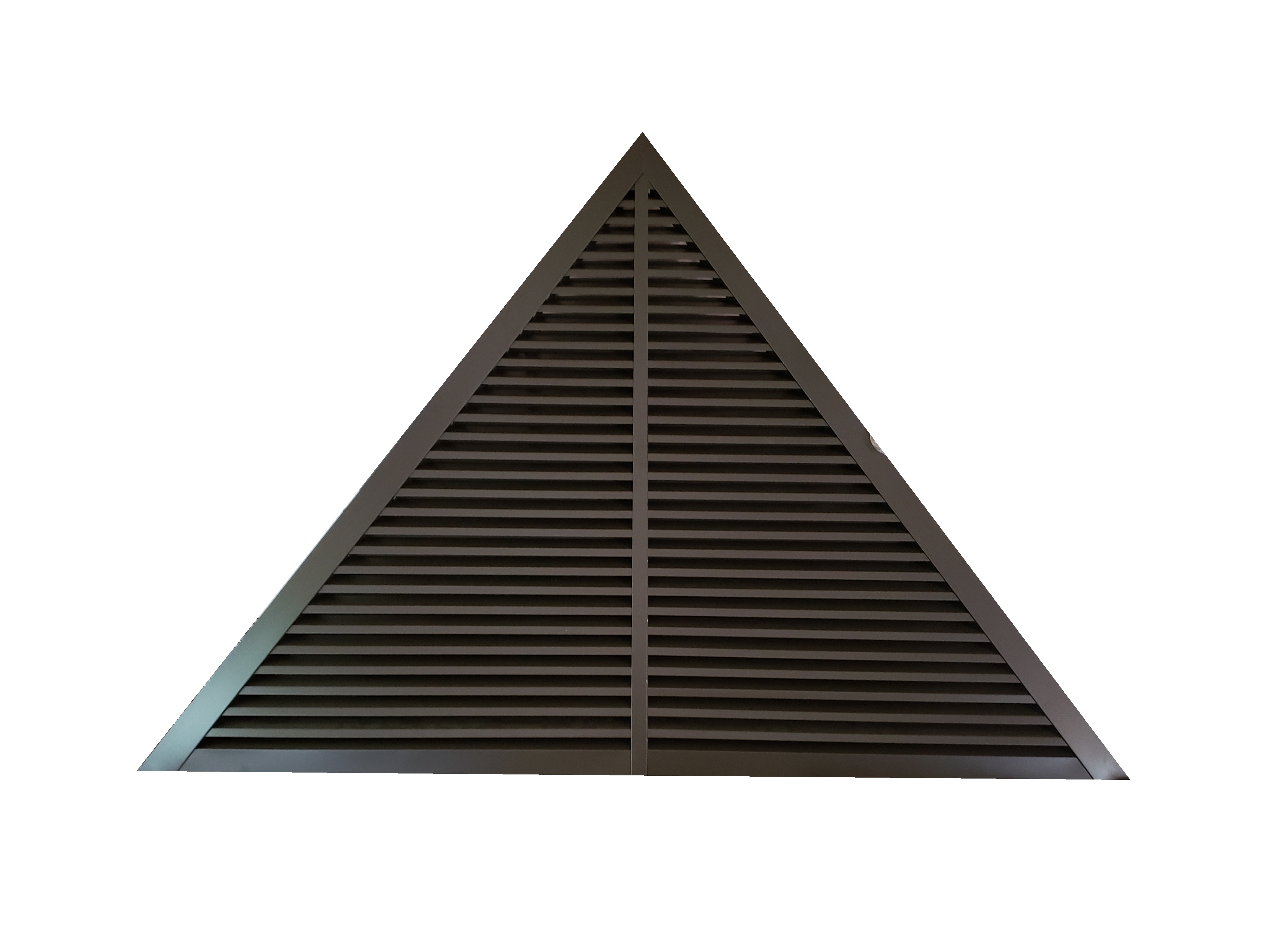

108 X 78 X 2 Triangle Front Flange Crawlspace Air Vent

17 pitch triangle attic vent.

Or specifically 17.3 roof pitch by the measures.

108 wide and 78 height.

Procure a

Triangle crawlspace air vents

Made in two pieces since freight doesn't like products this large.

The G8 Bronze aluminum has a nice brown glow.

The center mull also has an alignment hook on the bottom to ensure the louvers align from one vent half to the other.

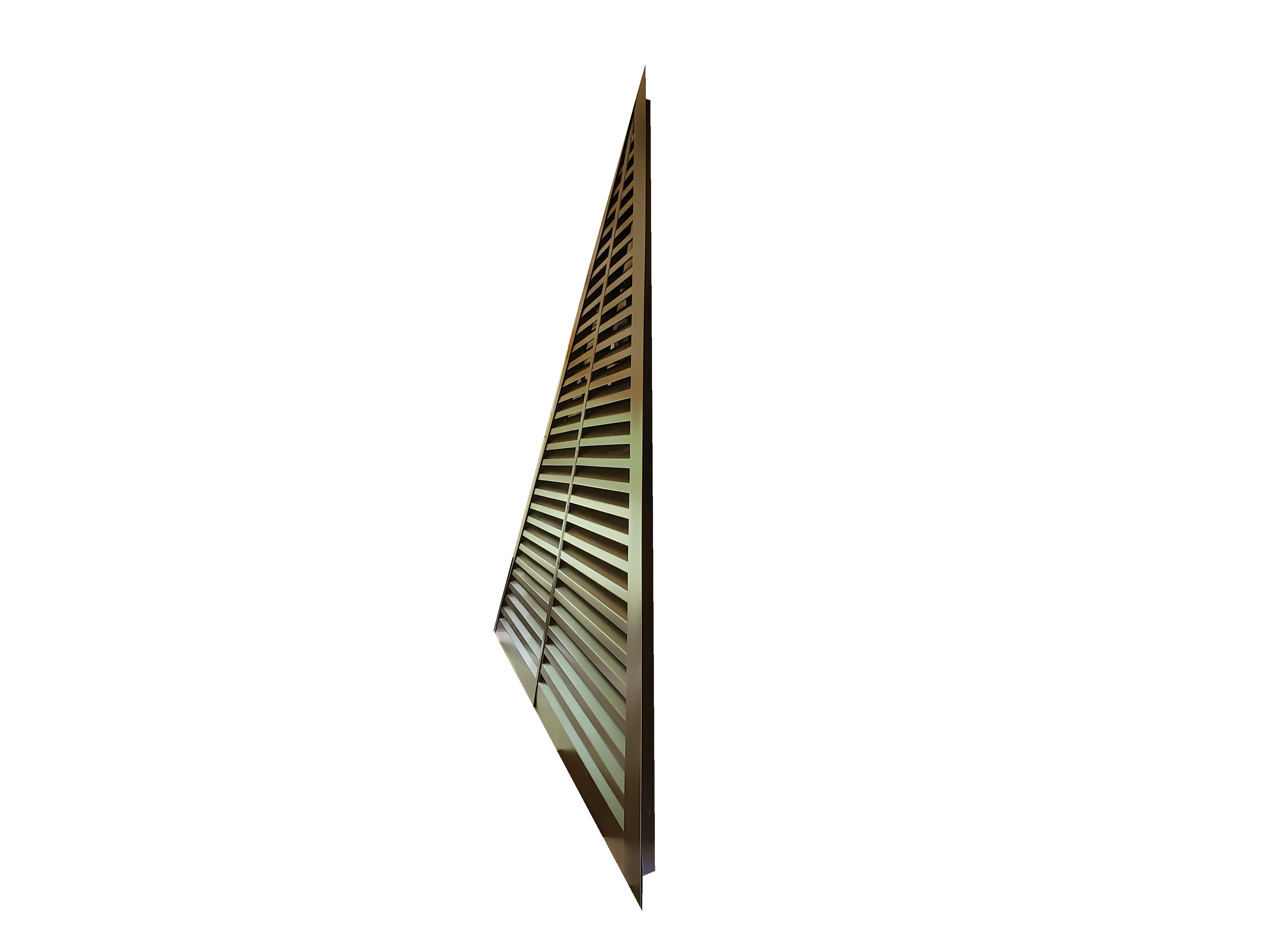

The custom nail fin is a full 2 inch coverage.

And installing with screws allows for the vent to be easily removed for attic entry later.

Reinforced Aluminum Three Sided Aerated Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	108	78	107.5	77.5	1991
tip to tip of vent	108	78	108	78	2014
tip to tip including flange	108	78	105	75	1879

Depth: 2 inch vent wall

Colors: Any .019 Trim Coil

Nail Fin Type: Front Flange

Composite: 100% Aluminum Metal

Screen: Aluminum, Non functional, Half inch wired mesh, Black vinyl screen

Procure a 108 X 78 X 2 Triangle vent for accurate 108 x 78 crawlspace air vents with a front flange and a 2 inch depth

The angles of the triangle aluminum louver vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 108x78x2trlvffss

We ask many questions to make sure you get the best matched aluminum vent.

Contractor installed in Elgin Illinois 60123
