Item # ctlv
Lead time: apx 2 weeks
Collection: Signature Series
Department: Custom Cathedral Vents
Shape: Gable Top Rectangle
Material: .019 aluminum trim coil / sheet metal
Part options: height, width, depth, flange, color, vented

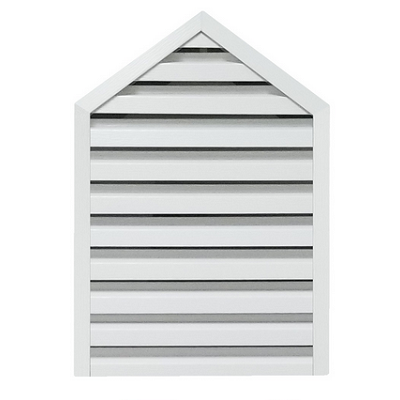

100% customizable louver Cathedral attic wall vent or roof vent.
Cathedral louver gable vents are customized and manufactured upon ordering to match the style and type of install of the project. By making these attic vents so custom and specific, most installs take less than 5 minutes. No excess cutting, trimming or filling in the opening for the vent to fit.
All louver vents are manufactured with the 4-fold louvers locking onto a rail for extended life and strength of the vent. No facing or exposed pop rivets to pop out. Louvers stand straight and true.
Any custom items forgotten, enter it in the comments box.
Measuring is easier than most think.
All that is needed is the width and the height.

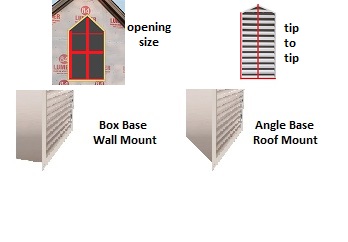

How to Measure
"Opening size" just means the measures were of the hole in the wall. For this, we will reduce your measures 1/4 inch dimensionally to ensure a good fit. Do not deduct measures yourself. They will not be accurate.
"Tip to tip" is if the vent size itself is to be the measures ordered with no reductions.
A "boxed base" is squared and boxed for a wall install.
The "roof pitch angle base" is in reference to the vent sitting directly onto the roof metal or shingles. For this, type the pitch into the comments box and we will pre-set the base at that angle.
The depth of the vent is as shown in the changing pictures. So, just how thick the vent will be or how far it will protrude into the gable wall.
Offering all 4 mounting styles.
If the vent will be painted or is matching a painted home color, enter primed white into the "color" box. Otherwise, enter the trim coil manufacturer and the color name and the finish.
Aluminum screen for the back of the vent is a bug screen for crawling and flying insects.
The grasshoppers and wasps can chew through the fiberglass screen.
The non vented has a solid metal back to block all air and water so it is decorative only.
And the wire mesh option automatically comes with aluminum screen to provide both bug and larger 4 legged critter protection (squirrels, raccoons, roof rats).
Shipping small products will be via UPS Ground or UPS Oversize Ground in wooden crates to ensure the product safety during shipping.
Larger aluminum products ship with T Fore Freight (formerly UPS Freight). These too are packaged in wooden crates. Freight items require a commercial delivery address or will be delivered to the nearest freight hub for individual pick up. Residential delivery is not available to all addresses.
If any product ordered is over 48 inches, call 901.281.2887 to find out if it will ship ground or freight.
Most items ship within 2 weeks. But due to some current shipping delays, always order products a month in advance to ensure delivery before needed. Stocking many of the commonly ordered colors speeds up the lead time drastically, but not on all.
