Item # tslv
Lead time: apx 3 to 6 weeks
Collection: Signature Series
Department: Custom Tombstone Louvered Vents
Shape: Square base with arched top
Material: .019 aluminum trim coil / sheet metal
Part options: height, width, depth, flange, color, vented

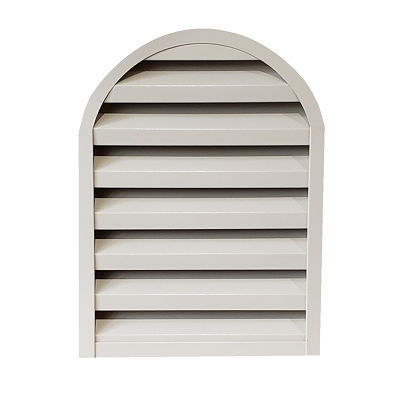

100% customizable louver tombstone gable vent.
Use our free Net Free Air Calculator to calculate the apx net free airflow of your Tombstone louvered vent before ordering.
How to Calculate Net Free Area
Measuring is easier than most think.
This vent consists of a half round, arched top and a square bottom. But is measured as one unit.
The width and height are of the widest point and the tallest right up the center.
The side leg height is from the base to where the arch begins.

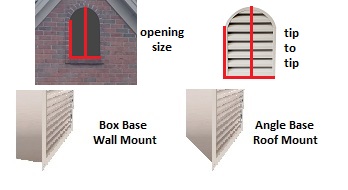

How to Measure
"Opening size" just means the measures were of the vent hole in the wall. For this, we will reduce your measures 1/4 inch dimensionally to ensure a good fit. Do not deduct measures yourself. They will not be accurate.
"Tip to tip" is if the vent size itself is to be the measures ordered with no reductions.
A "boxed base" is squared and boxed for a wall install.
The "roof pitch angle base" is in reference to the vent sitting directly onto the roof metal or shingles. For this, type the pitch into the comments box and we will pre-set the base at that angle.
The depth of the Tombstone vent is as shown in the changing pictures. So, just how thick the vent will be or how far it will protrude into the gable wall.
Offering all 4 flange mounting styles.
If the Tombstone vent will be painted or is matching a painted home color, enter primed white into the "color" box. Otherwise, enter the trim coil manufacturer and the color name and the finish.
Aluminum screen for the back of the vent is a bug screen for crawling and flying insects.
The grasshoppers and wasps can chew through the fiberglass screen.
The non vented has a solid metal back to block all air and water so it is decorative only.
And the half inch wire mesh option automatically comes with aluminum screen to provide both bug and larger 4 legged critter protection (squirrels, raccoons, roof rats, etc.).
Shipping small products will be via UPS Ground or UPS Oversize Ground in wooden crates to ensure the product safety during shipping.
Larger aluminum products ship with SAIA Freight. These too are packaged in wooden crates. Freight items require a commercial delivery address or will be delivered to the nearest freight hub for individual pick up. Residential delivery is not available to all addresses.
If any product ordered is over 48 inches, call 901.281.2887 to find out if it will ship ground or freight.
Most items ship within 3 weeks. But due to some current shipping delays, always order products a month or more in advance to ensure delivery before needed. Stocking many of the commonly ordered colors speeds up the lead time drastically, but not on all.
