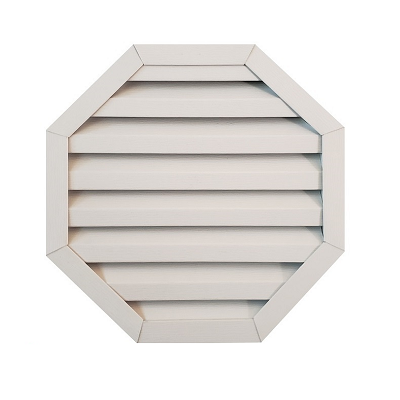

Octagon Louver Vent
sku: oclv (crate/shipping included)


Octagon Louver Vent

Item # oclv
Lead time: apx 3 to 6 weeks
Collection: Signature Series
Department: Custom Octagon Vents
Shape: Octagonal / Stop Sign
Material: .019 aluminum trim coil / sheet metal
Part options: height, width, depth, flange, color, vented

100% customizable louver octagon gable wall vent or roof vent.

Use our free Net Free Air Calculator to calculate the apx net free airflow of your octagon louvered vent before ordering.

How to Calculate Net Free Area

Eight sided louver gable vents are customized and manufactured upon ordering to match the style and type of install of the project. By making these attic vents so custom and specific, most installs take less than 5 minutes. No excess cutting, trimming or filling in the opening for the vent to fit.

All louver vents are manufactured with the 4-fold louvers locking onto a rail for extended life and strength of the vent. No facing or exposed pop rivets to pop out. Louvers stand straight and true.


Any custom items forgotten, enter it in the comments box.

Quick Reference for Octagon Louver Vents

Measuring is easier than most think.

All that is needed is the width and the height.

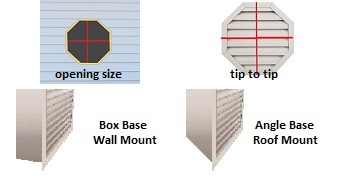

How to Measure

"Opening size" just means the measures were of the hole in the wall. For this, we will reduce your measures 1/4 inch dimensionally to ensure a good fit. Do not deduct measures yourself. They will not be accurate.

"Tip to tip" is if the vent size itself is to be the measures ordered with no reductions.

A "boxed base" is squared and boxed for a wall install.

The "roof pitch angle base" is in reference to the vent sitting directly onto the roof metal or shingles. For this, type the pitch into the comments box and we will pre-set the base at that angle.

Vent Depth

The depth of the vent is as shown in the changing pictures. So, just how thick the vent will be or how far it will protrude into the gable wall.

Flange / Nail Fin

Offering all 4 mounting styles.


If the octagonal vent will be painted or is matching a painted home color, enter primed white into the "color" box. Otherwise, enter the trim coil manufacturer and the color name and the finish.


Aluminum screen for the back of the vent is a bug screen for crawling and flying insects.

The grasshoppers and wasps can chew through the fiberglass screen.

The non vented has a solid metal back to block all air and water so it is decorative only.

And the wire mesh option automatically comes with aluminum screen to provide both bug and larger 4 legged critter protection (squirrels, raccoons, roof rats).


Shipping small products will be via UPS Ground or UPS Oversize Ground in wooden crates to ensure the product safety during shipping.

Larger aluminum products ship with SAIA Freight. These too are packaged in wooden crates. Freight items require a commercial delivery address or will be delivered to the nearest freight hub for individual pick up. Residential delivery is not available to all addresses.

If any product ordered is over 48 inches, call 901.281.2887 to find out if it will ship ground or freight.

Most items ship within 3 weeks. But due to some current shipping delays, always order products a month or more in advance to ensure delivery before needed. Stocking many of the commonly ordered colors speeds up the lead time drastically, but not on all.
