Octagonal louver vents are a good break from the standard square and triangle vents.
They bring the eye to focus on the home's beauty more than it's imperfections.
Obtain a
Octagon aerated vents
"
At 17 x 17 on the vent, the trim measures 20 x 20.

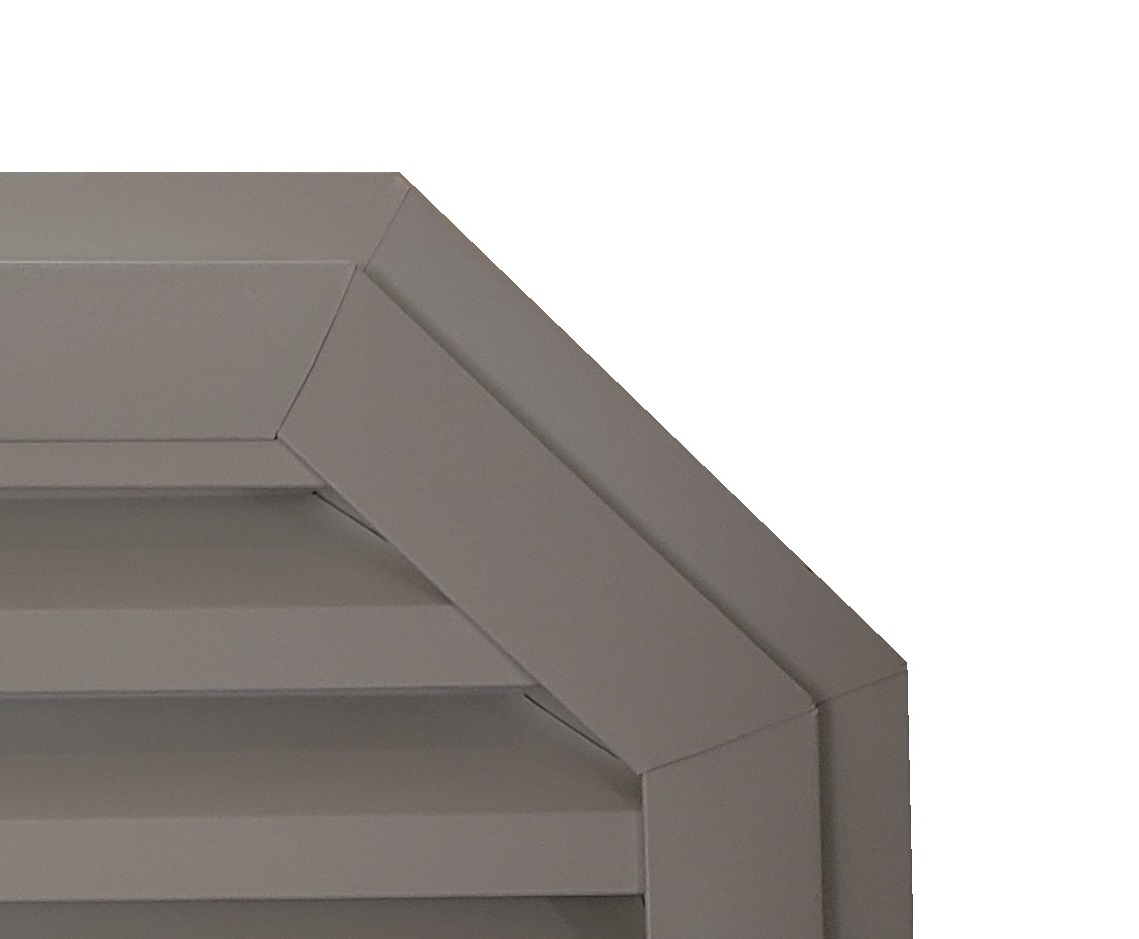

Corners are jointed and locked into place.
The Variform Flint color may seem dark, but adds to the alure.

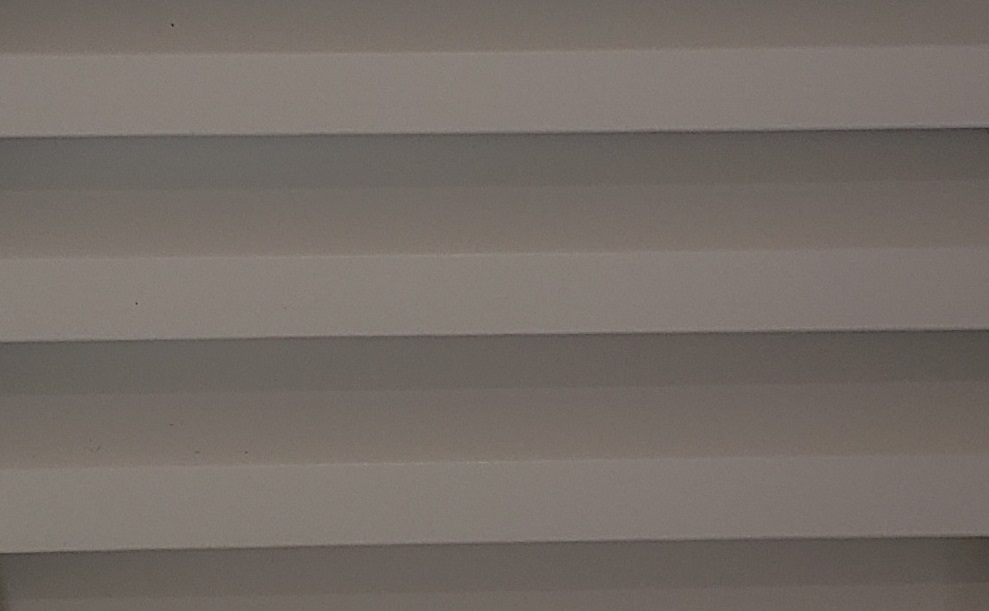

Slats are spaced 1 1/2" on this 2 inch deep vent.

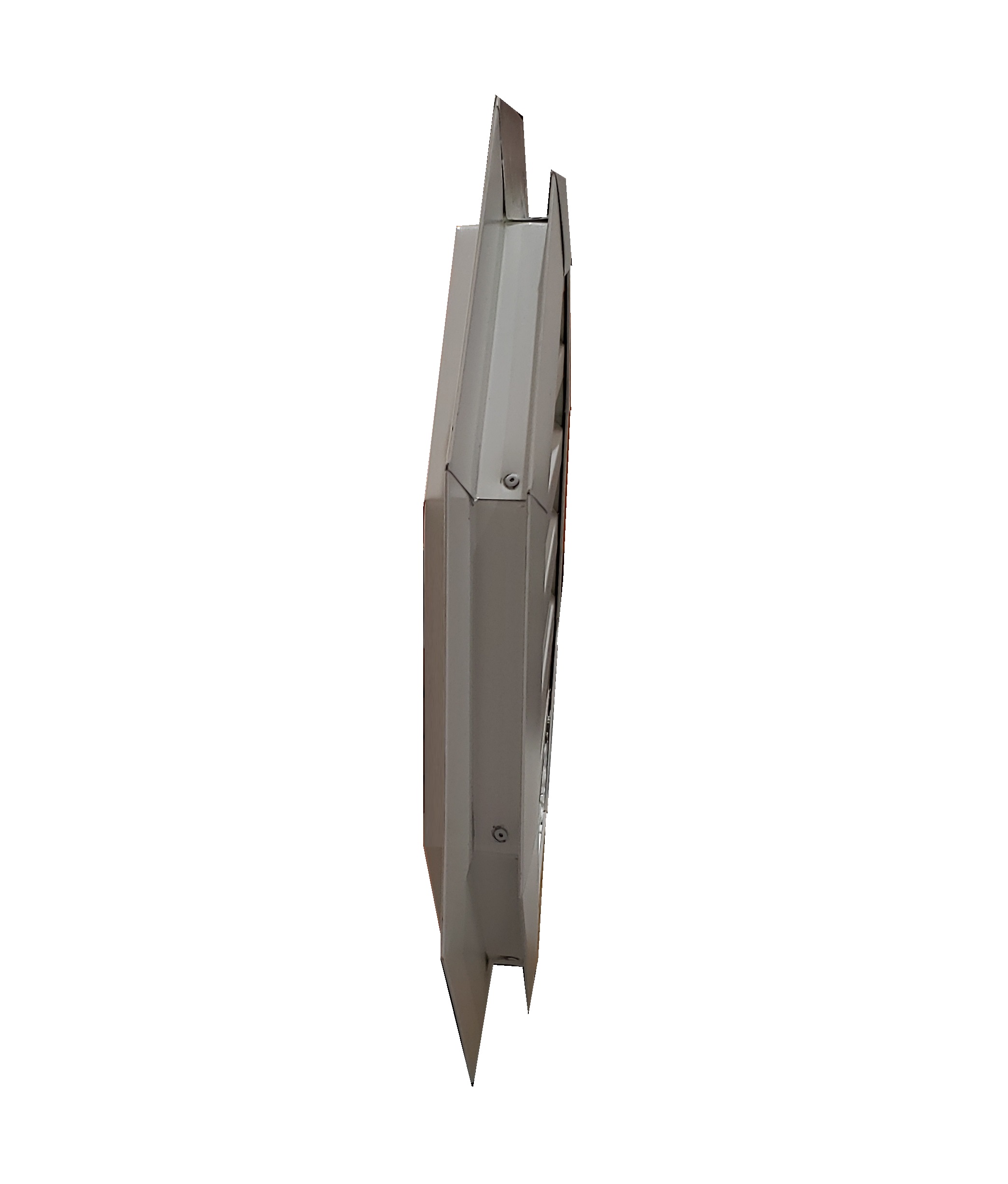

The J channel was set on the face of the vent at 1".
Then, an inch of the vent protrudes from the back and will enter the wall.
Obtain a 17 X 17 X 2 Octagon vent for the correct 17 x 17 aerated vents with a J channel and a 2 inch depth
17 x 17 x 2 octagon J channel vent Here we go. A louvered vent shaped like an octagon. Measuring has to be hard, right? No. All we need is the width and height to calculate the rest of the angles. 17x17x2oclvjfss
Included:
Stronger aluminum, metal louvers
Reinforced rail system frame
Doubled up nailer
Baked on or PVC finish coating
Options of screening or not vented
Delivered to Elkin Arkansas 72727
Corners are jointed and locked into place.
The Variform Flint color may seem dark, but adds to the alure.
Slats are spaced 1 1/2" on this 2 inch deep vent.
The J channel was set on the face of the vent at 1".
Then, an inch of the vent protrudes from the back and will enter the wall.
A Reinforced Aluminum Octagon Intake Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 17 | 17 | 16.5 | 16.5 | 89 | |
| tip to tip of vent | 17 | 17 | 17 | 17 | 95 | |
| tip to tip including flange | 17 | 17 | 14 | 14 | 61 |
Depth: 2 inch
Color Options: All .019 Trim Coil Colors
Type of Nail Fin: J Channel
Material: 100% Aluminum Sheet Metal
Screen Options: Aluminum, Not vented, Hardware cloth, Black vinyl screening
Included:
Stronger aluminum, metal louvers
Reinforced rail system frame
Doubled up nailer
Baked on or PVC finish coating
Options of screening or not vented
Delivered to Elkin Arkansas 72727
What else?
