20 X 40 X 4 Square J Channel Louvered Custom Exhaust Vent

Working with a common 4 inch deep vent gives a choice of where the flange will be located.

This J channel was not set on the face or the back.

There is a full 3 1/2" of vent wall to work with.

Shop

Square louvered custom exhaust vents

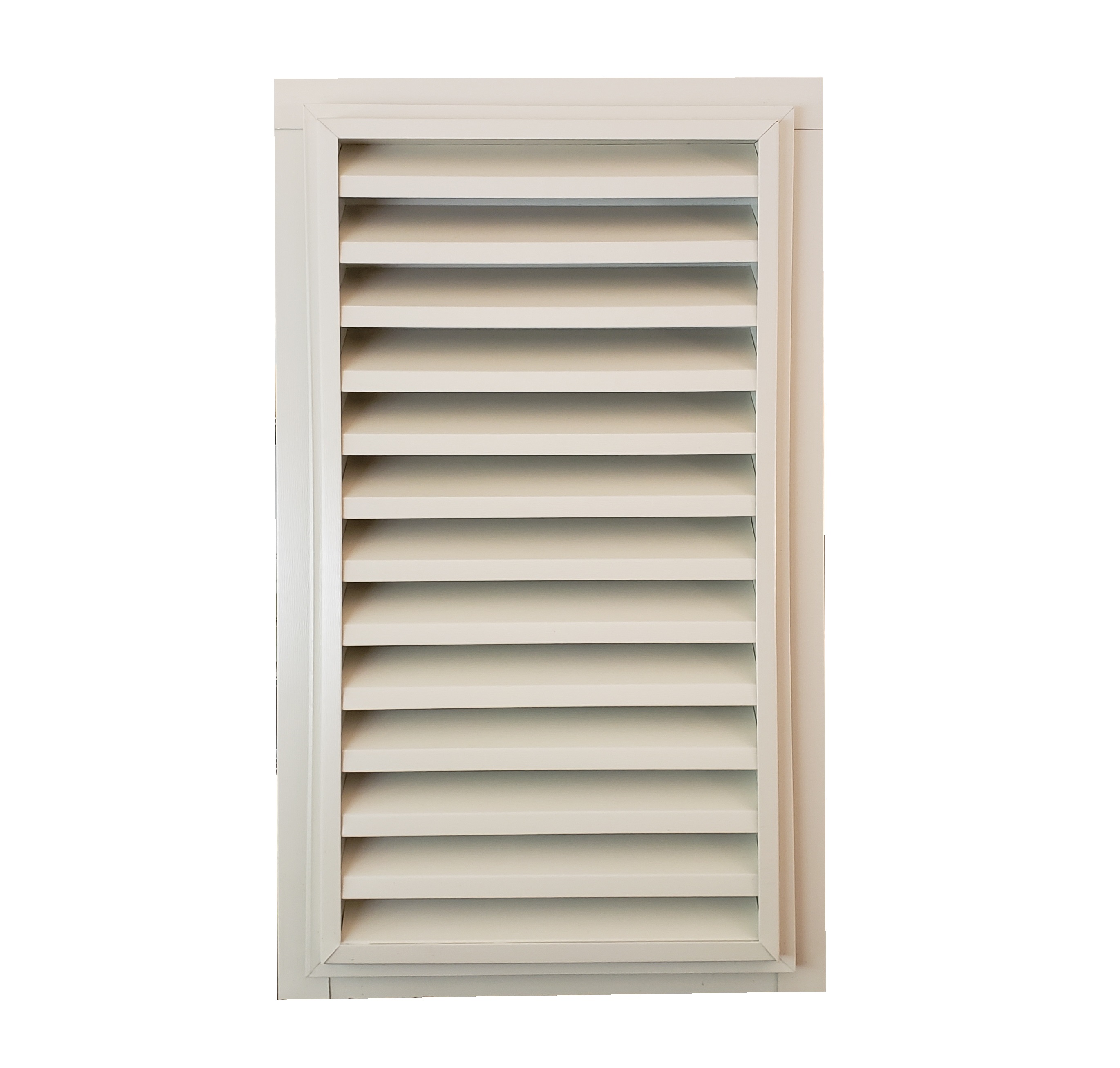

At 20 x 40 inches on the vent face, the louvers are set at 2 inches apart.

This gives almost no air restriction.

The face of the vent is trimmed neatly with an inch border.

Then the J channel is added and recessed adding another inch of trim.

The J channel trim face will cover the siding edges.

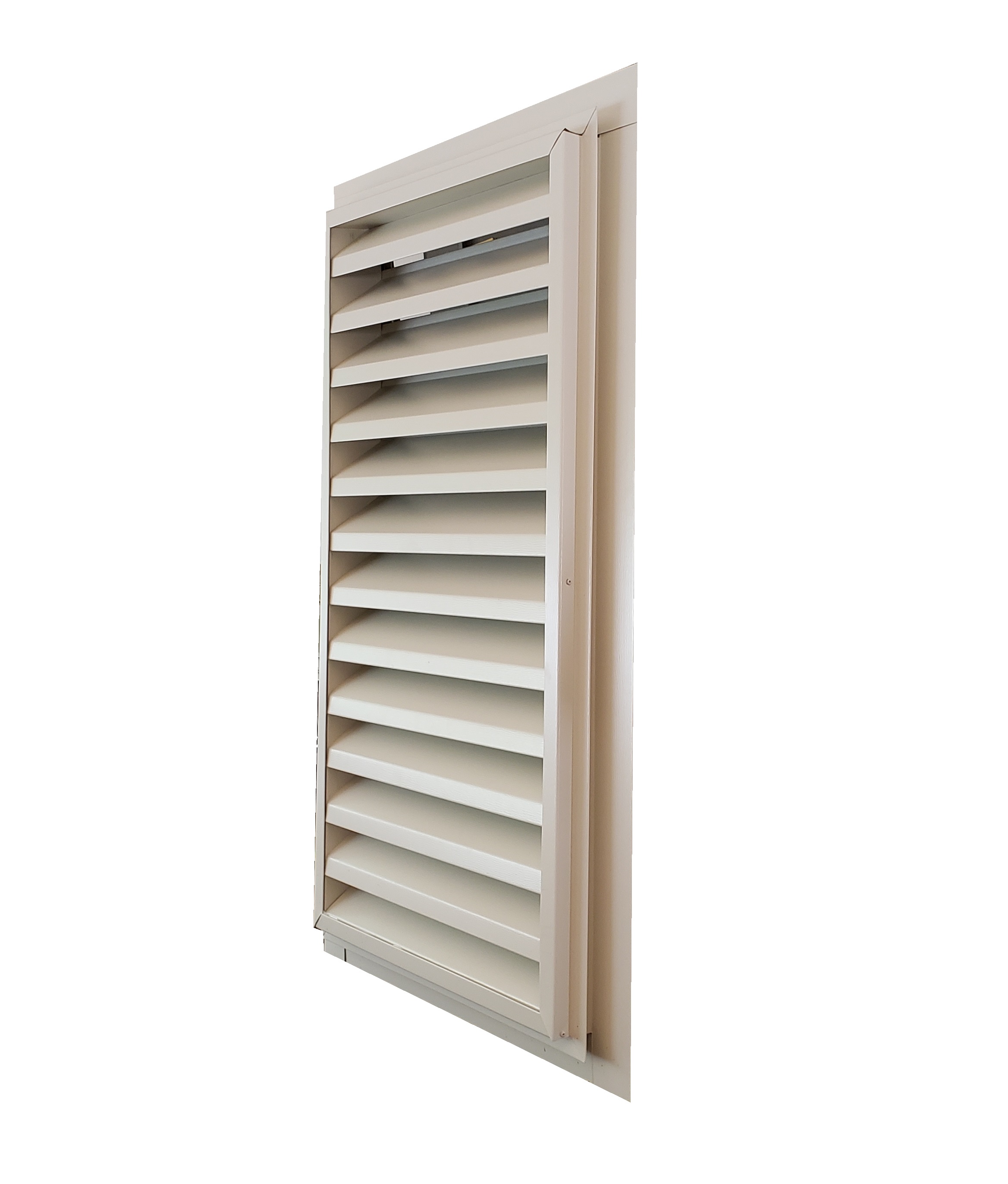

Here the recess of the j channel is an inch back from the face.

This allows the vent to have a real 3D appearance.

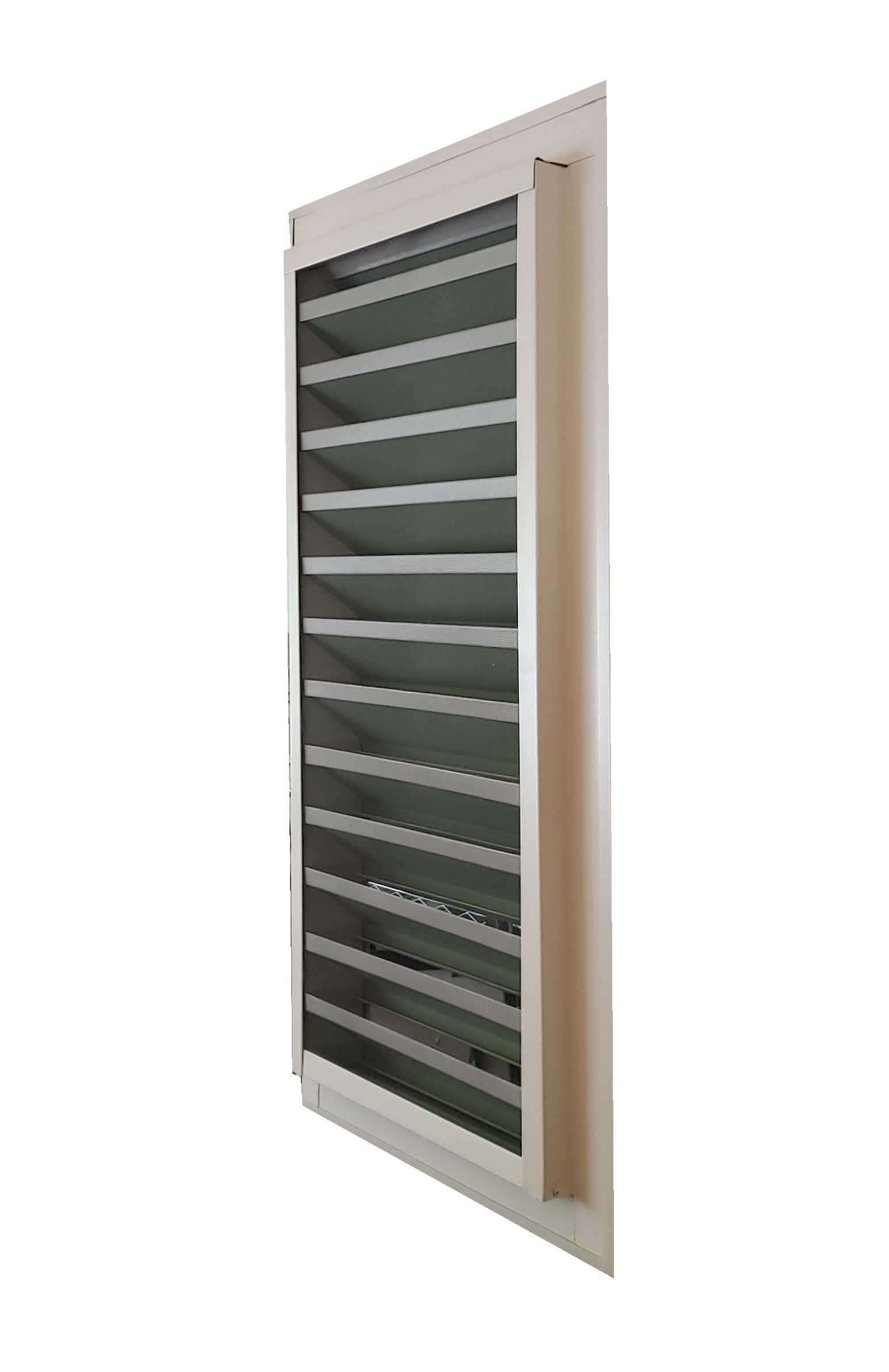

From the back corner, see the 1 1/2 of vent extending behind the J channel flange.

The vent will enter the gable wall at 1 1/2 inches with 1 inch for the siding and 1 inch face step down.

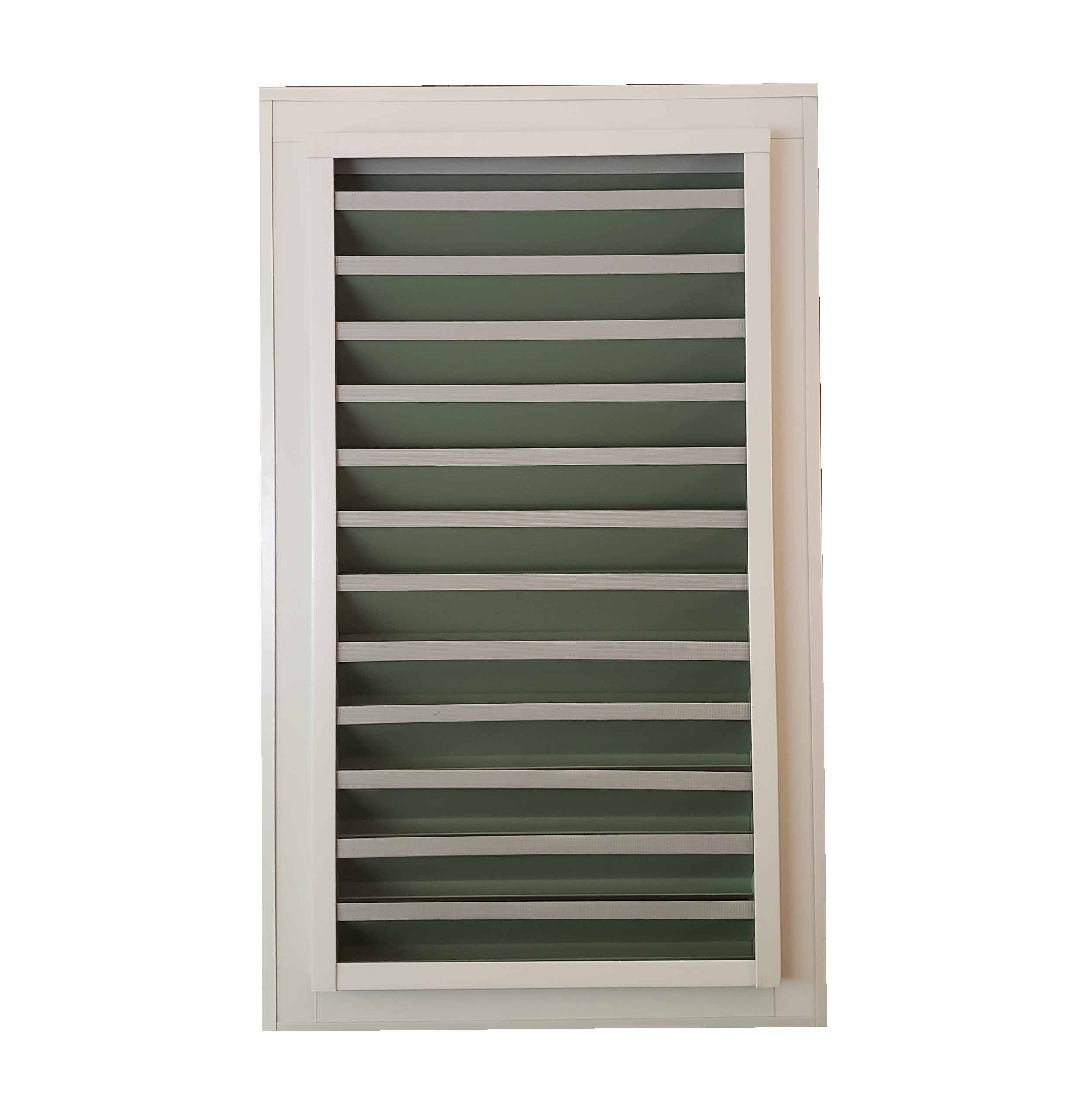

Screened with an aluminum screen and made from Variform Natural Almond coil, this bad boy is ready to stand the tests of time.

The Reinforced Metal Square Custom Gable Exhaust Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	20	40	19.5	39.5	433
tip to tip of vent	20	40	20	40	451
tip to tip including flange	20	40	17	37	346

Depth: 3 1/2 inch thick

Color Coating Options: All Aluminum Coil

Flange: J Channel

Composed Of: 100% Aluminum Metal

Functioning: Aluminum, Vinyl screening, Solid aluminum back, Aluminum screening

Shop 20 X 40 X 4 Square vents for the most durable 20 x 40 louvered custom exhaust vents with a J channel and a 3 1/2 inch depth

Put any chalked square vinyl vent in the grave by replacing it with a real aluminum vent for a lifetime of beauty. 20x40x4sqlvjfss

It is impossible to warehouse over 10 million vent shapes and sizes. And don't forget the thousands of colors we offer. Be assured, your order will arrive in just 1 to 2 weeks with your customizations.
