24 X 10 X 1 Triangle J Channel Metal Garret Exhaust Vent

24 x 10 triangular louver vents are small and even appear so.

The actual vent size is 24 wide and 10 inches tall.

Adding trim such as J channel beefs it up a little.

This adds another inch around each side of the face of the vent.

0

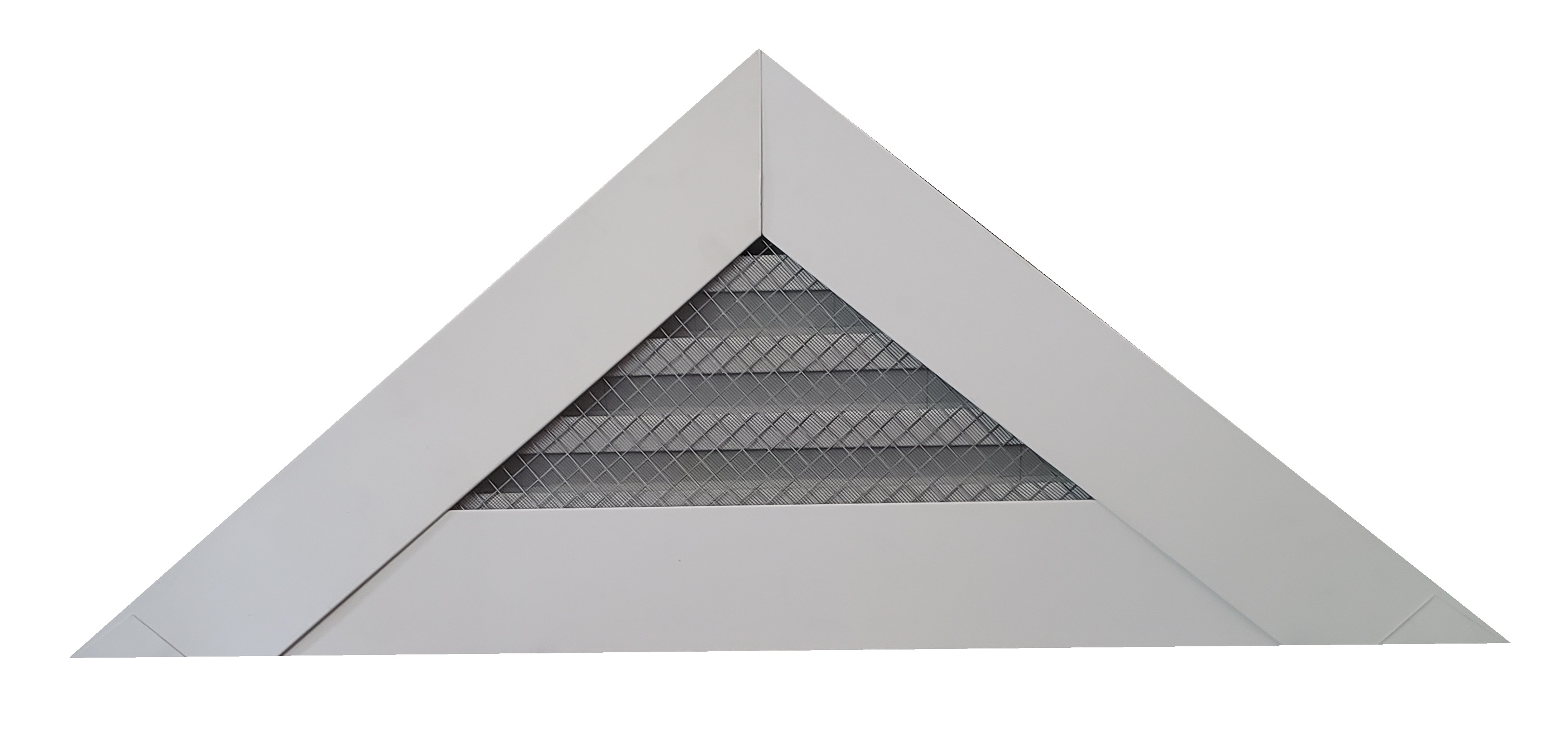

Triangle metal garret exhaust vents

An inch of the face trim covers the louver edges and vent framing where the rail system is neatly hidden.

Then it extends past the vent by an inch.

So it wields a full 2 inch trim face that will be visible after install.

This J channel encompasses the entire surrounding of this triangle vent.

If needed J channel on the top but not the bottom, just specify in the comments box.

Even if needed is J channel on the bottom and nothing on the top.

As a full custom sheet metal shop manufacturing gable vents, we take into consideration all parts and pieces you may need to make your install faster and easier.

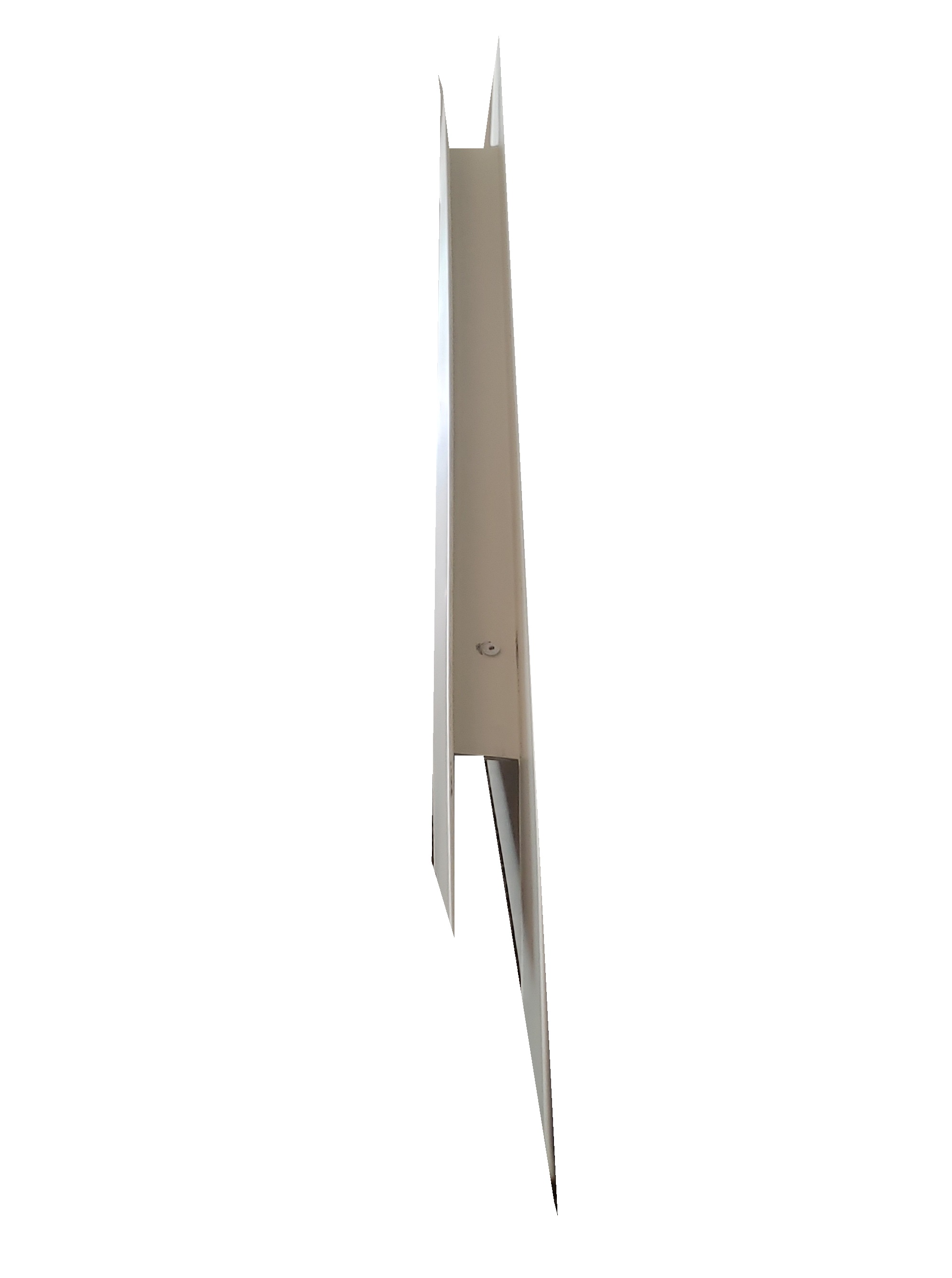

The J channel pocket is fully open and an inch deep for good siding end coverage.

This openness makes for easier vinyl siding cuts and locks.

Squirrels, racoons, roof rats, snakes, birds, bats, cats, and many more 4 legged pests can be prevented from entering an attic with hardware cloth also called 1/2 inch wire mesh.

Most think a nice warm attic is what draws pests into a loft.

That is a big part.

But why do they chew on wires?

Because they are actually tasty just like you chewing bubble gum.

The sheathing of the wires and coatings are made of peanut oil.

Any where the wires emit enough of this smell, tells them this is going to be a tasty treat.

So, why do we still install aluminum bug screen with the wire mesh?

Smaller pests such as wasps, grasshoppers, bees, etc. still need stopped.

Believe it or not, wasps and grasshoppers will chew through vinyl or fiberglass screens.

Better Triangle Exhaust Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	24	10	23.5	9.5	40
tip to tip of vent	24	10	24	10	44
tip to tip including flange	24	10	21	7	23

Depth: 1 inch deep

Color Coatings: All Sheet Metal

Nail Flange: J Channel

Fabricated Of: All Aluminum Sheet Metal

Screen: Aluminum, Solid metal back, Black aluminum, Vinyl screen on back

24 X 10 X 1 Triangle for the best fitting 24 x 10 metal garret exhaust vents with a J channel and a 1 inch depth

The upper angles of the triangular aluminum vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 24x10x1trlvjfss

A needle in a haystack might be easier to locate than the correct gable vent. But, somehow, you unearthed it.

Cromwell Connecticut 06416 is where these triangular vents will call home for many, many years.
