24 X 7 X 2 Triangle No Flange Metal Louvre Vent

No flange.

White, ready for painting.

7/12 pitch.

0

Too tiny for venting.

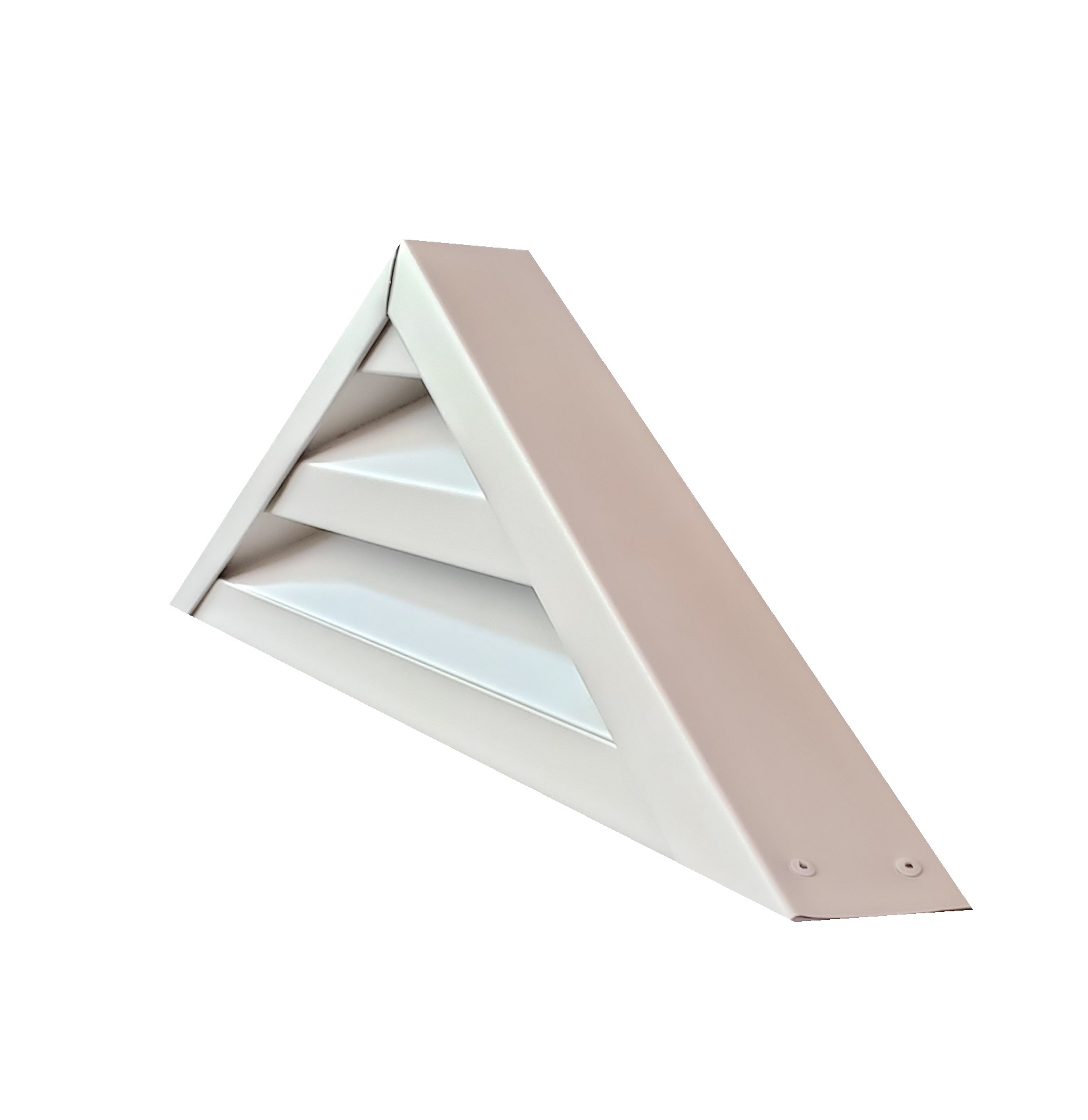

Here the 2 inch depth is obvious.

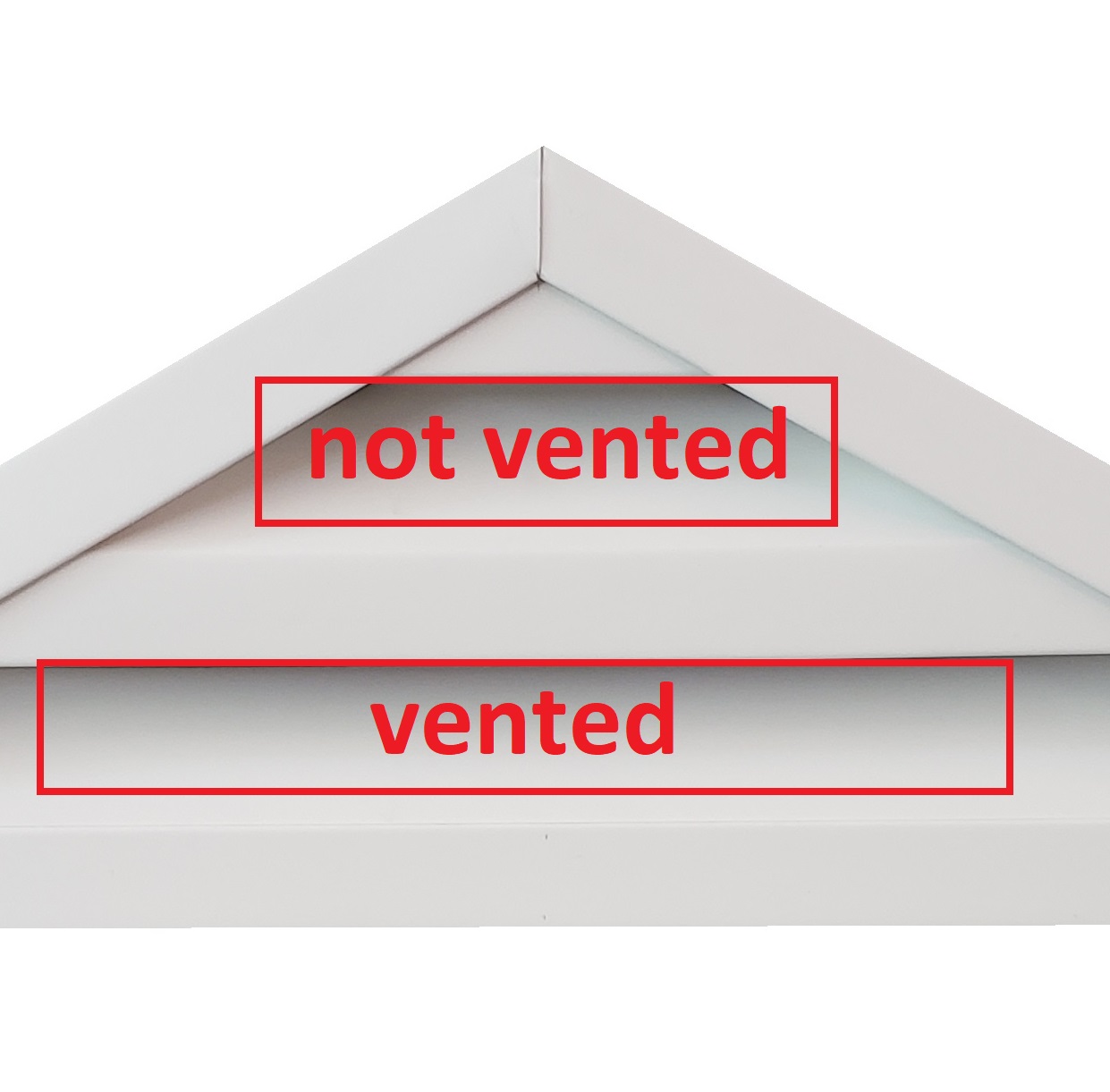

There is only 1 slat vented on this due to the rise of the louvers in the rear from the front to disperse water back out of the attic.

So, this vent would not really be called a functional vent.

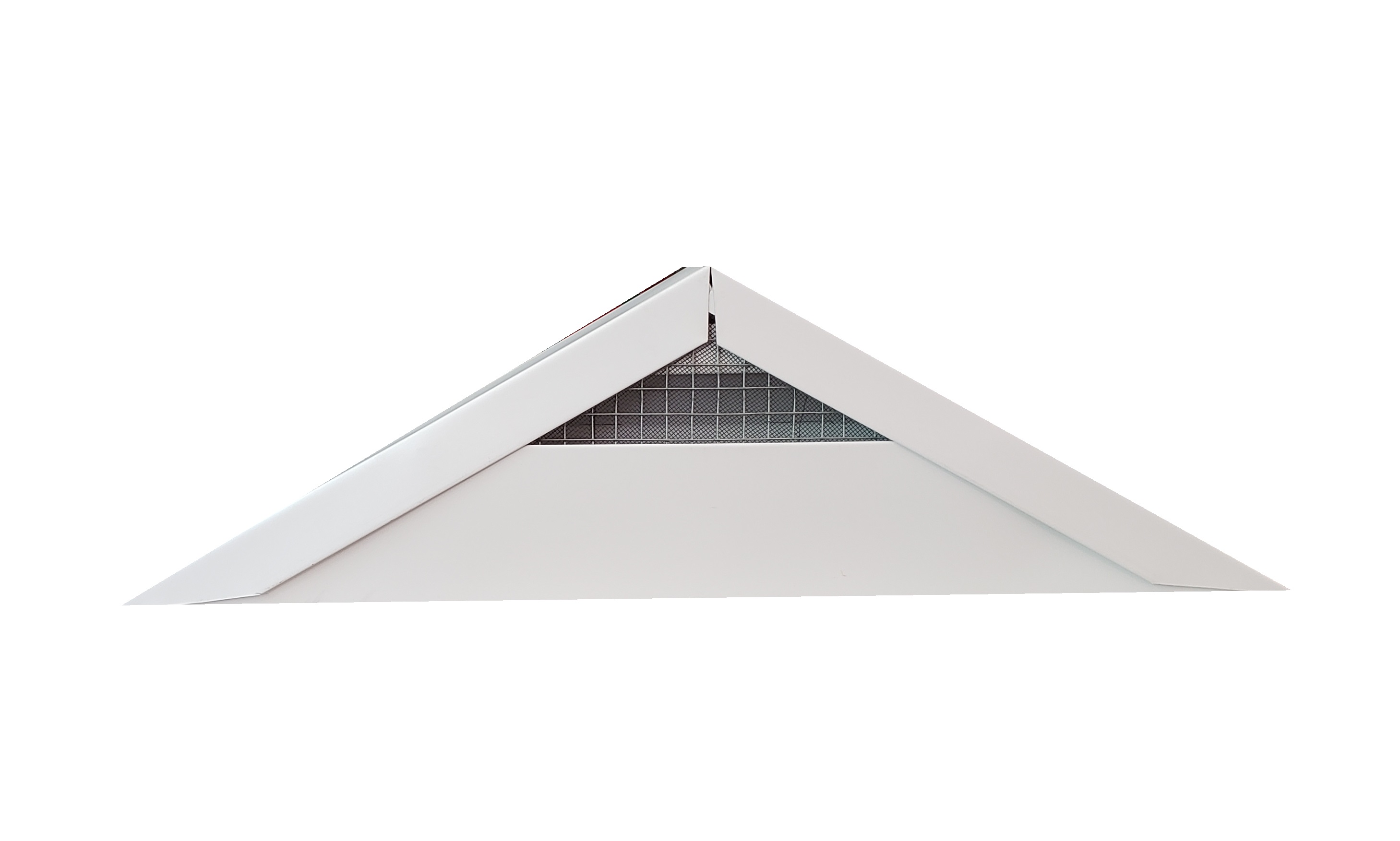

From the rear, the screen is visible as well as the almost non existent vent slat.

The Reinforced Triangular Metal Air Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	24	7	23.5	6.5	24
tip to tip of vent	24	7	24	7	27
tip to tip including flange	24	7	24	7	27

Depth: 2 inch thick

Color Coatings: All Aluminum Trim Coil

Flange Type: No Flange

Fabricated Of: .019 Aluminum Metal

Screen Options: Aluminum, Vinyl screening, Half inch wire cloth, Solid metal back

24 X 7 X 2 Triangle vent for the most durable 24 x 7 metal louvre vents with a no flange and a 2 inch depth

The upper angles of the triangular louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 24x7x2trlvnfss

Tip: Cover fiberglass insulation with visqueen plastic sheating to lessen excessive condensation subjection.

UPS took this vent to Long Beach California 90808
