24 X 8 X 1 Triangle Back Flange Metal Air Vent

8/12 pitch triangular louvered vent.

24 x 8 x 1 with a back nail fin.

0

Triangle metal air vents

Primed white for painting to match the home.

The measures ordered are of the vent and not the nail fin.

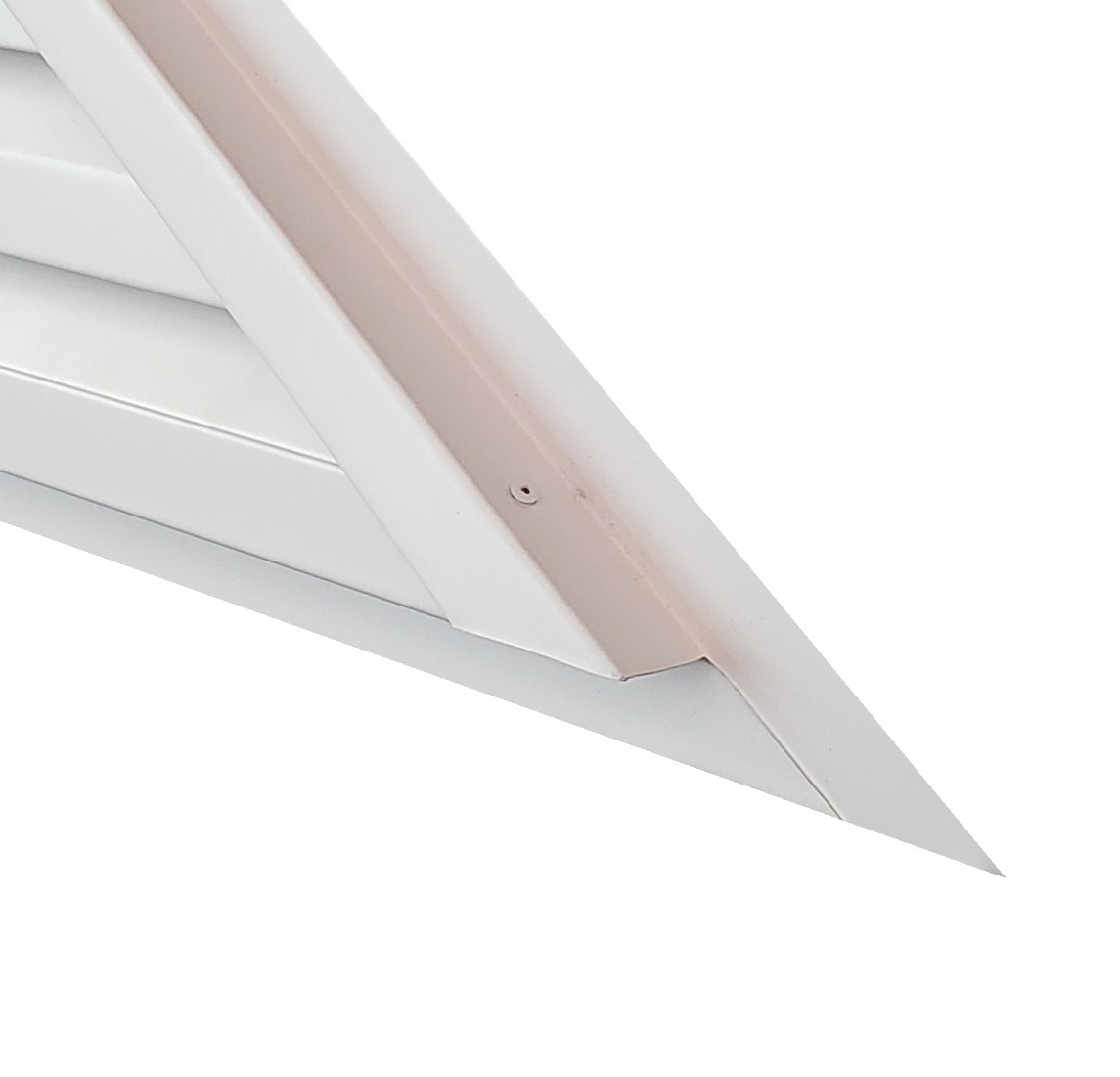

The corner shows the nail fin is a full 1 1/2 inches for great coverage.

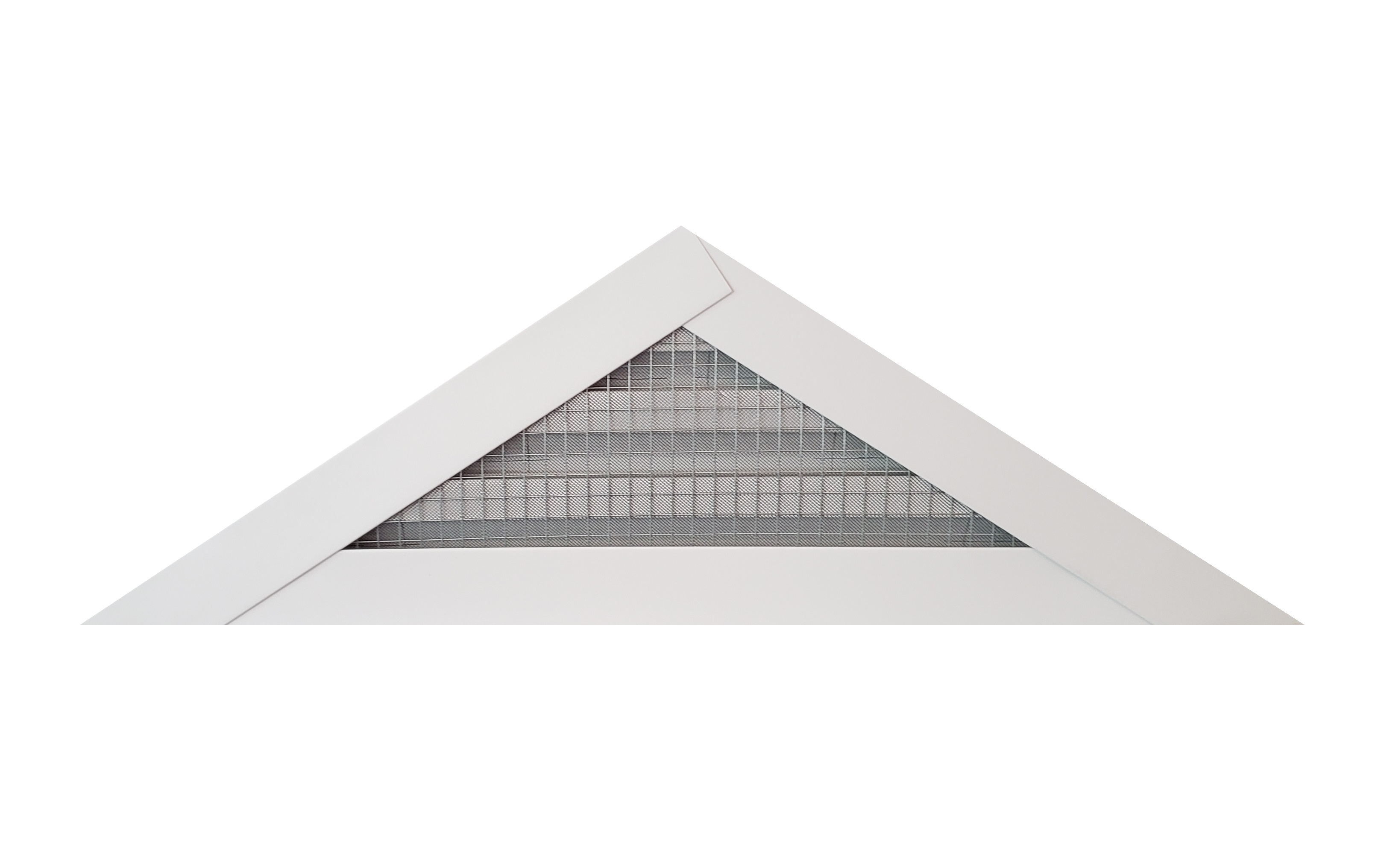

And squirrel resistent wire mesh was added to the back.

The Reinforced Aluminum 3 Sided Air Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	24	8	23.5	7.5	29
tip to tip of vent	24	8	24	8	33
tip to tip including flange	24	8	21	5	14

Depth: 1 inch vent wall

Color Coating Options: Any Aluminum Trim Coil Color

Type of Flange: Back Flange

Formed Of: .019 Aluminum Sheet Metal

Screening Options: Aluminum, Metal back, Wire mesh, Vinyl

24 X 8 X 1 Triangle vent in this enormous selection of 24 x 8 metal air vents with a back flange and a 1 inch depth

The side angles of this triangular louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 24x8x1trlvbfss

Myth: Fiberglass screen prevents wildlife from venturing in the loft.

Busted: Well, bees find it easy to gnaw holes. 1/2 inch wire mesh is the only noted barrier.

Shipped to Conway South Carolina 29526

What else?

Call, text or email us for a personal answer.

901.281.2887 contactus@onyxxteriors.com
