True 8/12 roof pitch.
This is where we can really see that some tiny vents are too small to vent.
At 24 inches on the base and 8 inches high in the center,
it would have had some ventilation.
But it was ordered not as the vent size measure,
instead, as the outer flange measure.
This makes the triangle vent even smaller.
Shop these
Triangle aluminum attic exhaust vents
"
The vent was reduced to ensure the flange measures do not exceed the measures.
From the back, the depth of 1 inch can be seen.
This is the portion that sits inside the wall.

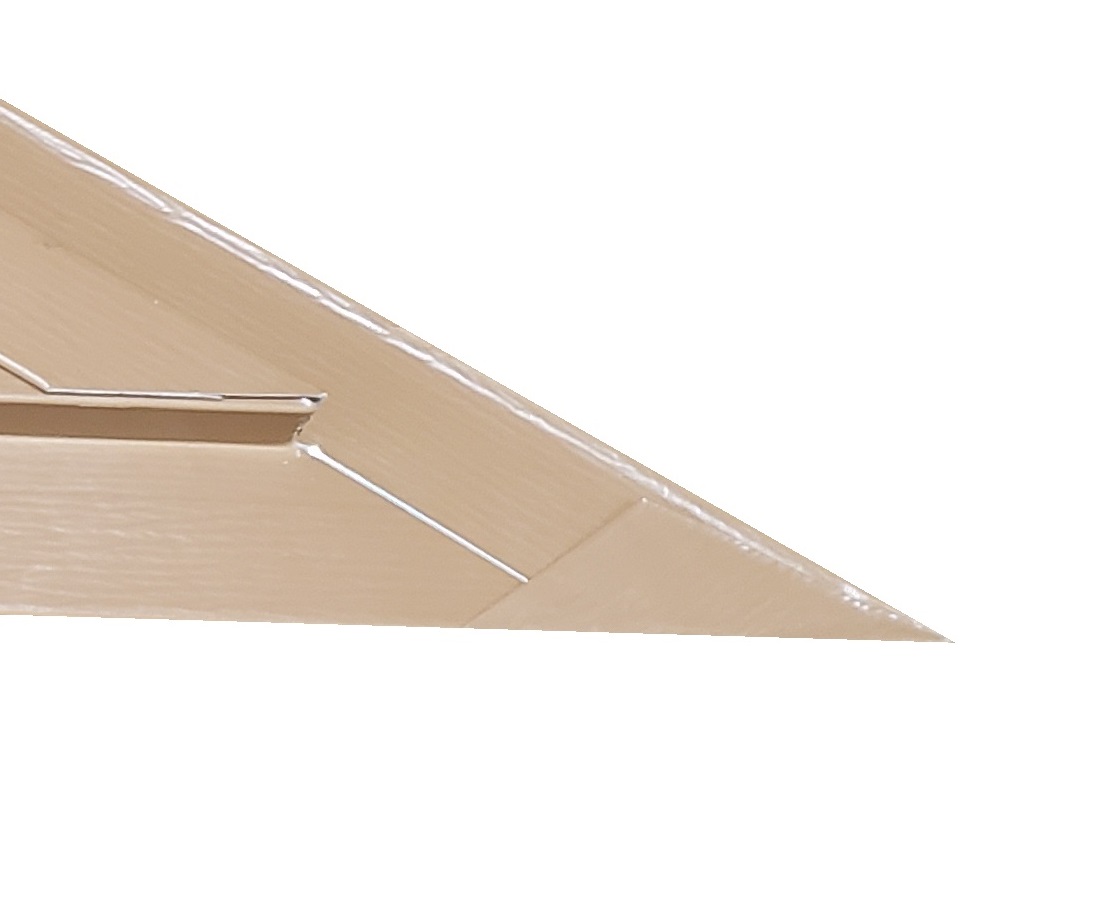

Notice all corners that can be turned and locked together are.
This adds stability since the corner cannot separate.

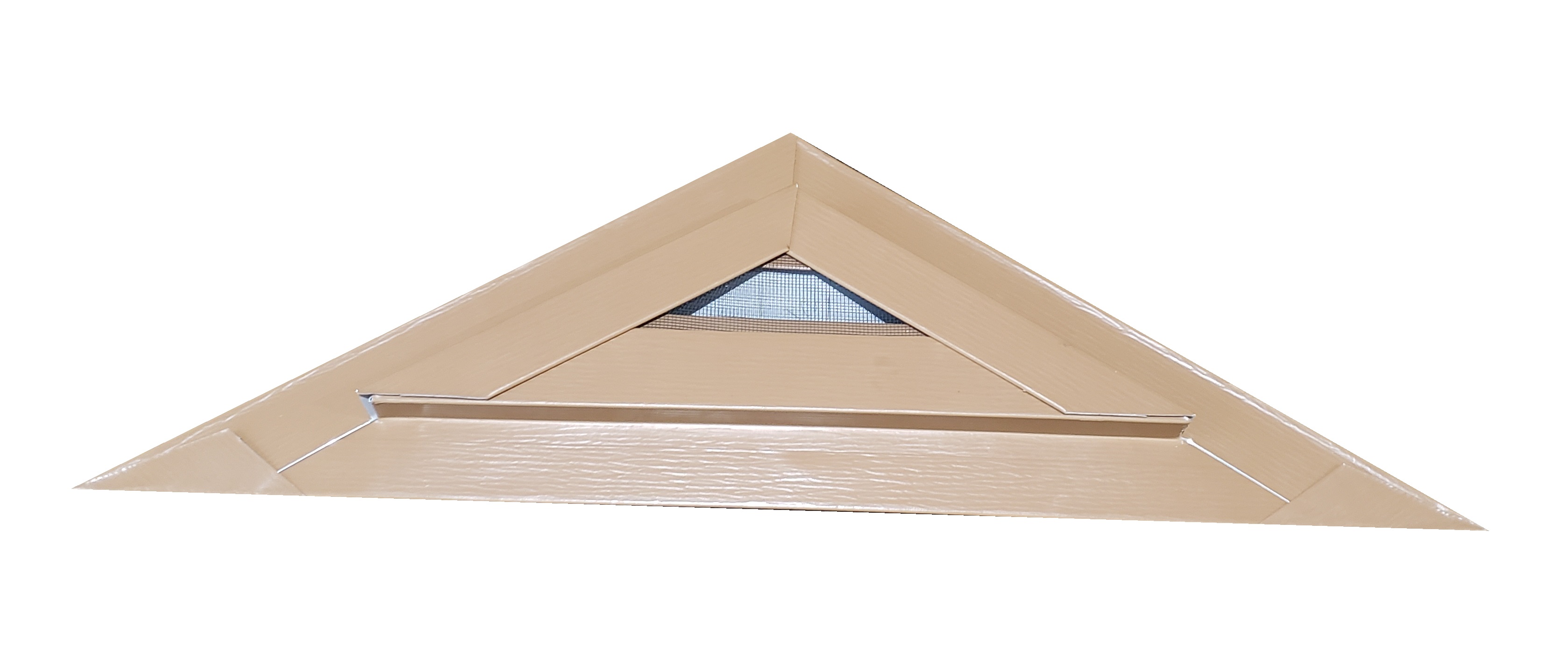

Here we see there is really no where left for the vent to breath.
Just because the title is vent,
ordering too small may not vent.
But as we are a complete custom sheet metal fabrication shop,
if this is what is needed,
this is what we will make for you.
Shop these 24 X 8 X 1 Triangle vents for the most durable 24 x 8 aluminum attic exhaust vents with a front flange and a 1 inch depth
The top angles of this triangular vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 24x8x1trlvffss
Included:
Strong aluminum louver fins
Reinforced railed frame
Doubled up flange
Baked on or woodgrain coating
Choice of screen or non vented
Made of Certain Teed Mountain Cedar PVC coated aluminum trim coil
and shipped to Mariaville Maine 04605
From the back, the depth of 1 inch can be seen.
This is the portion that sits inside the wall.
Notice all corners that can be turned and locked together are.
This adds stability since the corner cannot separate.
Here we see there is really no where left for the vent to breath.
Just because the title is vent,
ordering too small may not vent.
But as we are a complete custom sheet metal fabrication shop,
if this is what is needed,
this is what we will make for you.
A Reinforced 3 Sided Loft Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 24 | 8 | 23.5 | 7.5 | 29 | |
| tip to tip of vent | 24 | 8 | 24 | 8 | 33 | |
| tip to tip including flange | 24 | 8 | 21 | 5 | 14 |
Depth: 1 inch thick
Finish Color Options: Any .019 Trim Coil
Nail Flange: Front Flange
Composition: Metal, Aluminum
Screen Options: Aluminum, Vinyl screen, Aluminum screen, Metal backing
Included:
Strong aluminum louver fins
Reinforced railed frame
Doubled up flange
Baked on or woodgrain coating
Choice of screen or non vented
Made of Certain Teed Mountain Cedar PVC coated aluminum trim coil
and shipped to Mariaville Maine 04605
