25 X 25 X 2 Octagon No Flange Aluminum Louver Exhaust Vent

All shades of brown vents, no matter how dark,

can brighten up a homefront.

G8 Arch Bronze is this attic vent color.

Find these

Octagon aluminum louver exhaust vents

The brick opening this octagonal vent now sits in,

is 25 1/2" x 25 1/2".

It was ordered as 25 1/2 x 25 1/2 and opening size

for this reason.

We reduce the vent 1/4 inch per side

so the vent has no obsticals entering.

To order this same vent as tip tot tip,

order 25 x 25 and choose tip to tip.

Always allow for expansion and contraction

if ordering tip to tip.

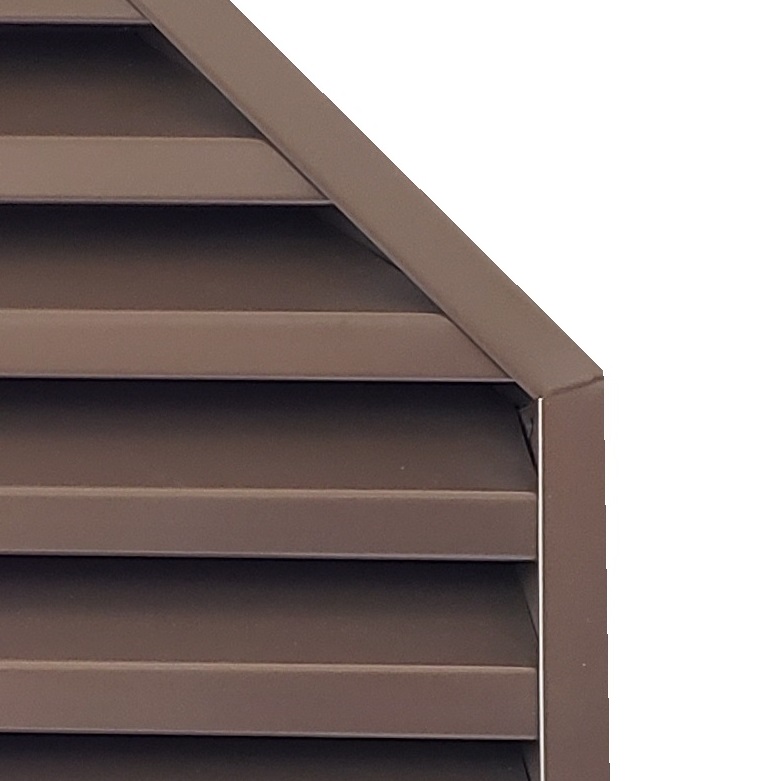

The corners of an octagonal attic vent are mitered

to a straight 22.5 degree angle.

Behind the face trim is a 1/2" rail system

that the louvers lock onto for extra slat stability.

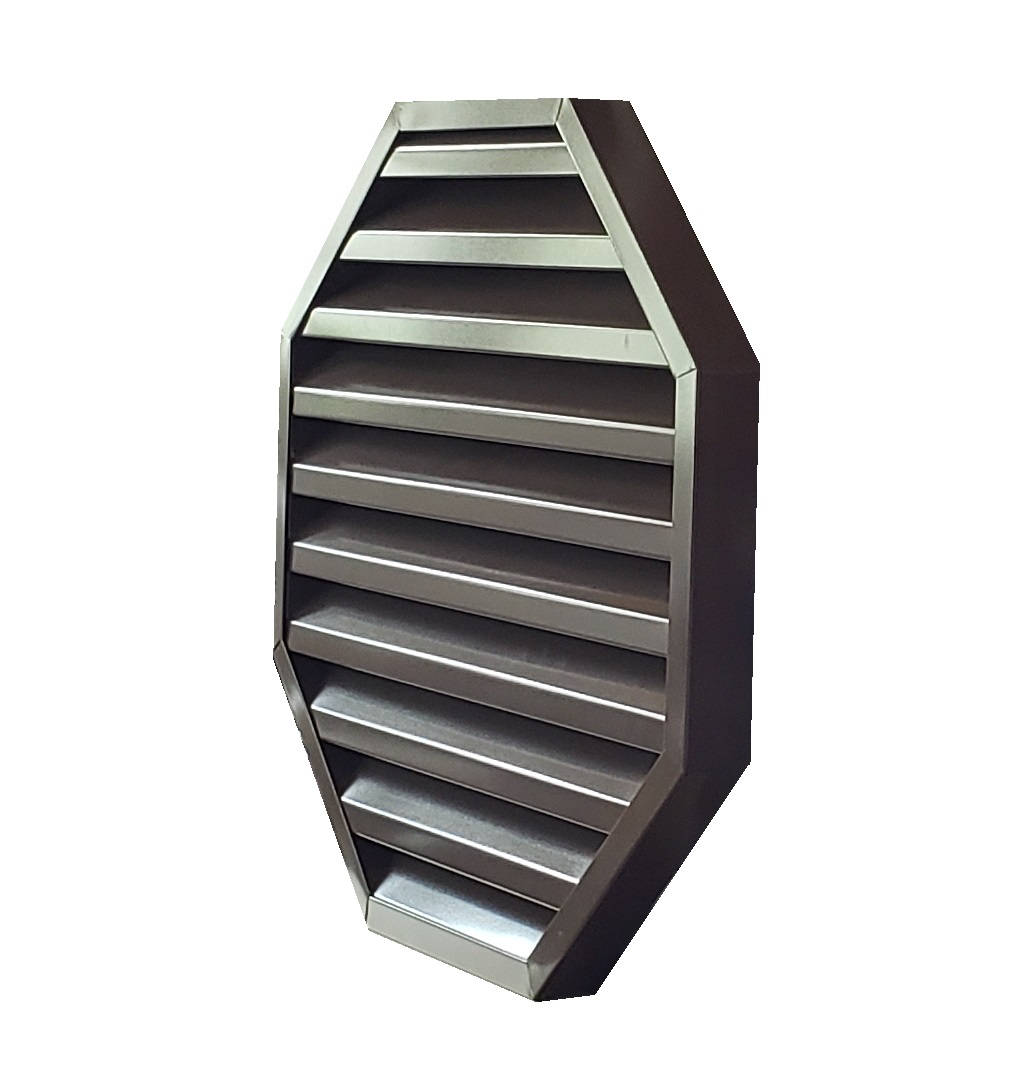

At a 2 inch depth, it will slide into the brick opening

with enough grip to stand on it's own.

These smaller lightweight vents

may only need sealed into place.

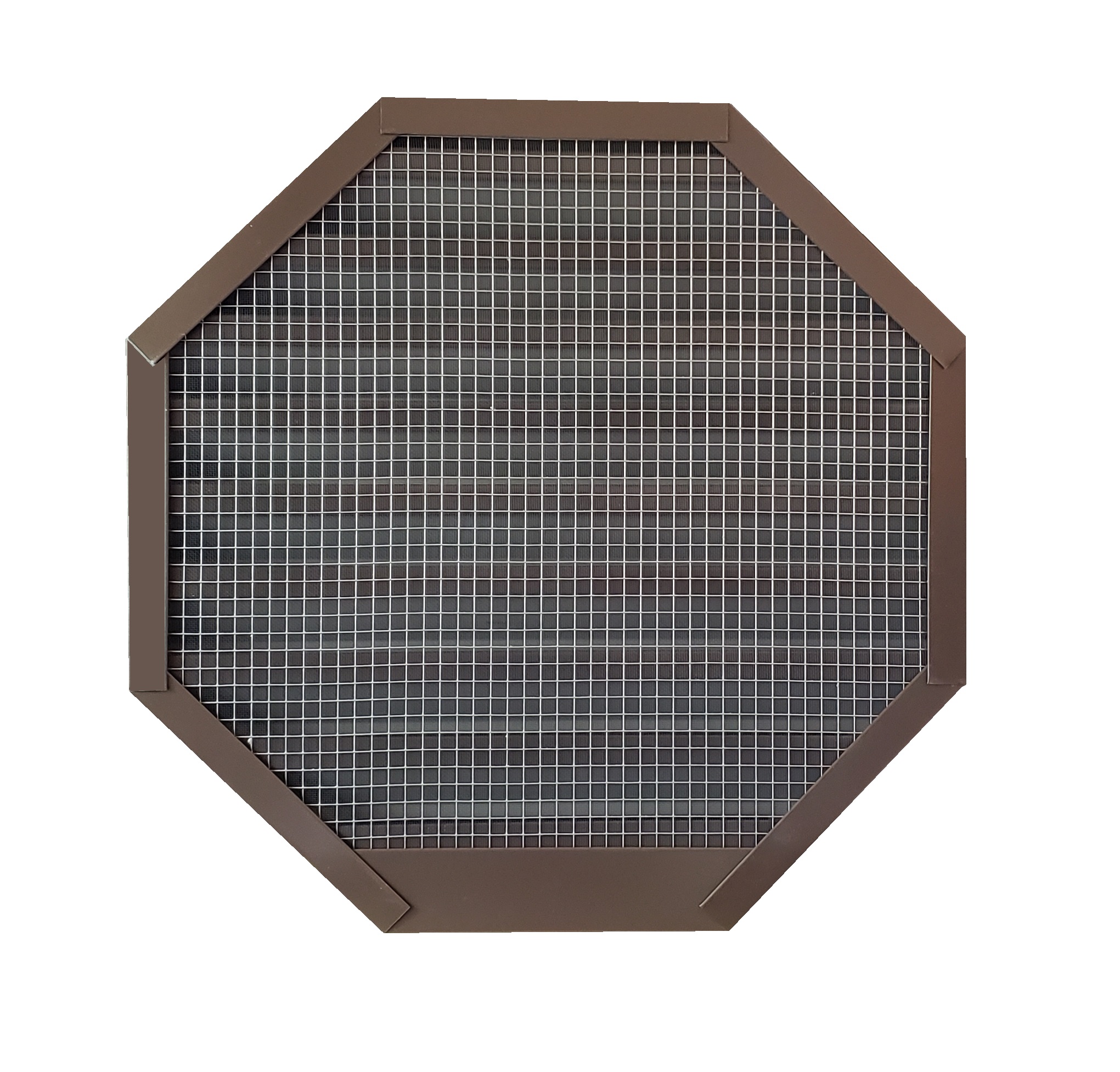

With the threat of bees and birds,

aluminum screen was applied for the insects

and 1/2" hardware cloth to lock out the fowls.

The Reinforced Stop Sign Aluminum Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	25	25	24.5	24.5	215
tip to tip of vent	25	25	25	25	224
tip to tip including flange	25	25	25	25	224

Depth: 2 inch depth

Finish: Any .019 Sheet Metal

Nailer: No Flange

Material: .019 Aluminum Sheet Metal

Functioning: Aluminum, Black vinyl screen, Black aluminum screening, Non functional

Find these 25 X 25 X 2 Octagon vents for the correct 25 x 25 aluminum louver exhaust vents with a no flange and a 2 inch depth

25 x 25 x 2 octagon no flange vent What were you thinking? A vent shaped like a stop sign. Getting a measure has to be hard, right? No. All we need is the width and height to calculate the rest of the angles. 25x25x2oclvnfss

Capturing attention in a way other exhaust vents can not. These make a statement in any exterior design without stealing valuable wall space.

Cleves Ohio 45002 now has a very unhappy family of birds after their permanent eviction.
