26 X 26 X 4 Octagon Front Flange Aluminum Vent

Commonality is to see an octagon vinyl vent and see it chewed up by squirrels.

Imagine the squirrel's surprise when they try to take a bite out of an aluminum vent.

We still strongly suggest evicting all 4 legged critters before installing new louvered vents. 😀

Place your order for a Octagonal Louvered Vent right here.

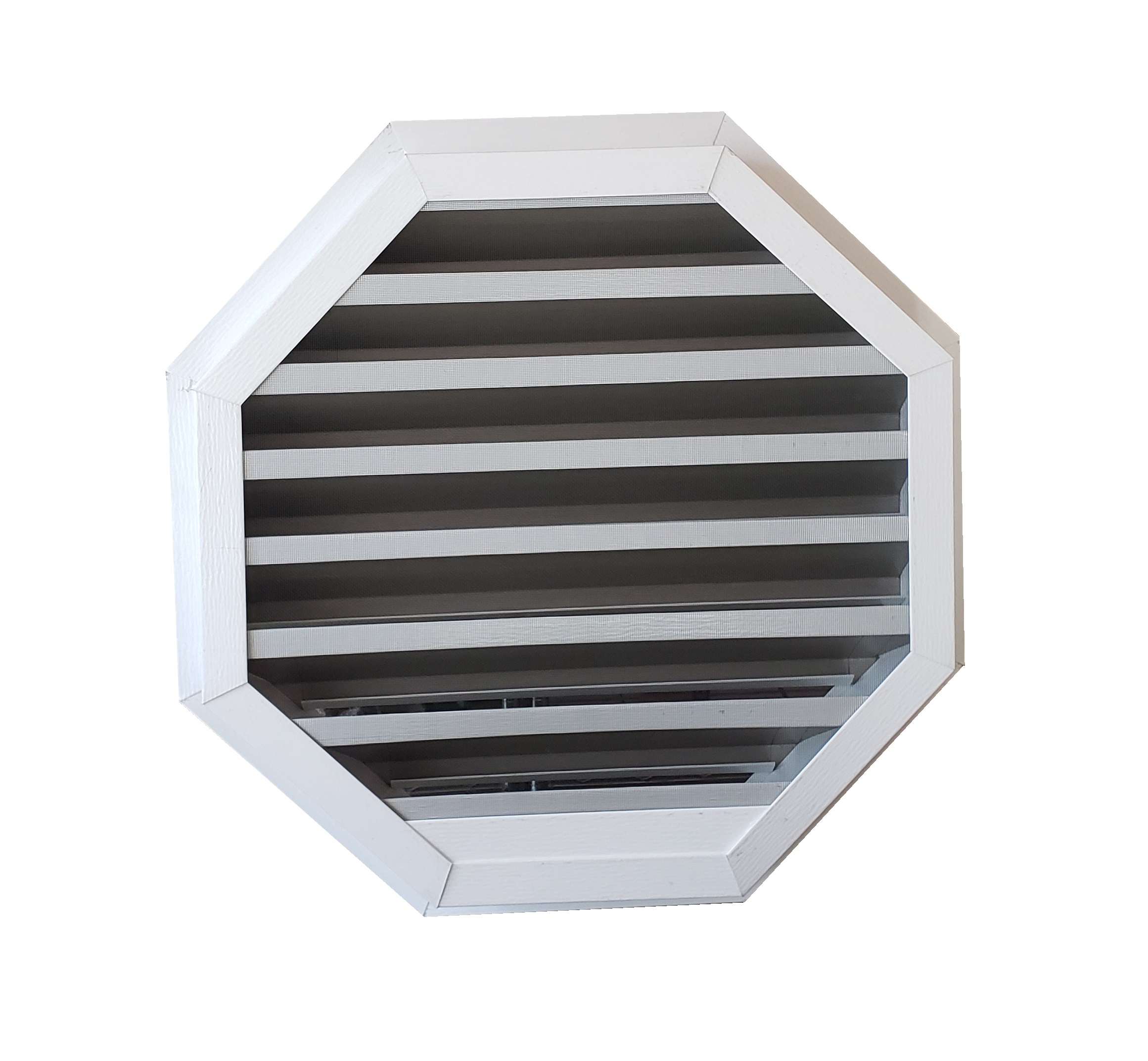

This octagon vent was done in a white PVC coating which will keep the neighbors guessing why rodents don't like your attic. 😋

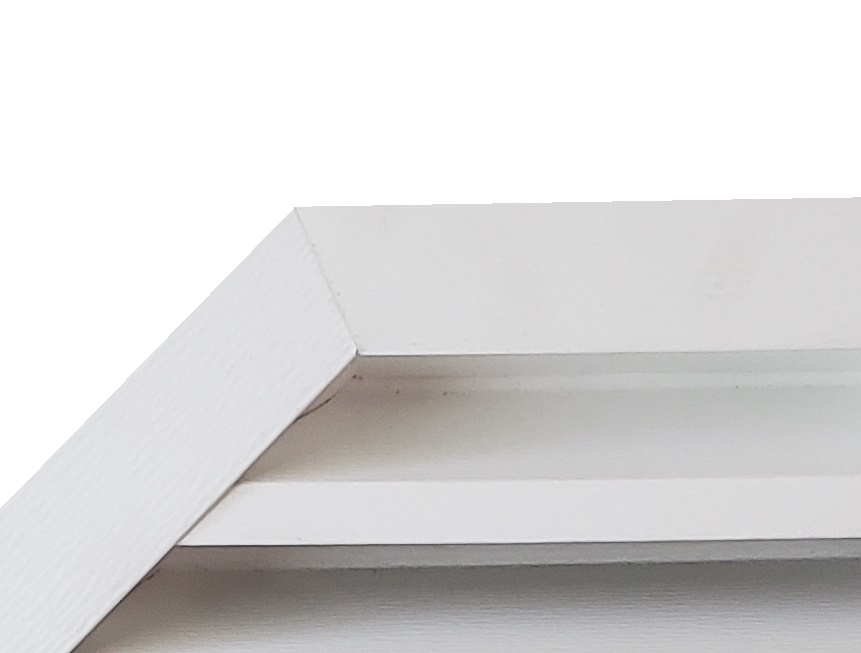

The top of the flange is mitered to a 22.5 angle to match a true octagon corner.

Shown is a standard 1 1/2 inch nail fin with 1 inch of vent coverage, banding the face trim as 2 1/2 inches.

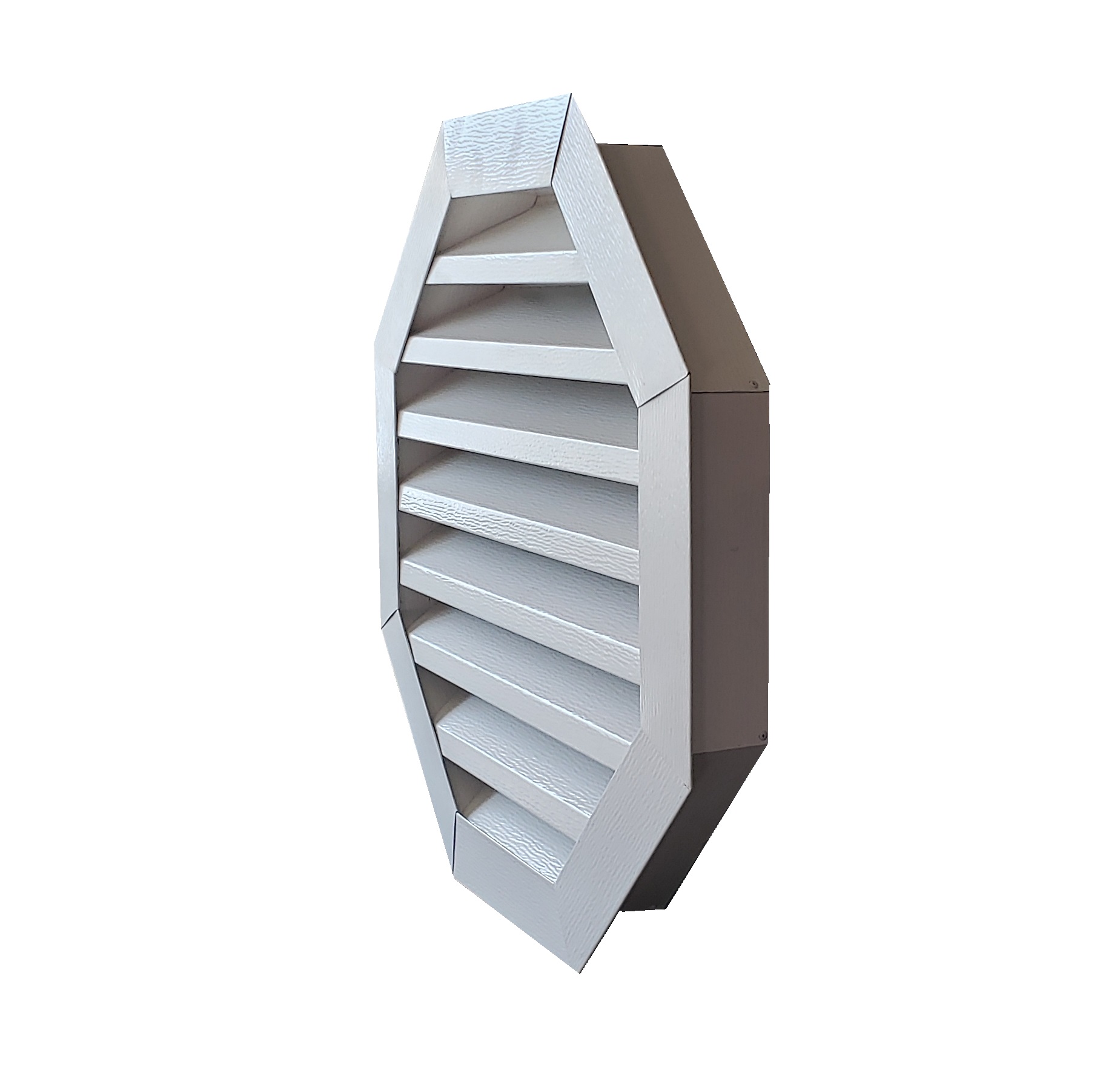

The side view shows the vent to be 3 1/2 inches deep behind the flange.

This is commonly known as a 4 inch deep vent.

Screened with an aluminum screen.

But 1/2 inch wire mesh can be added for a better critter protection.

And still leaving around 300 square inches of net free air.

Better Metal Octagon Aluminum Gable Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	26	26	25.5	25.5	309
tip to tip of vent	26	26	26	26	323
tip to tip including flange	26	26	23	23	247

Depth: 3 1/2 inch

Colors: All .019 Aluminum Sheet Metal

Nail Flange Type: Front Flange

Produced With: .019 Aluminum Sheet Metal

Functional Options: Aluminum, Vinyl screen on back, Solid metal back, Half inch wire mesh

See these26 X 26 X 4 Octagon vents for the most durable 26 x 26 aluminum vents with a front flange and a 3 1/2 inch depth

Here we go. A vent formed like a stop sign. Measuring has to be hard, right? No. All we need is the width and height to calculate the rest of the angles. 26x26x4oclvffss

If your home is in good order, let Onyx Xteriors help you keep it that way with optimal venting system components.
