27 X 33 X 1 Square No Flange Aluminum Crawlspace Exhaust Vent

Retro fit attic vents are simple vents without a nailing flange

and usually only an inch thick or deep.

Best

Square aluminum crawlspace exhaust vents

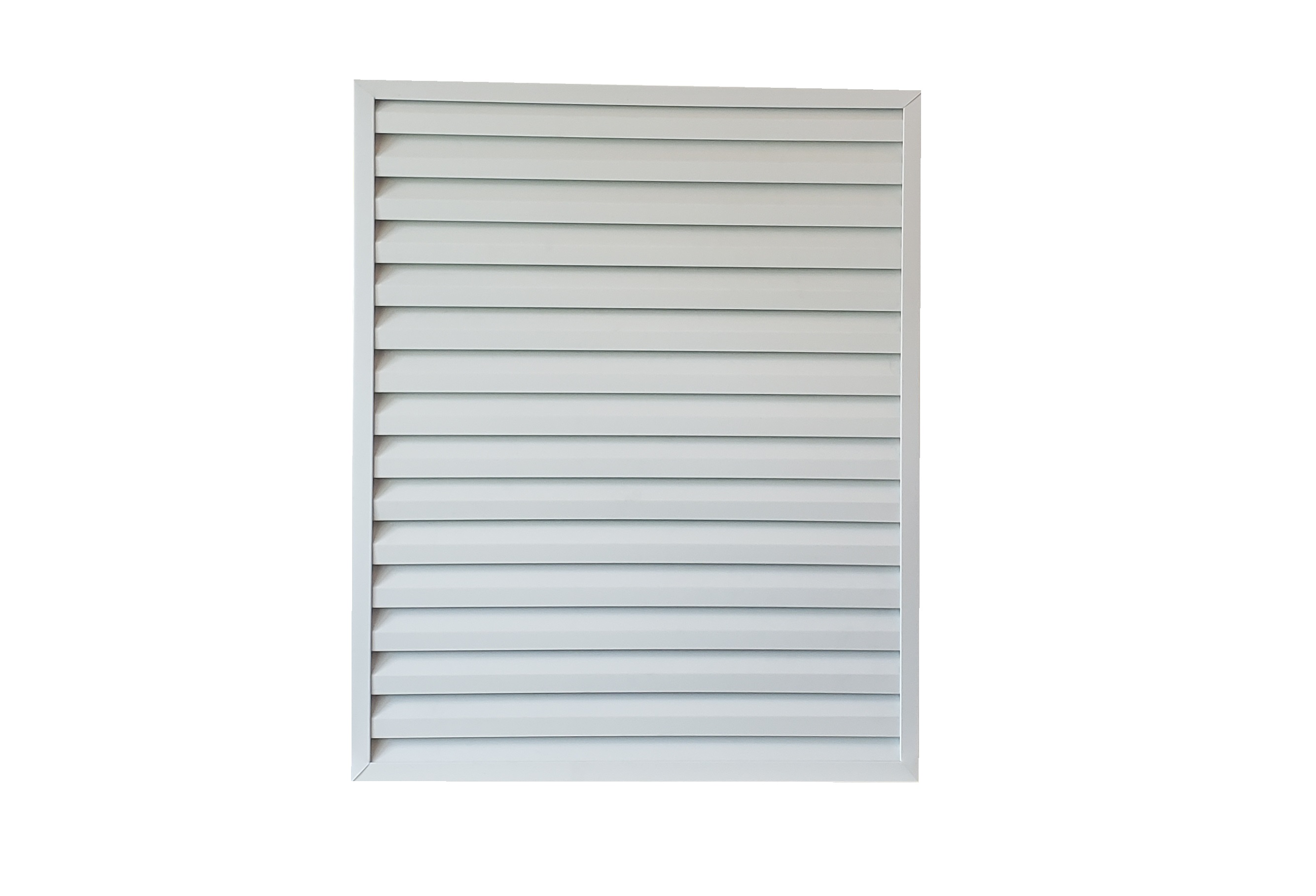

This squarish louvered attic vent can be installed in a wall,

window opening or even a door panel.

As long as the opening is to size,

this is the most universal gable vent option.

Insert into stucco, brick, or wood opening.

Or install outside the wall

on wood siding, vinyl siding or to cover any void.

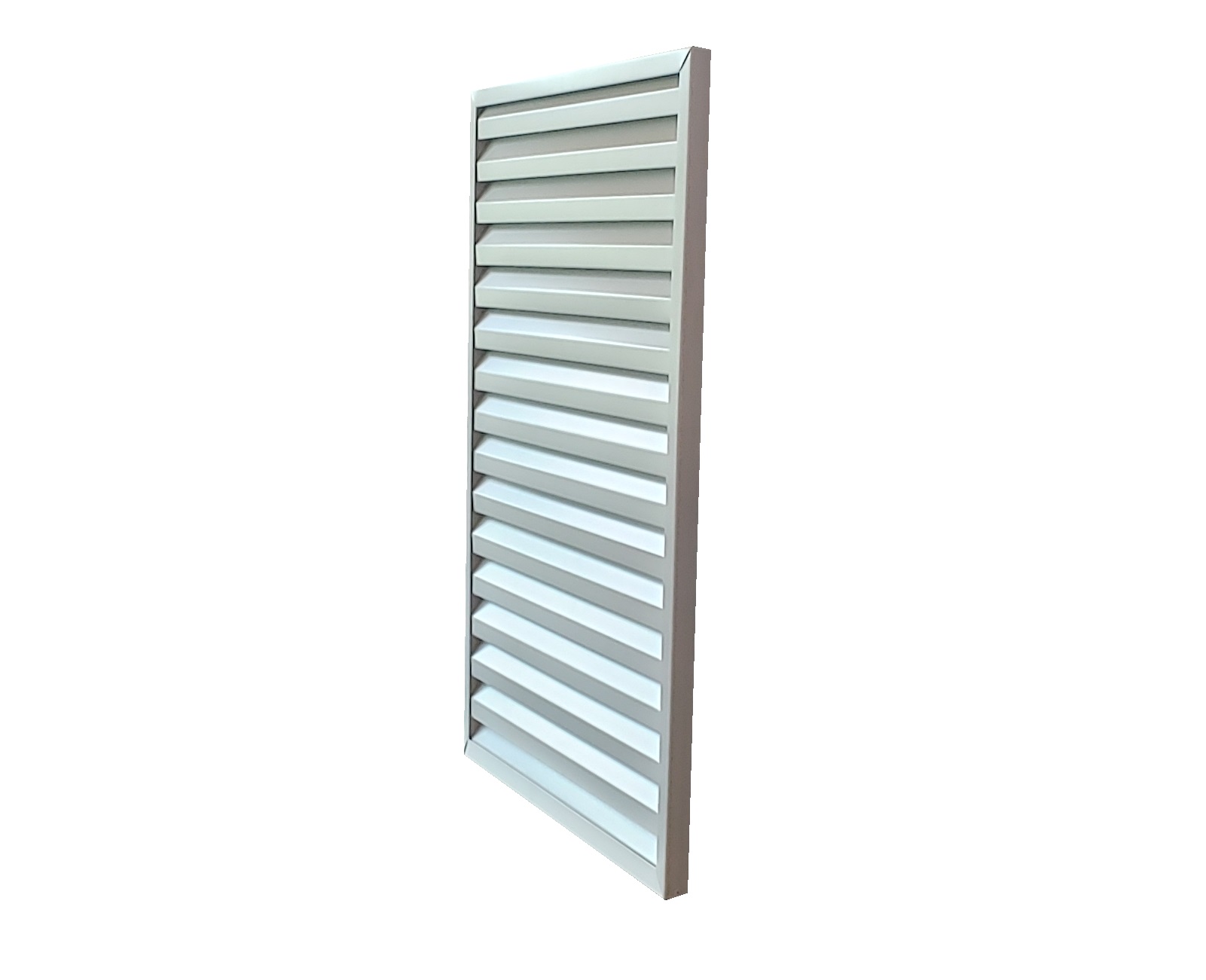

From this angle, the depth is obviousely only an inch.

Mounting outside the wall, it will almost match

with the thickness of other trim boards.

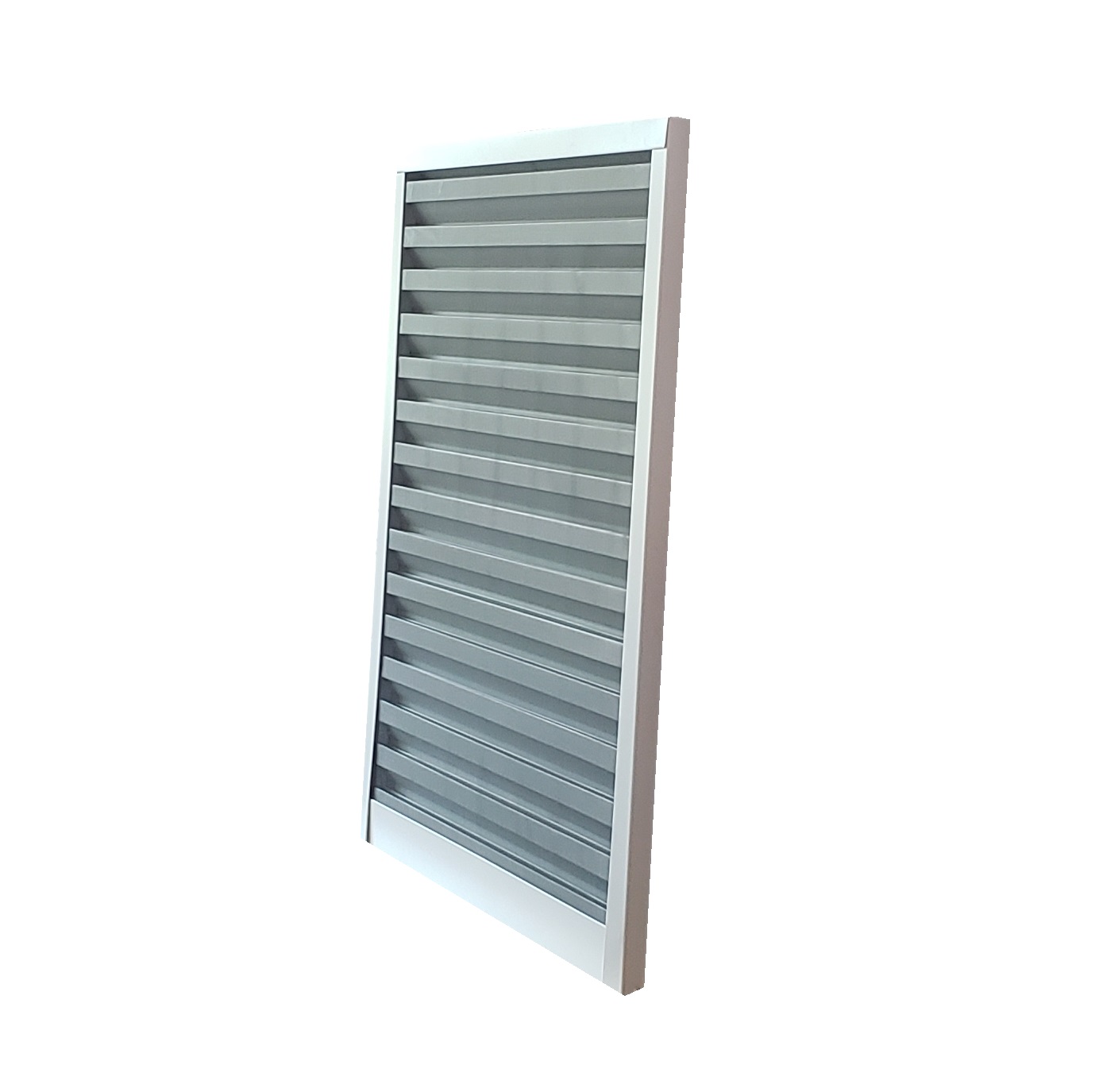

The 1 inch faced trim wraps all the way around the edging

to also surround the back of the vent.

This rear trim can be used to surface mount the vent.

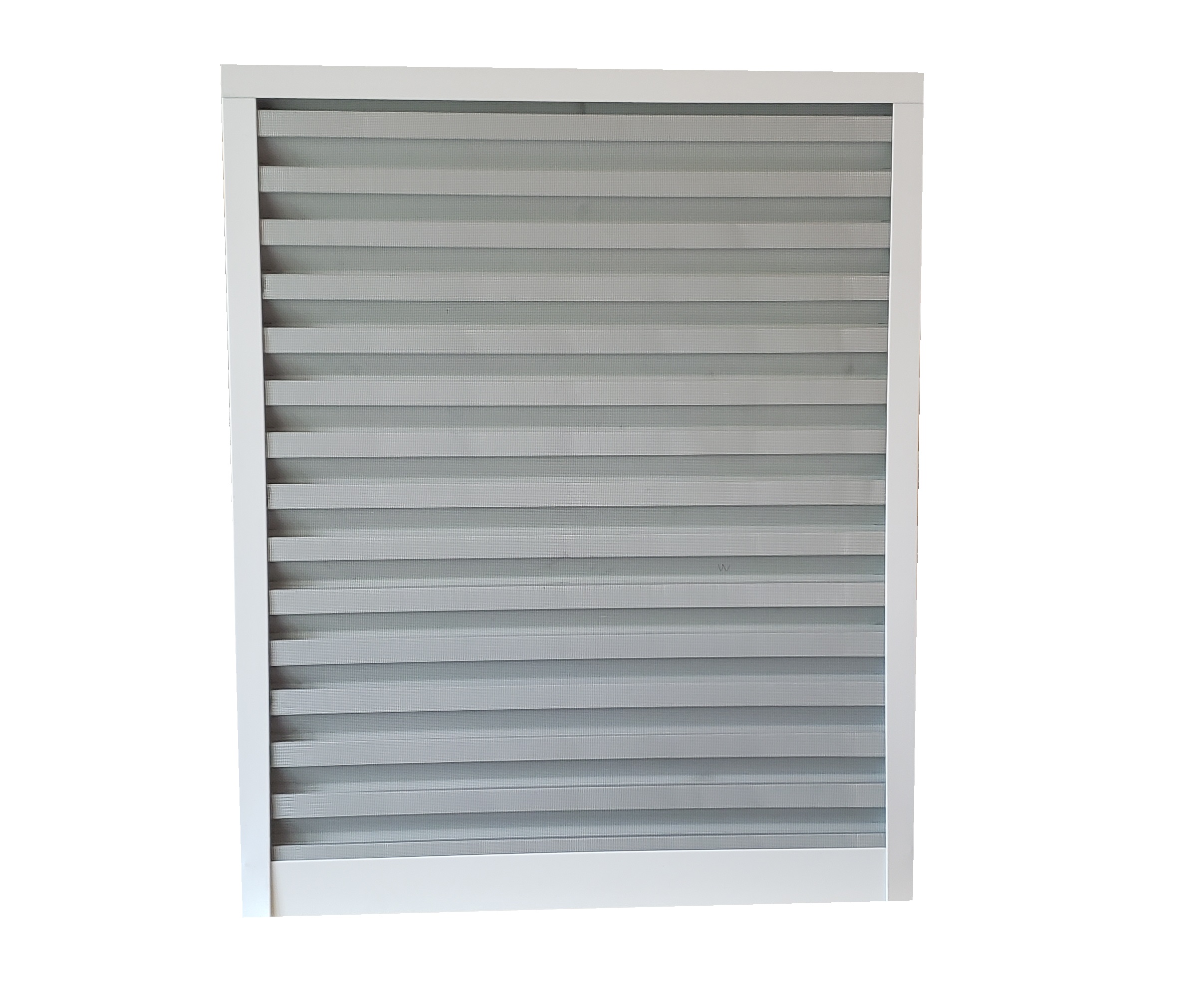

Aluminum screening added to the back will deter all kinds of bugs and flying insects.

It may be noticeable that each vent bottom

extends up higher.

Since the bottom louver does not vent,

this area can be blocked off.

And the taller trimming can double as a drip pan.

So any blowing rain that would have leaked into the attic,

now gets trapped to dry up or disperse to outside the attic.

The Reinforced Metal Squared Metal Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	27	33	26.5	32.5	373
tip to tip of vent	27	33	27	33	387
tip to tip including flange	27	33	27	33	387

Depth: 1 inch deep

Finish Options: All .019 Sheet Metal

Flange: No Flange

Composite: .019 Aluminum Metal

Functional Options: Aluminum, Vinyl screening on back, Black aluminum screen, Non vented

Best 27 X 33 X 1 Square vents in this huge selection of 27 x 33 aluminum crawlspace exhaust vents with a no flange and a 1 inch depth

Put any old square Fypon vent in the grave with a real aluminum vent for a lifetime of protection. 27x33x1sqlvnfss

Aluminum crawlspace intake vent replacement is not at the top of your list when you retire. But if you need to. Retire your old vent. These replacement gable vents are designed to last a lifetime.
