No this is not an illusion.
And this triangle vent is not crooked.

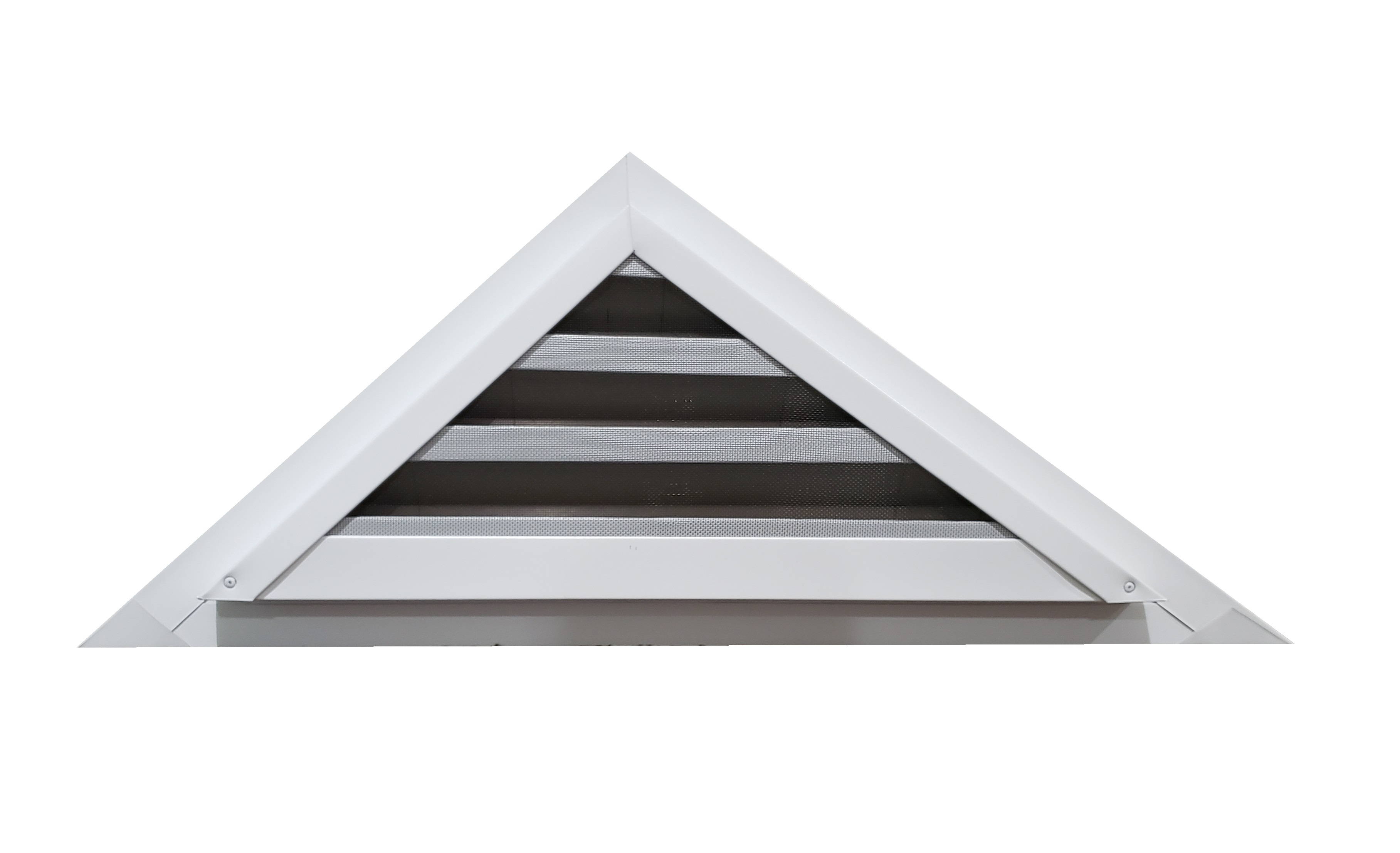

This is an Offset Triangle Vent.
This means the tallest point is off center of the base.
Shop for a
Triangle loft air vents
To be specific, the left half of the base is 12 inches and the right half is 16 inches.
With the height of 11 inches up the off center center.

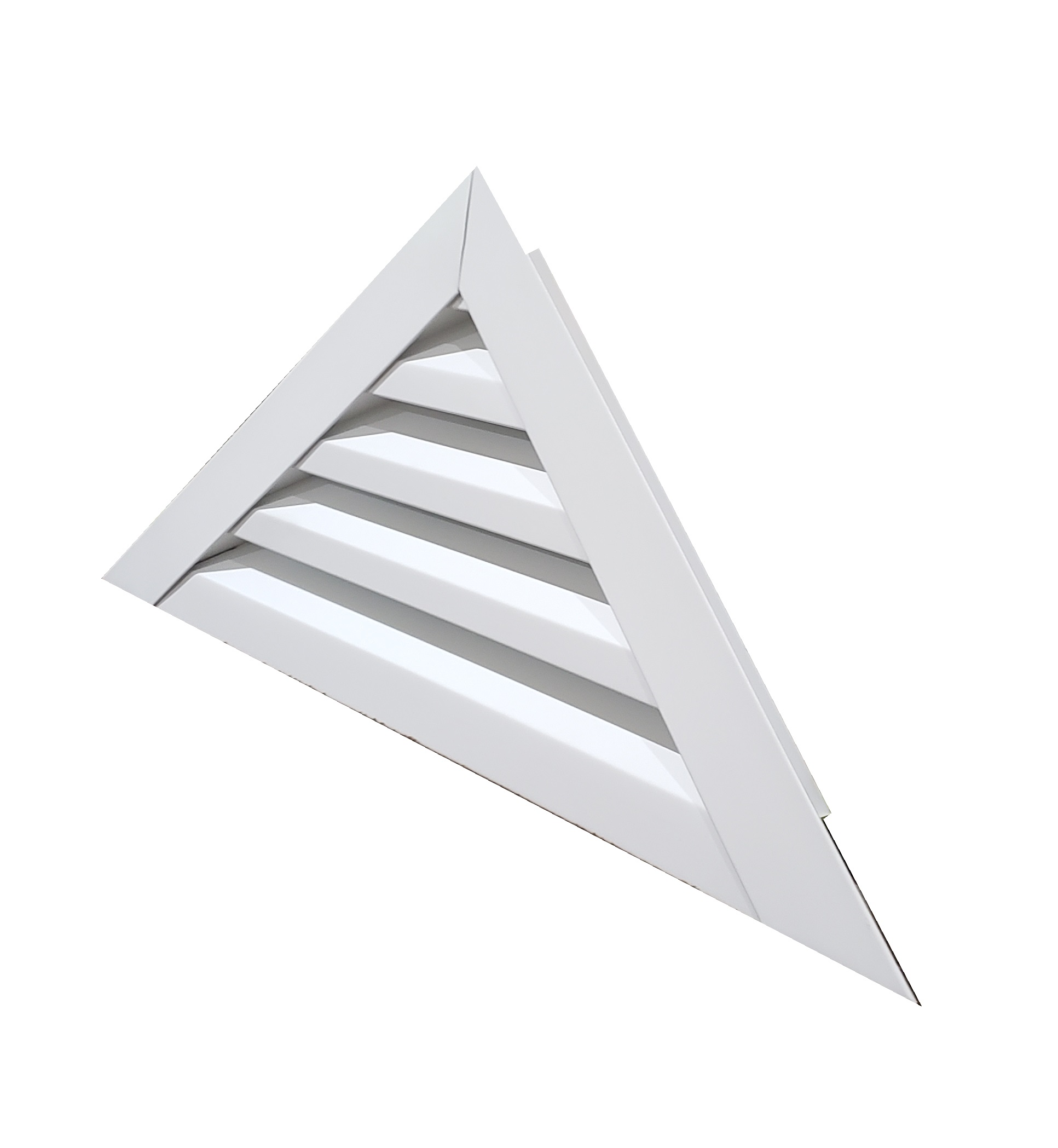

The frontal nail fin extends an inch and a half beyond the vent.
The screen is built in the vent back.
The corners are locked together for a more stable vent.
To order an offset triangle vent, just notify us in the comments box with the left and right off center line measures.
Shop for a 28 X 11 X 2 Triangle vent for the best fitting 28 x 11 loft air vents with a front flange and a 2 inch depth
The side angles of the triangle aluminum louver vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 28x11x2trlvffss
The Onyx Xteriors first generation metal gable intake vent was manufactured in the USA as a residential air handler in 1996. Since then, Onyx Xteriors has constantly stayed ahead of industry requirements.
This vent is now doing it's job in Latham New York 12110
With the height of 11 inches up the off center center.
The frontal nail fin extends an inch and a half beyond the vent.
The screen is built in the vent back.
The corners are locked together for a more stable vent.
To order an offset triangle vent, just notify us in the comments box with the left and right off center line measures.
The Reinforced Triangle Crawlspace Air Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 28 | 11 | 27.5 | 10.5 | 54 | |
| tip to tip of vent | 28 | 11 | 28 | 11 | 58 | |
| tip to tip including flange | 28 | 11 | 25 | 8 | 34 |
Depth: 2 inch thick
Color: All .019 Trim Coil
Fin: Front Flange
Composition: 100% Aluminum
Functioning Options: Aluminum, Non vented, 1/2 inch wired mesh, Vinyl screening on back
The Onyx Xteriors first generation metal gable intake vent was manufactured in the USA as a residential air handler in 1996. Since then, Onyx Xteriors has constantly stayed ahead of industry requirements.
This vent is now doing it's job in Latham New York 12110
