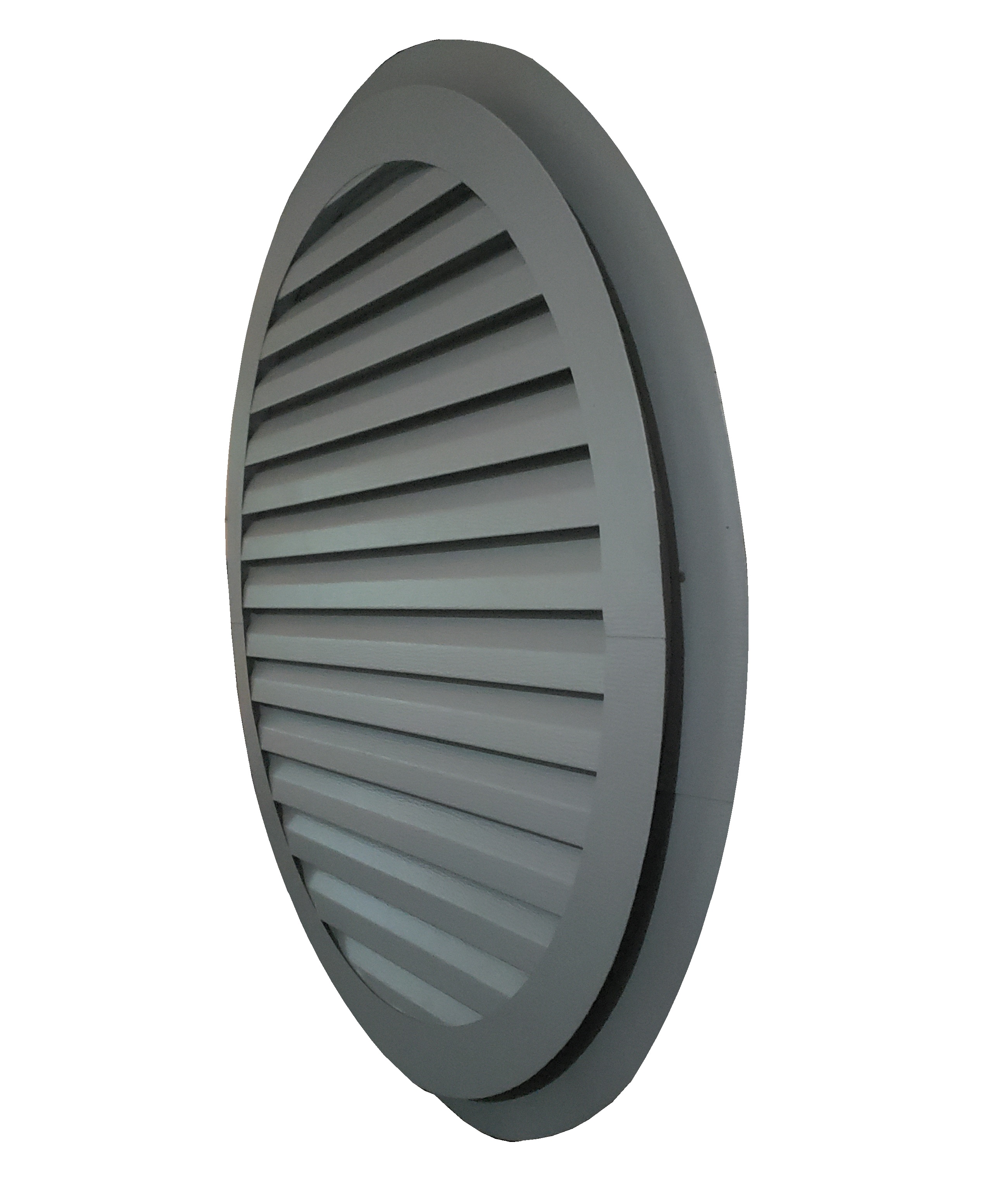

Alside Laguna Blue PVC coated aluminum circular gable vent measuring 30 x 30.
The 30 x 30 is the vent itself.
When adding the J channel flange around the face, now the outer visual will be 32 x 32.
The rear of the J channel is 2 1/2 inches beyond the vent and will not be visible after the vinyl siding installation.
But the wider rear flange creates excellent water protection.
Get
Round air exhaust vents
Most aluminum vents from other manufacturers have a crinkled face plate for making it round.
These have a smooth trim face for a neater appearance.
With a full open receiver pocket, it gives good coverage of sdiing ends.
Thicker vents can be customized with an even deeper J channel for insulated siding, Hardie Plank and even CertainTeed concrete siding.

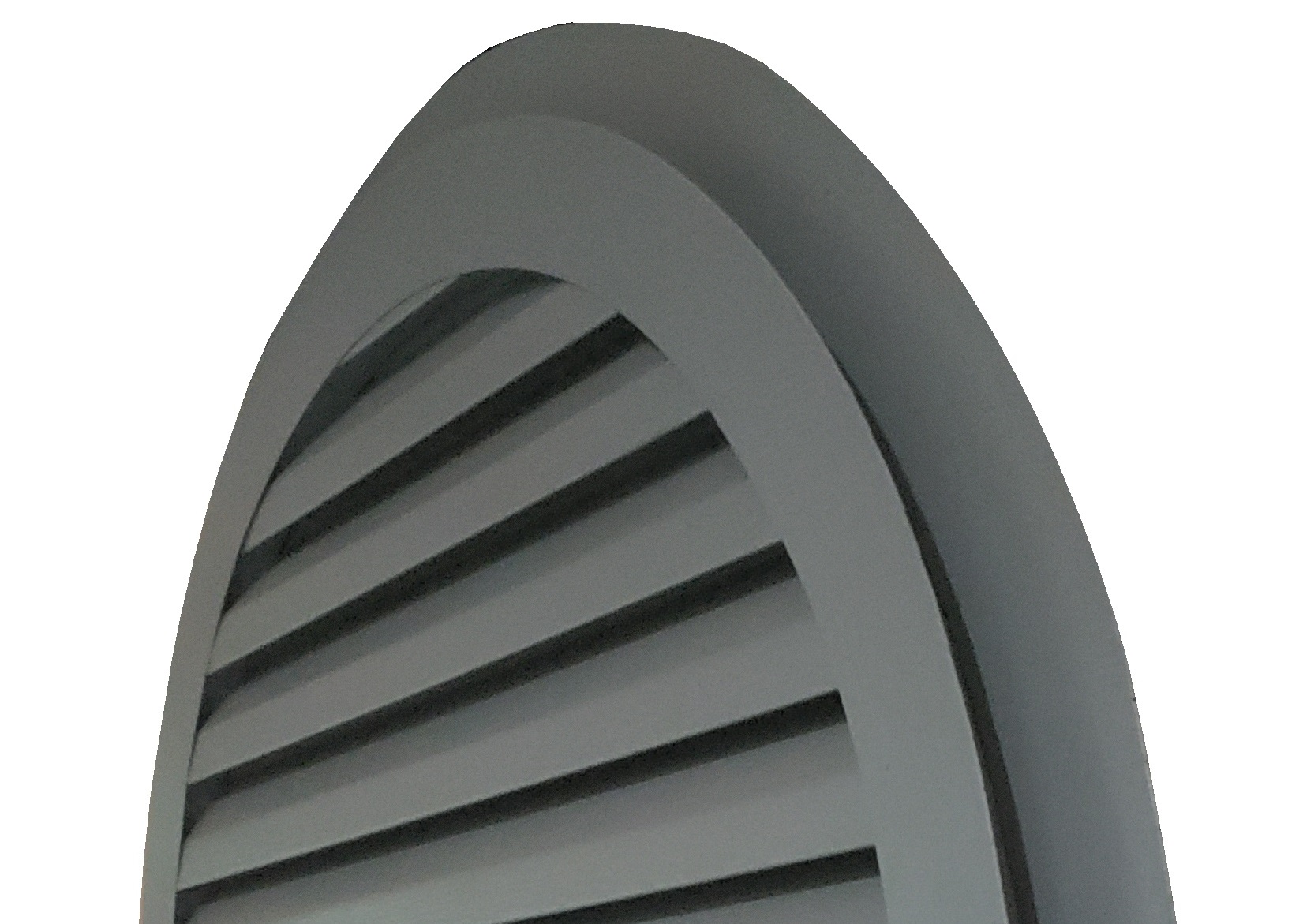

Each louver or slat is locked onto a rail hidden behind the face trim.
So, even a vent as thin as an inch will be sturdy even before install.

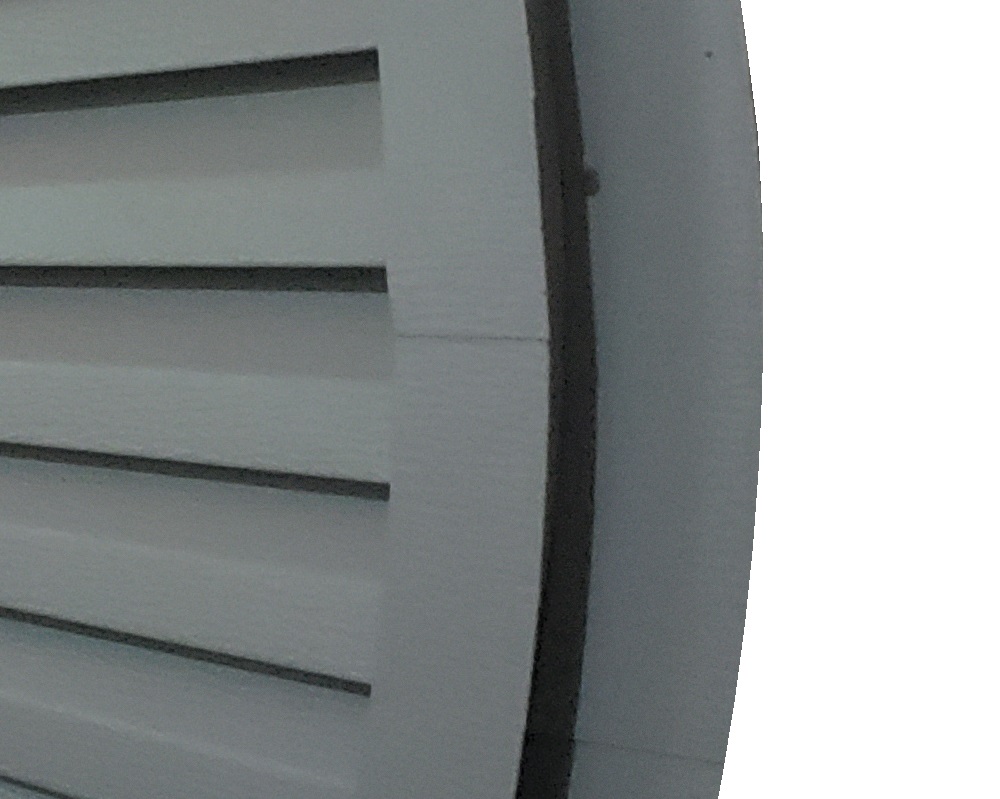

Circular vents over 20 inches round will have a seam on the face trim.
This is barely visible before install and usually not after.
This seam is locked together just like the J flange for a stronger, better louver vent.
Get 30 X 30 X 1 Round vent for the correct 30 x 30 air exhaust vents with a J channel and a 1 inch depth
How can you measure a rounded vent? Measure it like a squared vent. Width and height. You do not need a rounding tape meaasure. 30x30x1rolvjfss
Featuring:
Stronger aluminum, metal horizontal louvers
Triple layer rail system aluminum frame
Hemmed over nailing flange
Baked on or textured coated finish
Choice of screen or non functional
Pennsylvanians looking for gable vents for Pennsylvania homes of any age can enjoy the full customization options we offer including the color.
These have a smooth trim face for a neater appearance.
With a full open receiver pocket, it gives good coverage of sdiing ends.
Thicker vents can be customized with an even deeper J channel for insulated siding, Hardie Plank and even CertainTeed concrete siding.
Each louver or slat is locked onto a rail hidden behind the face trim.
So, even a vent as thin as an inch will be sturdy even before install.
Circular vents over 20 inches round will have a seam on the face trim.
This is barely visible before install and usually not after.
This seam is locked together just like the J flange for a stronger, better louver vent.
Circle Wall Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 30 | 30 | 29.5 | 29.5 | 302 | |
| tip to tip of vent | 30 | 30 | 30 | 30 | 313 | |
| tip to tip including flange | 30 | 30 | 27 | 27 | 250 |
Depth: 1 inch deep
Color: Any Aluminum Coil
Nailer: J Channel
Composition: Aluminum Metal
Functioning: Aluminum, Metal backing, Aluminum screening on back, Black vinyl screening on back
Featuring:
Stronger aluminum, metal horizontal louvers
Triple layer rail system aluminum frame
Hemmed over nailing flange
Baked on or textured coated finish
Choice of screen or non functional
Pennsylvanians looking for gable vents for Pennsylvania homes of any age can enjoy the full customization options we offer including the color.
