30 X 30 X 1 Square Back Flange Aluminum Gable Vent

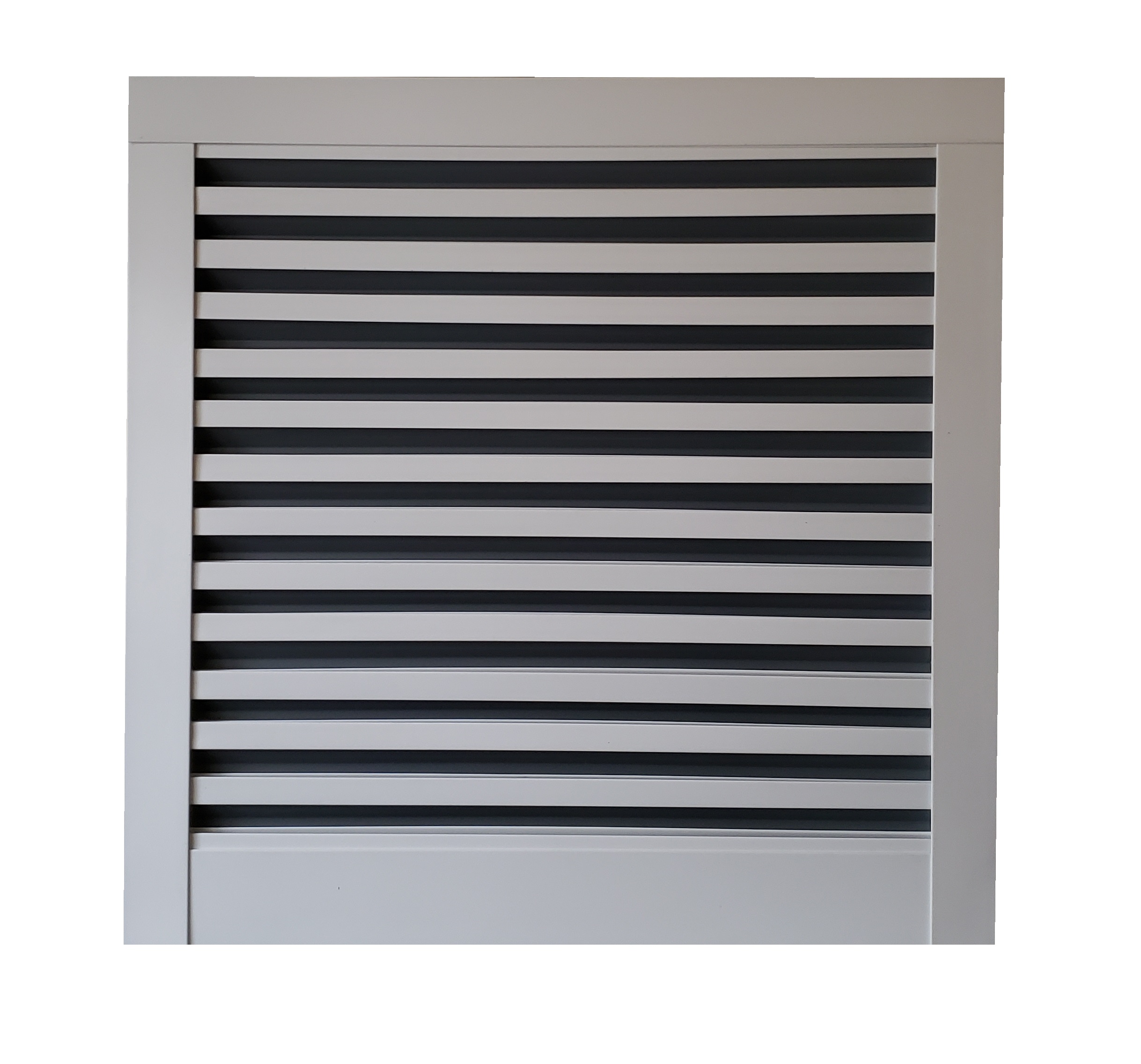

The true beauty of a square vent is the straight lines.

Louvers standing stiff horizontally looking strong.

Even the vent edging aligns for a neat appearance.

Browse for

Square aluminum gable vents

Built on a rail system to ensure a lifetime of stability.

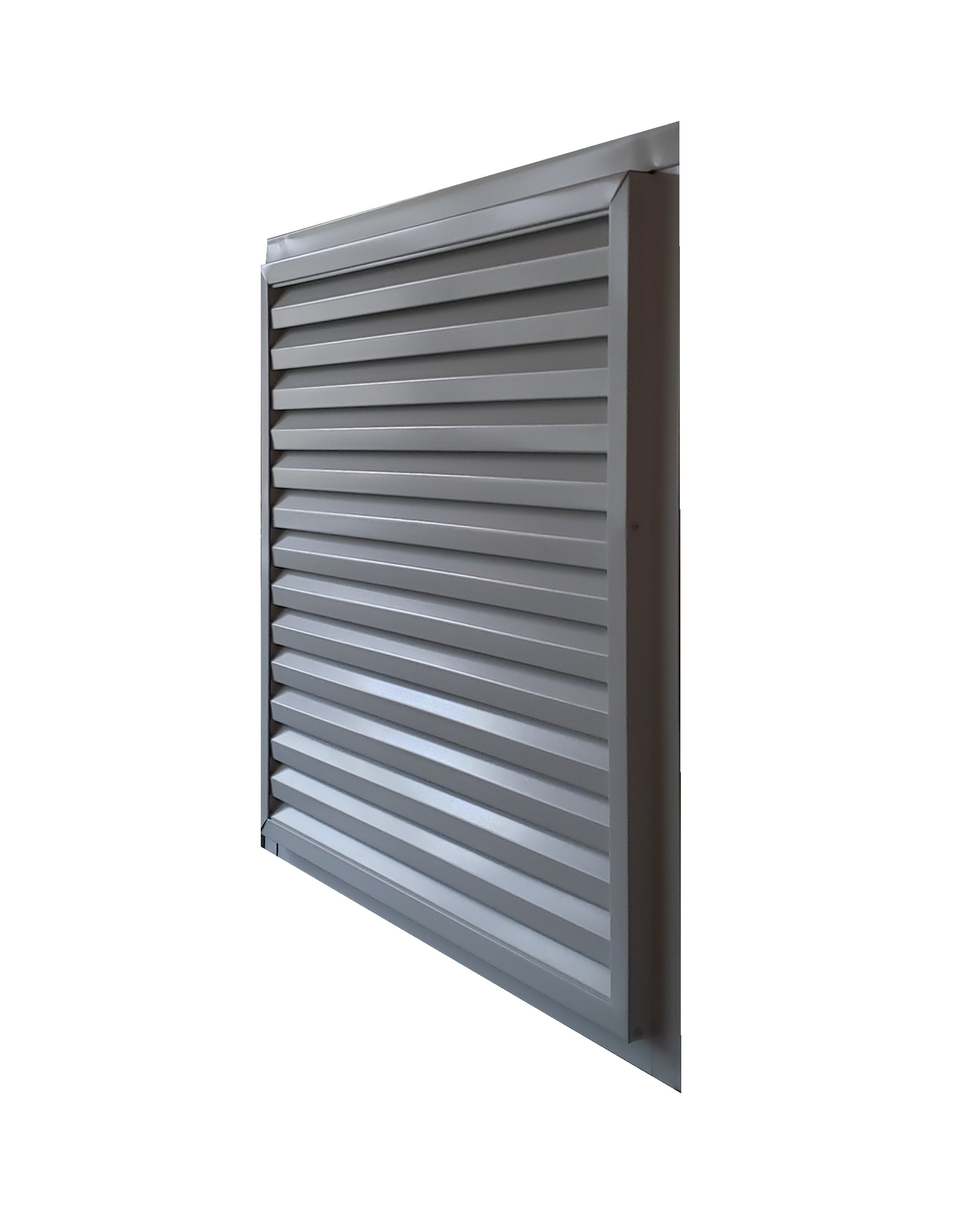

From the side, the nail fin is obviously on the rear of the vent.

These can be used with a multitude of siding applications.

Concrete boards, Hardie Plank, brick and even stucco if fastened to the wall prior.

But if the gable wall is too difficult to work on, these can be mounted from inside the attic.

Just remember to seal the outside from water.

So, why was this vent chosen to not have screen?

The height of the wall and the application was decided that screen wasn't needed.

With a dedicated blower behind the vent, there would be no bugs or birds entering for sure.

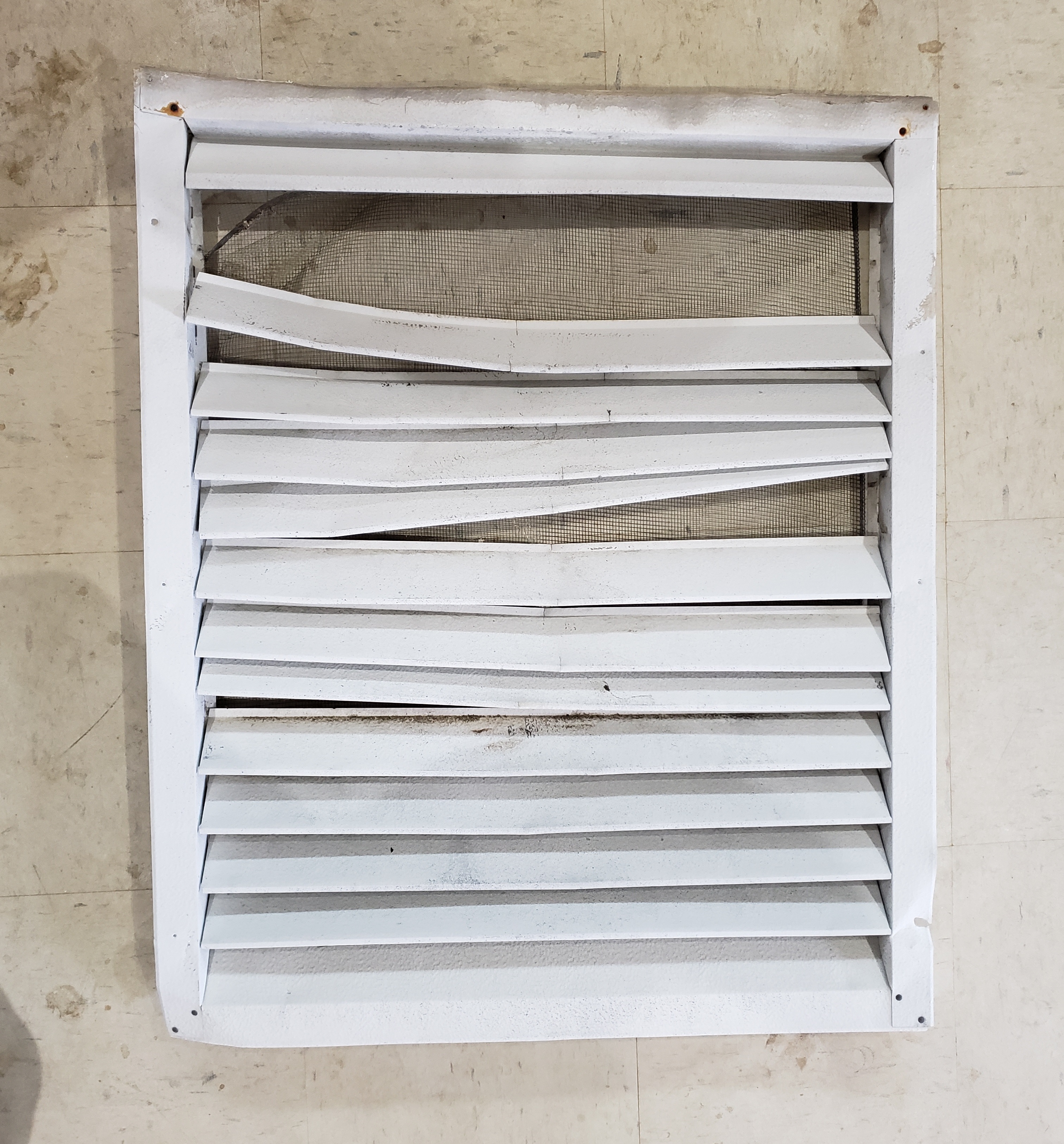

The original vent was a Home Depot special.

Nothing wrong with that, except for the durability of the vent.

Using thin, cheap replacement vents is ok for a lot but not this.

The Better Metal Squared Aluminum Attic Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	30	30	29.5	29.5	378
tip to tip of vent	30	30	30	30	392
tip to tip including flange	30	30	27	27	312

Depth: 1 inch deep

Color Options: Any .019 Aluminum Sheet Metal

Type of Nail Flange: Back Flange

Fabricated With: Aluminum Sheet Metal

Functioning: Aluminum, Vinyl screening on back, Non vented, 1/2 inch wired mesh

Browse for 30 X 30 X 1 Square vents in this vent department of Onyx Xteriors 30 x 30 aluminum gable vents with a back flange and a 1 inch depth

Put any chalked square plastic vent in the grave with a real aluminum vent for a lifetime of beauty. 30x30x1sqlvbfss

Keeping roof rats out of the loft is key. They can chew wires and start a fire.
