34 X 17 X 1 Triangle Front Flange Aluminum Louvered Exhaust Vent

To see what this vent is all about,

we'll just flip it over a few times like a pancake.

Hit a few highlights for each side.

And probably still miss the most important features.

Secure these

Triangle aluminum louvered exhaust vents

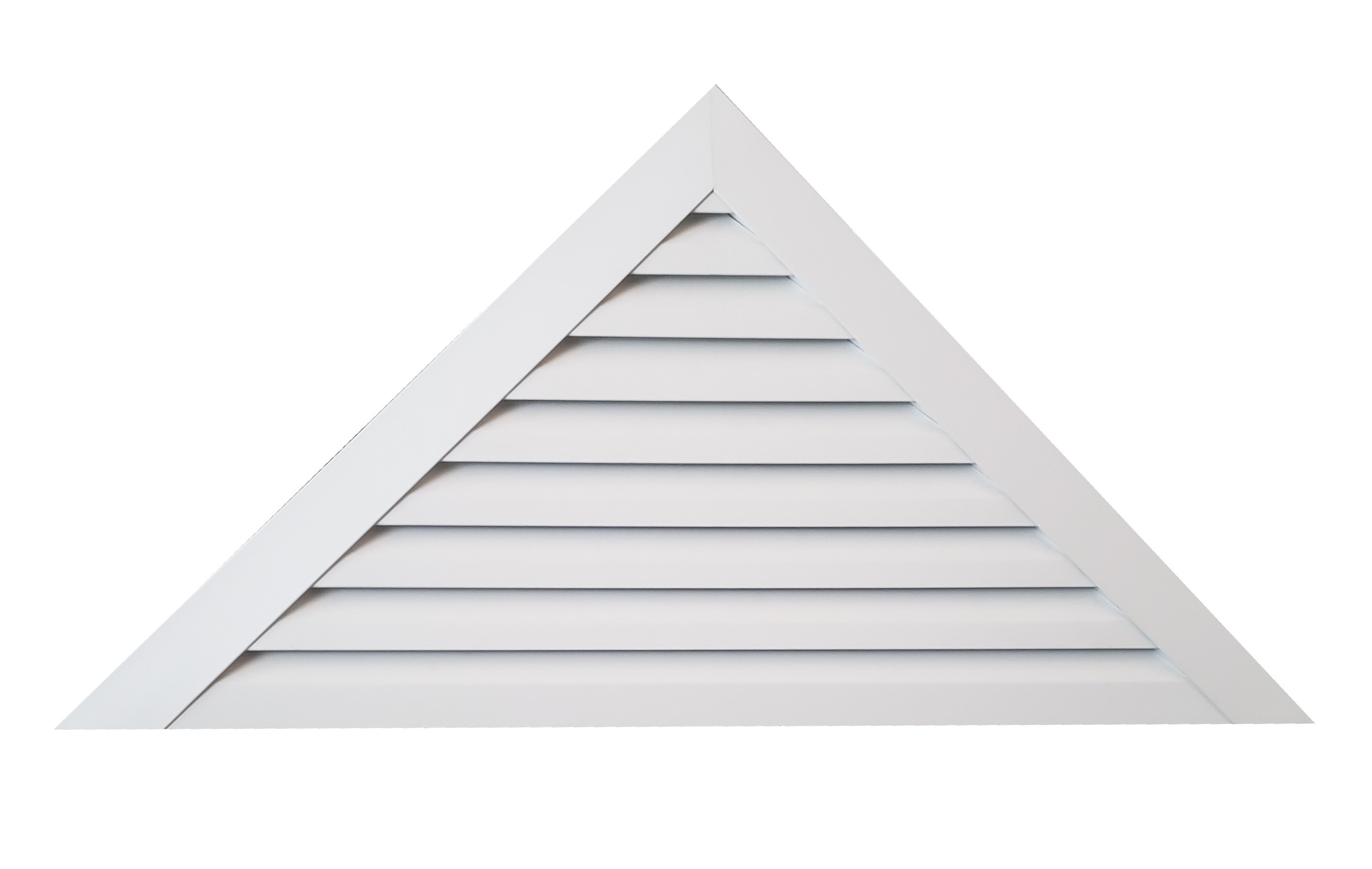

Starting with a picture of the front of this triangle vent…

First thing I notice is it looks like a right angle.

And, yes, the 34 x 17 is a 12/12 pitch.

But we are still going to ask for the measures instead of the pitch.

Why?

Well, we don't know your framer.

Was he having a bad day and cut on the wrong side of the line?

This might change the pitch to 11.8 or 12.2.

And on a triangle, that eighth of an inch cut might be 2 or more inches on a measure.

Another consideration, did the framer have a beer in his hand when he cut the rafters?

Or should he have had a beer to make the cuts more accurate?

Or did Home Depot sell him straight as a snake lumber? Hmmm...

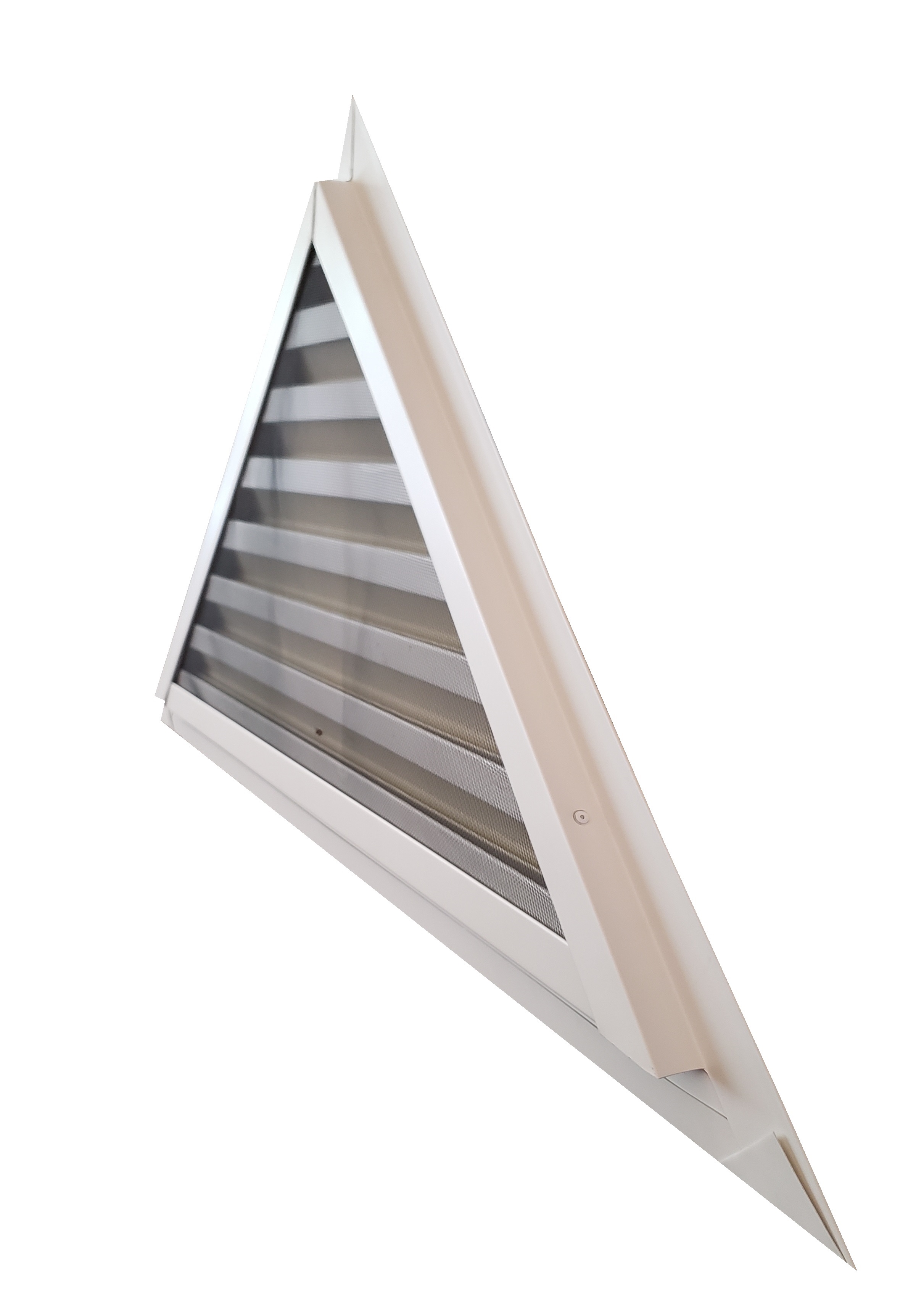

Going over to the side, I see the louvers or slats are standing straight and firm.

If a vent has sagging or loose fitting slats from the beginning,

it can only get worse.

Vinyl and plastic vents have a shelf life.

They start out pretty firm and erect.

But as they age, the heat can soften the slats and make them droopy.

And if they make it to an old age,

they tend to dry up, flake and become brittle.

Aluminum tends to age much slower.

At the age of 5, a plastic vent might look, act and work like it's 45.

Aluminum is almost ageless.

At 45, aluminum may still look as lustrious as it did at 5 years old.

Get the spatula out and flip it again.

Just like the louvers are locked onto a rail system for the framing of the vent,

the corners of the flange are turned and locked also.

There is no welding to break loose.

No staples or wood components in these vents.

And the fixed louvers are permanently fixed.

Not two part slats slid or pieced together for falling apart later.

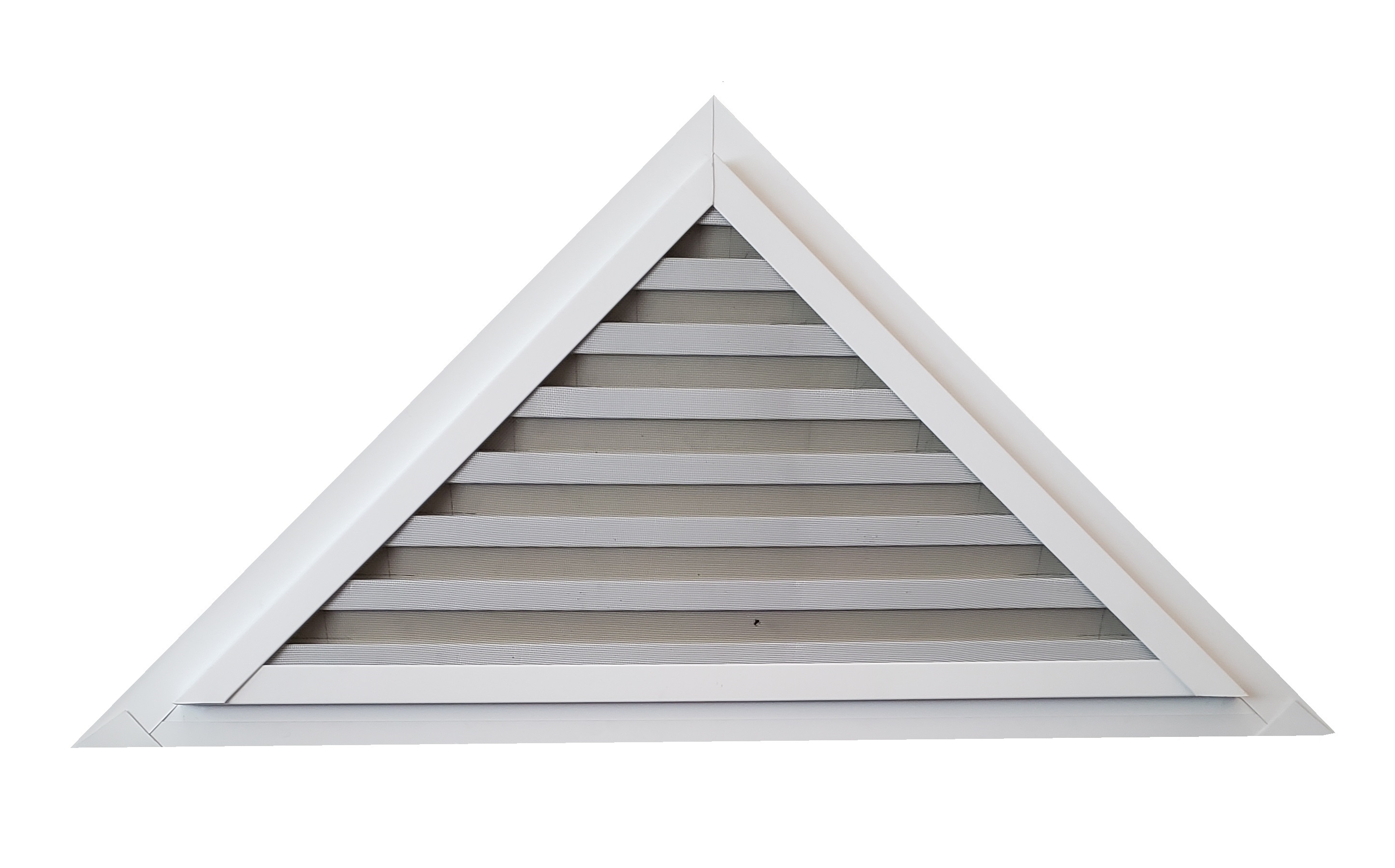

The graying seen on the back is actually the aluminum insect screen.

You may notice the bottom is boxed off instead of angled.

For years, installers have been using roof vents as wall inserts.

A roof vent has an angled base to sit on a roof.

A wall vent has a square base to sit on the framing of the wall opening.

This is so the vent doesn't try to slide out of the hole during installation.

A wall vent installs just as easy as a vinyl window.

Reinforced Three Sided Louvered Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	34	17	33.5	16.5	114
tip to tip of vent	34	17	34	17	120
tip to tip including flange	34	17	31	14	87

Depth: 1 inch thick

Colour: All .019 Aluminum Sheet Metal

Flange Type: Front Flange

Made Of: Aluminum Sheet Metal

Functioning Options: Aluminum, Black vinyl screening, Aluminum on back, Not vented

Secure these 34 X 17 X 1 Triangle vents in this vent department of Onyx Xteriors 34 x 17 aluminum louvered exhaust vents with a front flange and a 1 inch depth

The upper angles of the triangle aluminum vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 34x17x1trlvffss

Each and every aluminum attic exhausting vent prepared by using the proven ways developed with years of experience.

Someone's install went so much smoother in Los Angeles California 90042 with this being a wall vent instead of a roof vent.

What else?

Call, text or email us for a personal answer.
