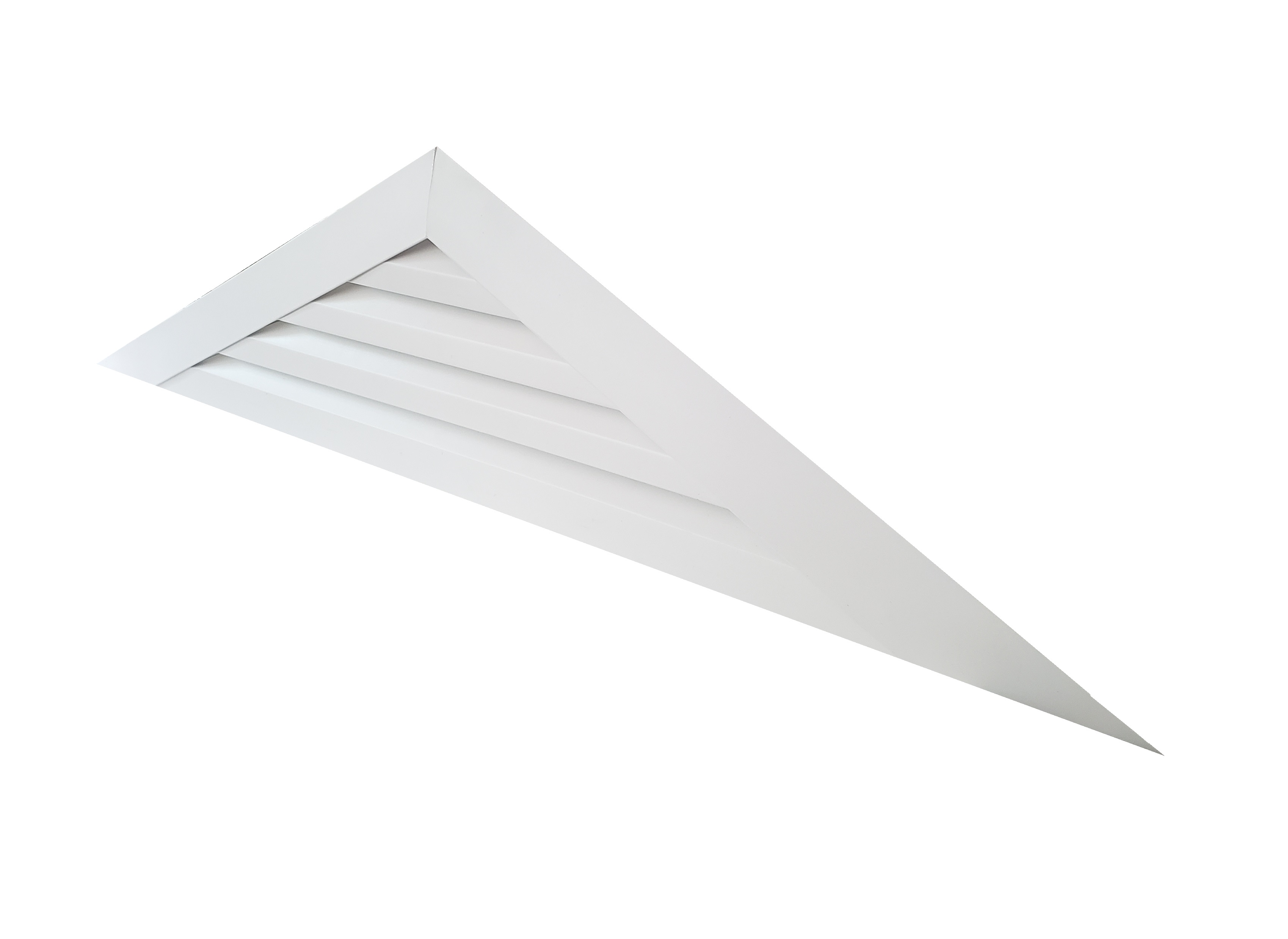

36 X 9 X 1 Triangle Front Flange Custom Louver Exhaust Vent

So thin that the louvers only have 3/4" of ventilation between the slats.

Order

The face of the vent is lined with a 2 1/2" face trim.

And 1 1/2" of that is the nail fin for neatly covering any gaps.

Also, acts as a finish trim.

Slim-line vents are only an inch thick.

They appear almost flat or paper thin.

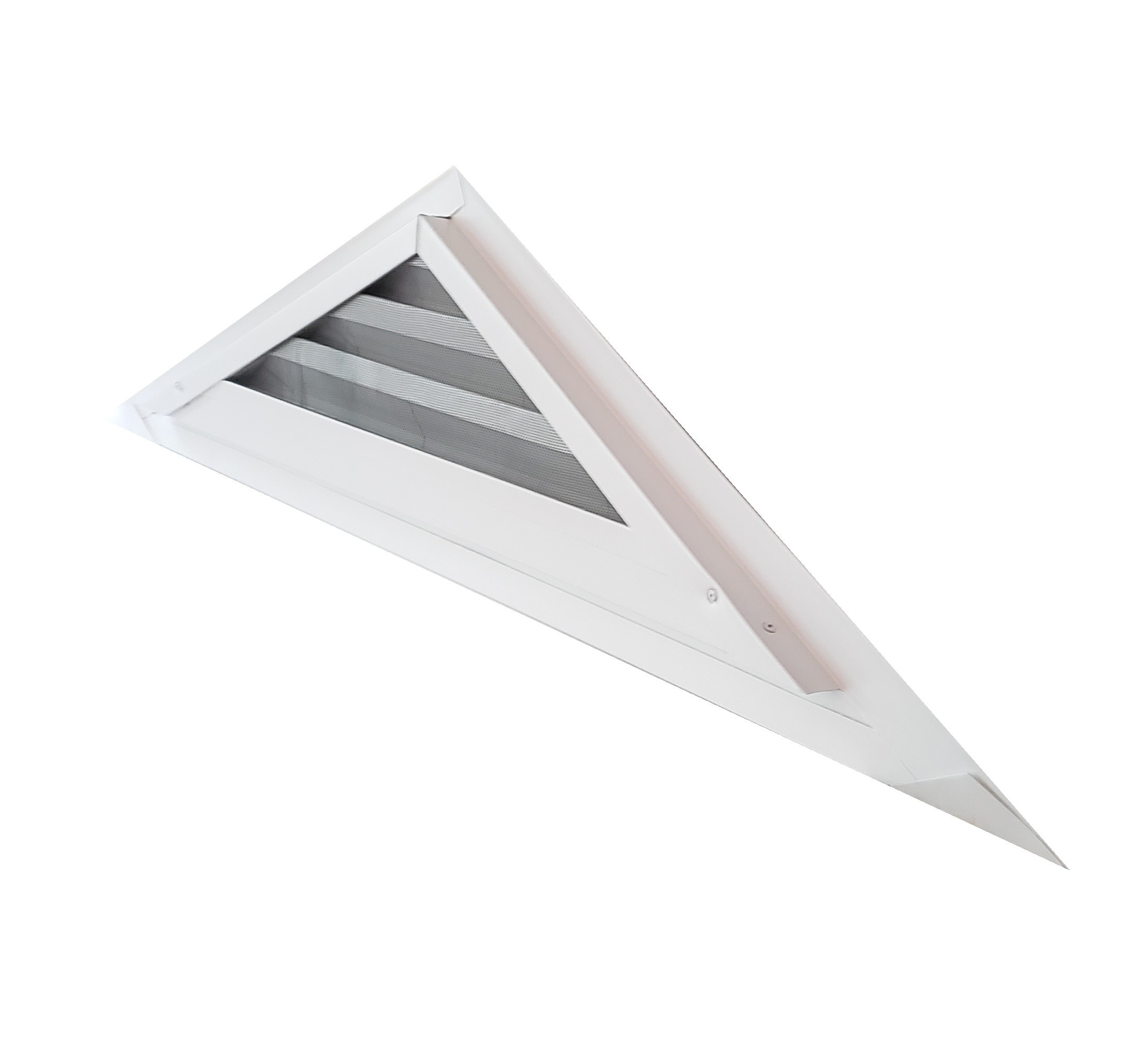

This angle of the triangle shows the vent depth well.

Baked on white aluminum coil made this vent.

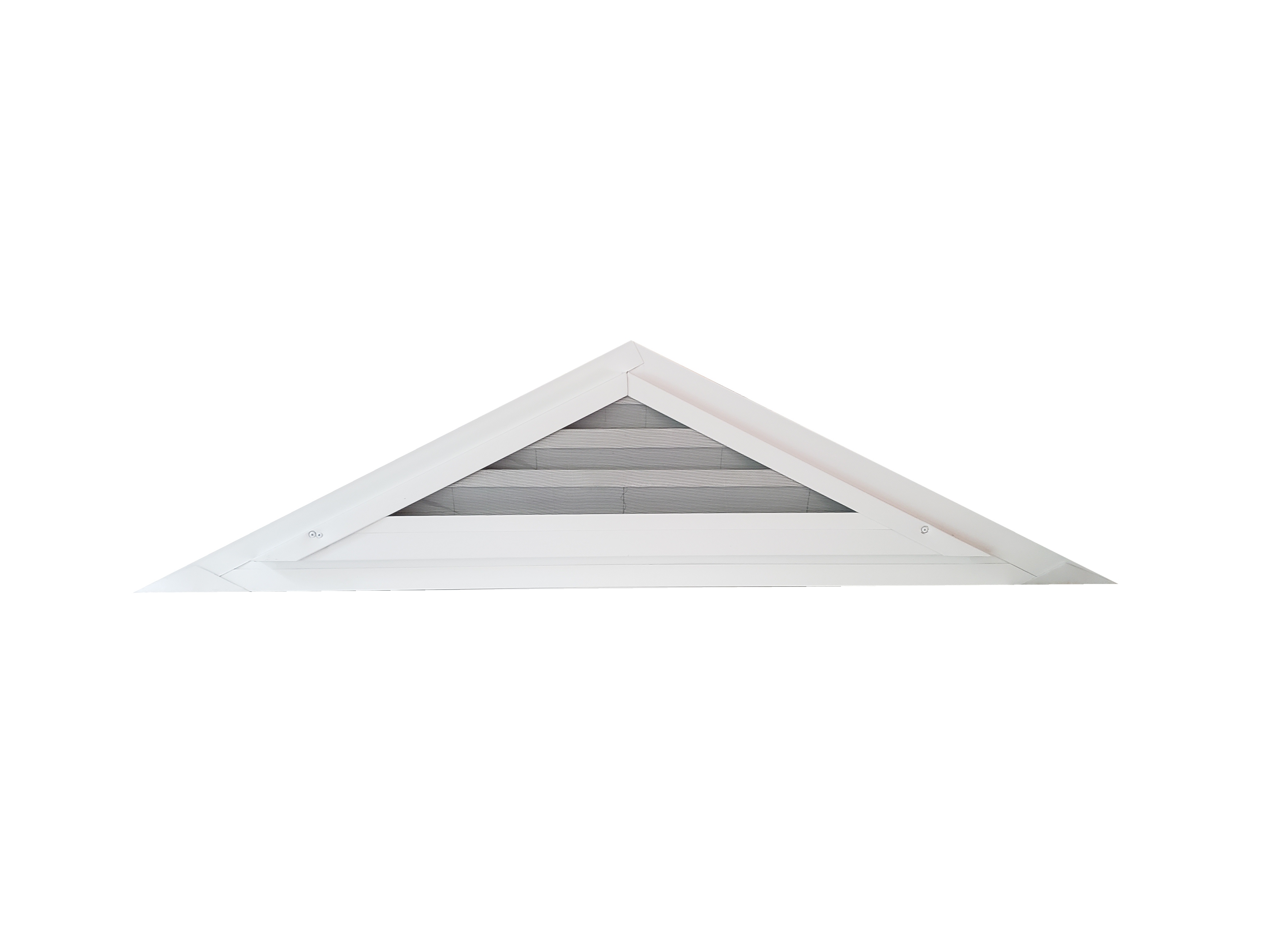

With the accessory of aluminum screen to keep bumble bees and carpenter bees out.

Reinforced Metal Three Sided Custom Louvre Exhaust Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	36	9	35.5	8.5	54
tip to tip of vent	36	9	36	9	59
tip to tip including flange	36	9	33	6	31

Depth: 1 inch deep

Finish Color Options: All Trim Coil

Type of Nail Flange: Front Flange

Material: Sheet Aluminum

Functional: Aluminum, Vinyl, Metal back, Aluminum

Order 36 X 9 X 1 Triangle vents in this extensive assortment for 36 x 9 custom louver exhaust vents with a front flange and a 1 inch depth

The top angles of the triangle vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 36x9x1trlvffss

These may not be appreciated as much upon the order. But when your neighbor is again replacing their vent and you are not, then just sit back and watch. You have earned it.

These vents are housed in Ellington Connecticut 06029 for a lifetime
