38 X 25 X 1 Square Front Flange Custom Aluminum Exhaust Vent

As a 1 inch louver vent, the slats

will be faced 1 inch and spaced 1 inch.

The nailer gives a 2 1/2 inch finished trim

with a wall coverage of an inch and a half.

Procure these

Square custom aluminum exhaust vents

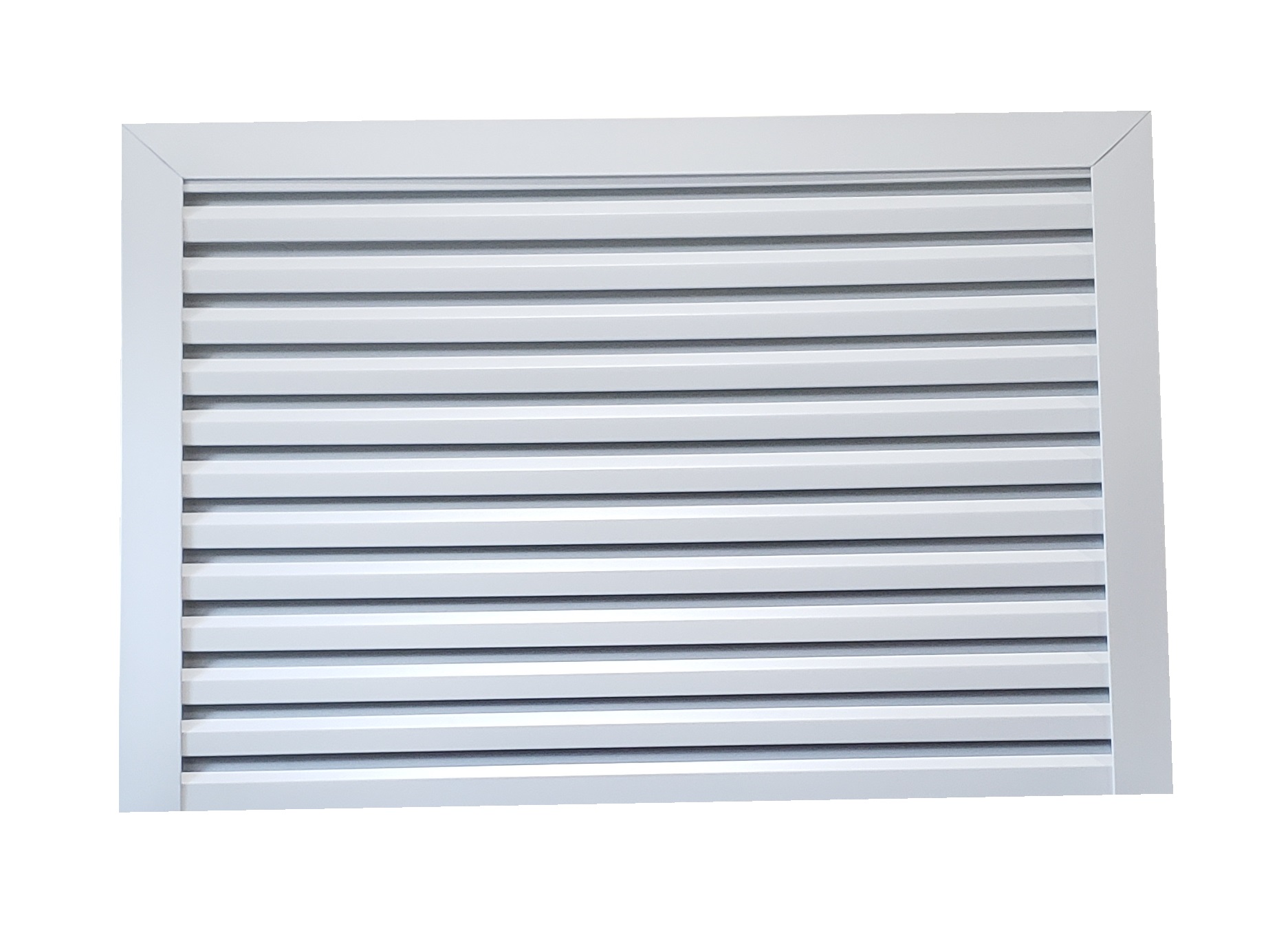

The face trim can be left as a finished trim.

Hide the fastening screws sideways behind the louver faces.

Just fasten straight through the vent wall

instead of through the face of the vent nail fin.

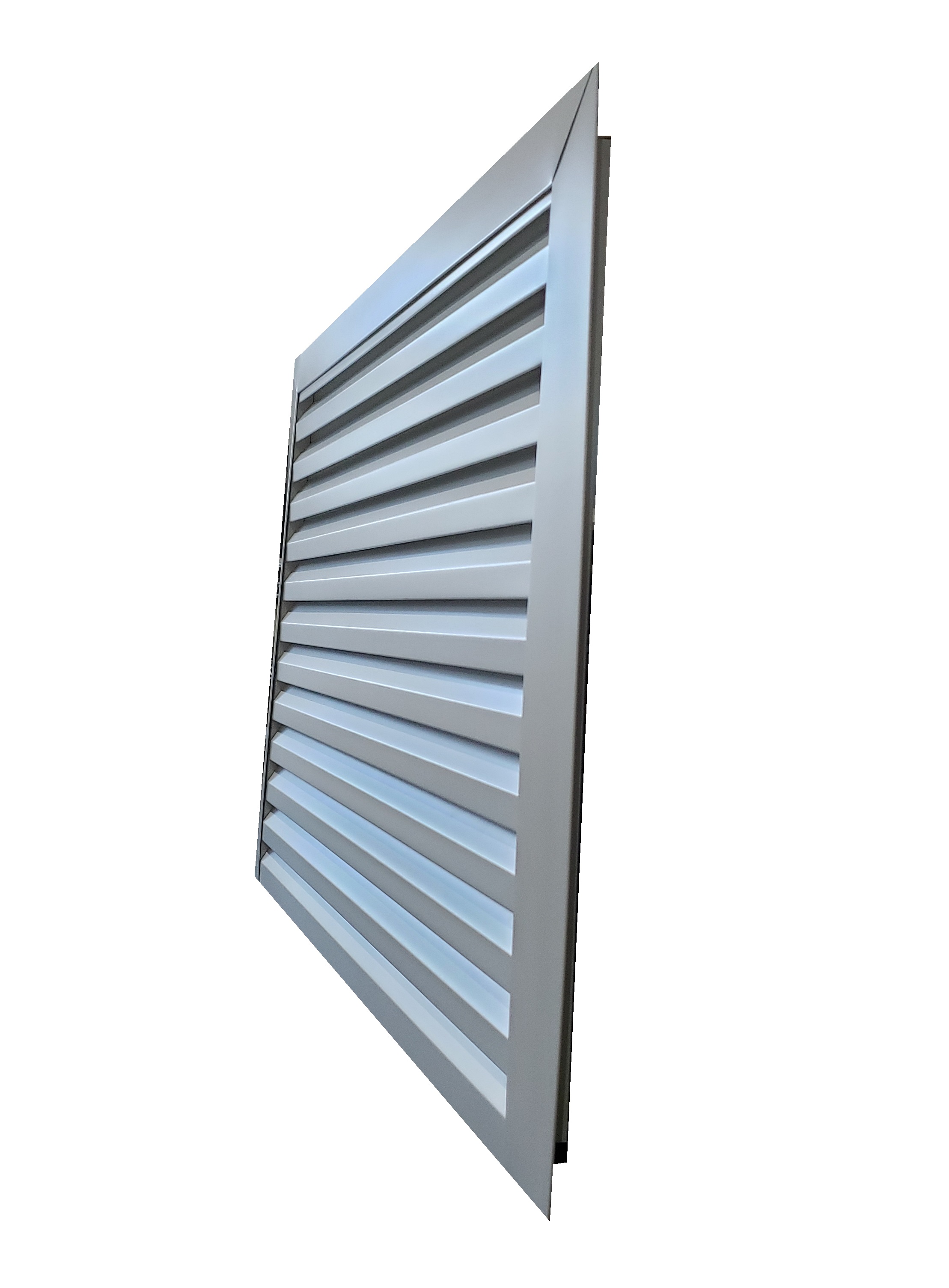

This angle really shows how much of a slim line vent this is.

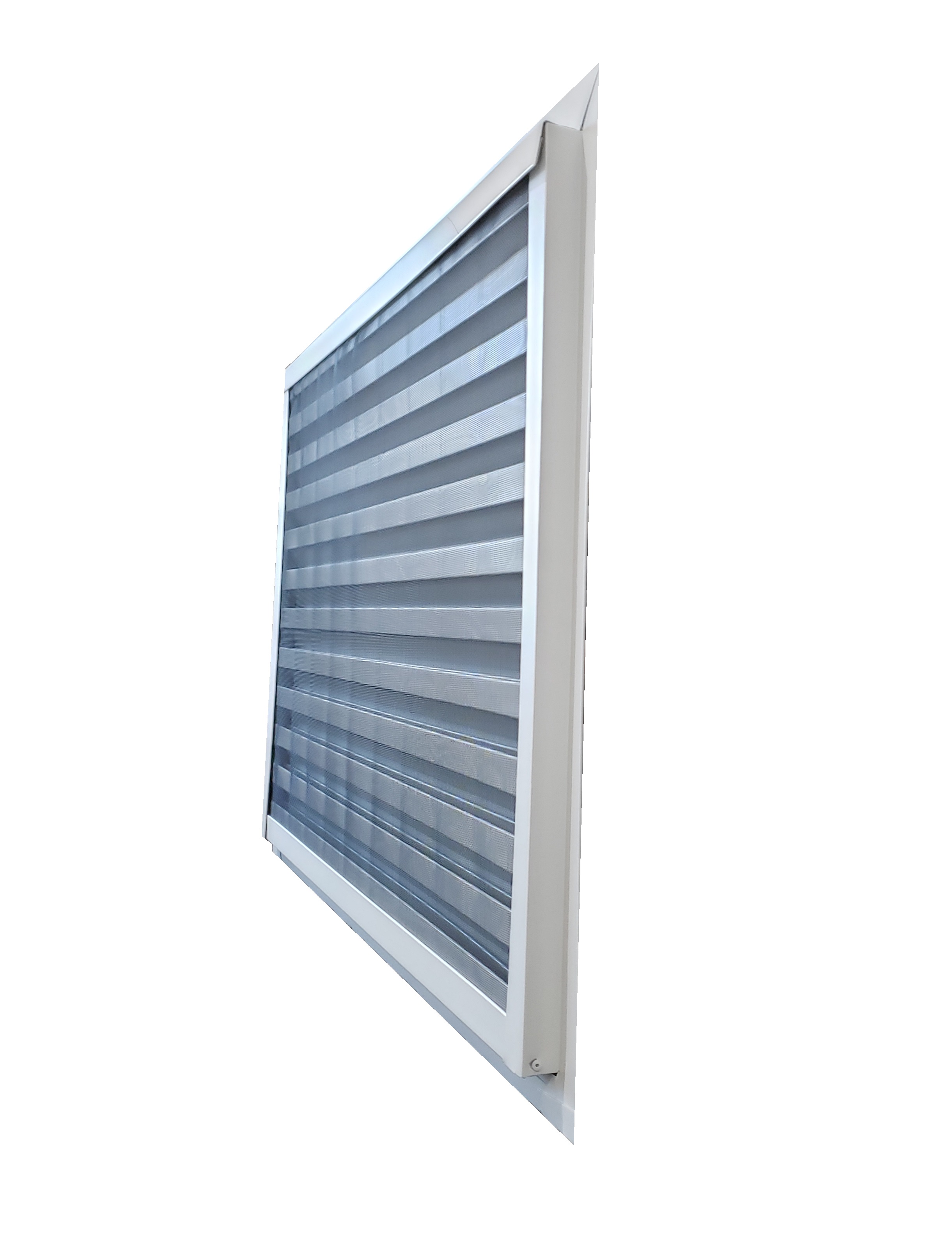

The rear of the vent will only protrude through the wall 1 inch.

The face flange will sit flush to the wall exterior.

Since most wall sheeting is about an inch,

no studs need cutting.

So, the framing of the attic (rafters)

will stay fully intact.

The front flange works great with

wood siding, Hardie Plank, composite siding

and even T-111 wall boards.

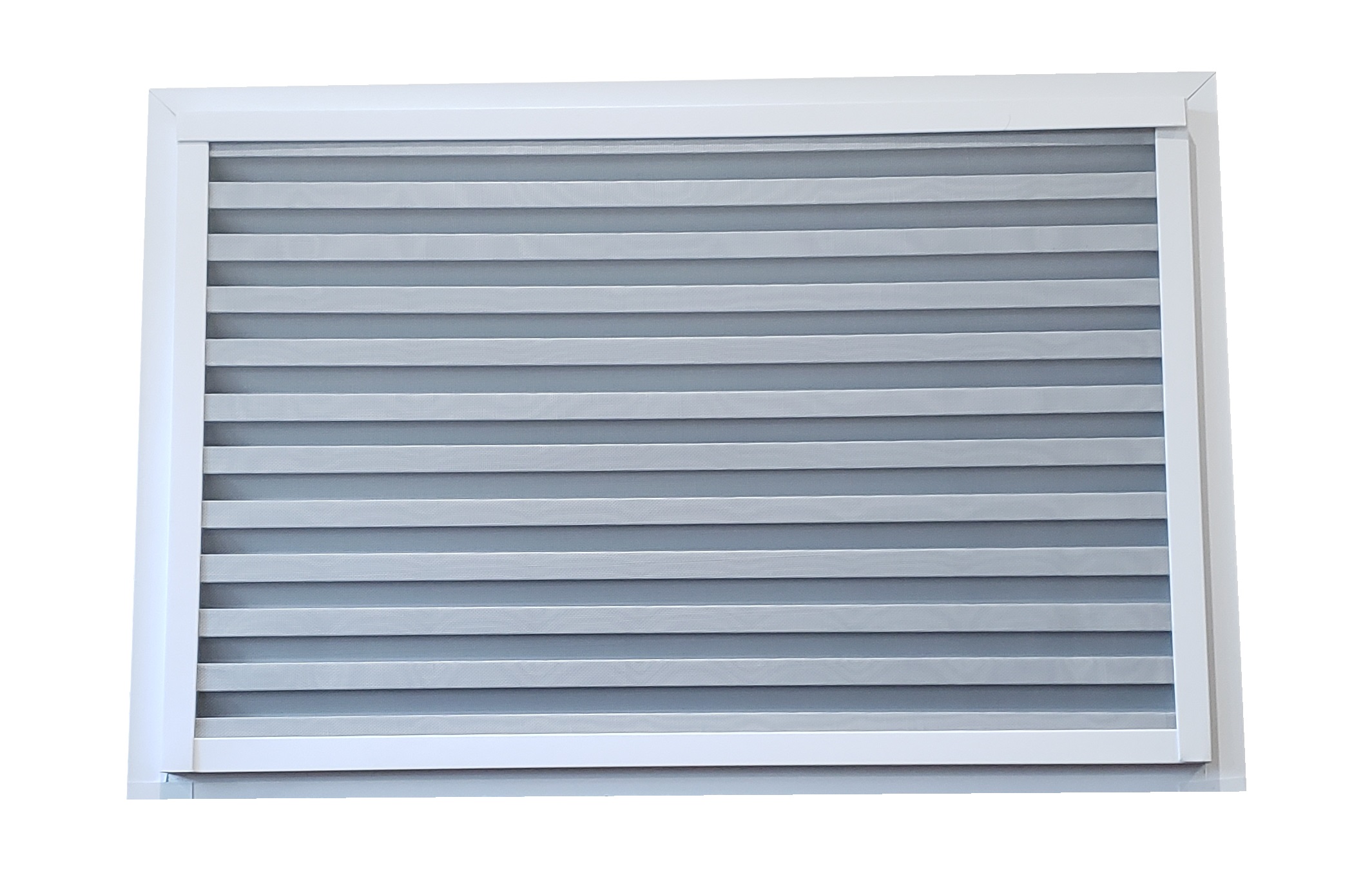

By applying aluminum bug screen to the rear,

insects such as wasps, grasshoppers, bees and mosquitos

cannot enter the attic through the louver area.

Reinforced Right Angle Garret Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	38	25	37.5	24.5	399
tip to tip of vent	38	25	38	25	414
tip to tip including flange	38	25	35	22	330

Depth: 1 inch vent wall

Color Coatings: All .019 Trim Coil Colors

Nail Flange Type: Front Flange

Material: Aluminum, Metal

Screening Options: Aluminum, Vinyl screening, Aluminum screening, Solid aluminum back

Procure these 38 X 25 X 1 Square vents for the most durable 38 x 25 custom aluminum exhaust vents with a front flange and a 1 inch depth

Put any drooping square vinyl vent in it's grave by replacing it with a real aluminum vent for a lifetime of protection. 38x25x1sqlvffss

Professional contractors know the distinction of a good product and a poor one.

These are now housed in St Glendale California 91206

What else?

Call, text or email us for a personal answer.
