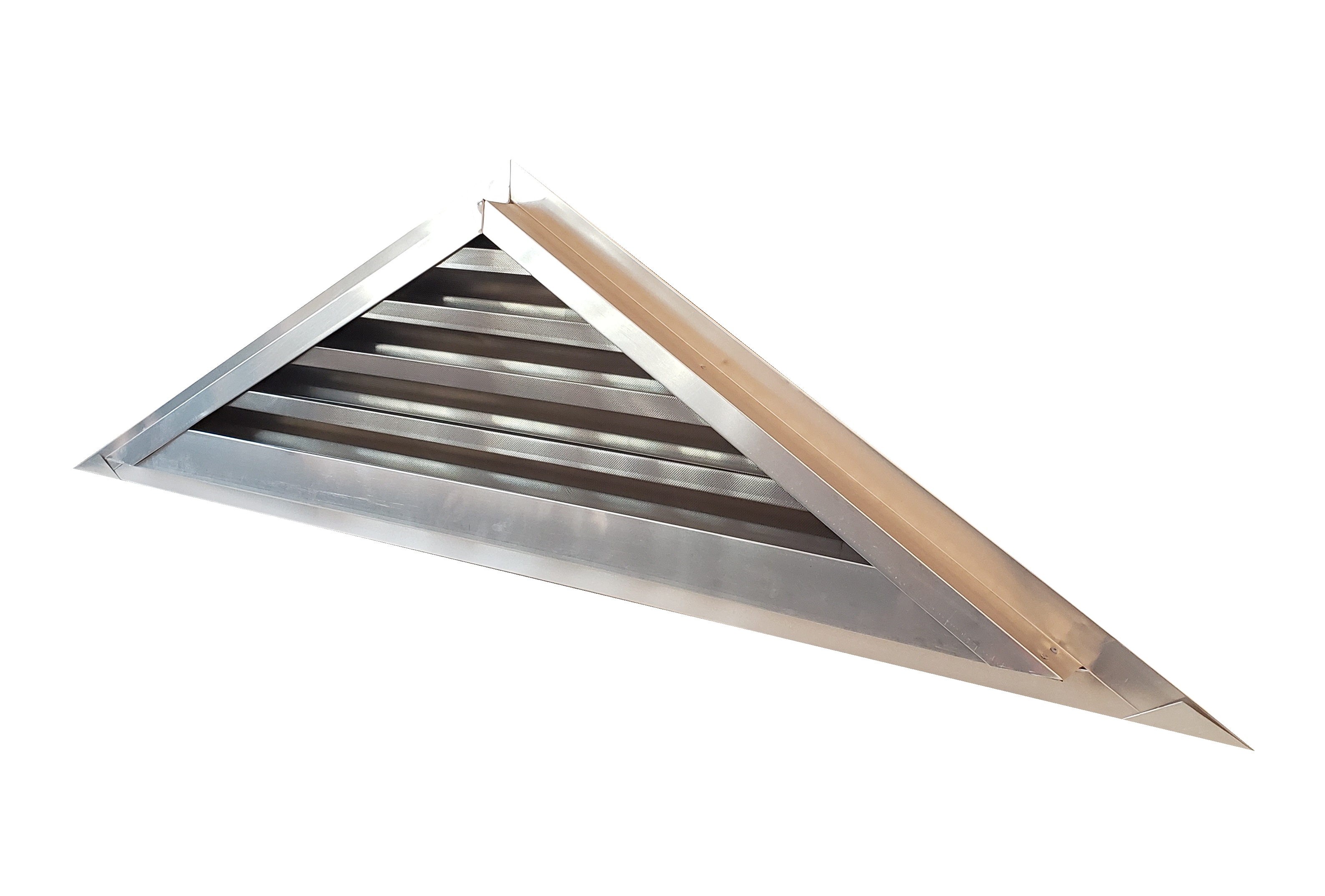

Raw Mill is what raw silver aluminum is called in sheet metal.
Raw aluminum cannot be painted as it is.
For painting, it needs a wayne's coat or metal primer first.
The paint will then adhere.
0
Triangle louvered metal vents

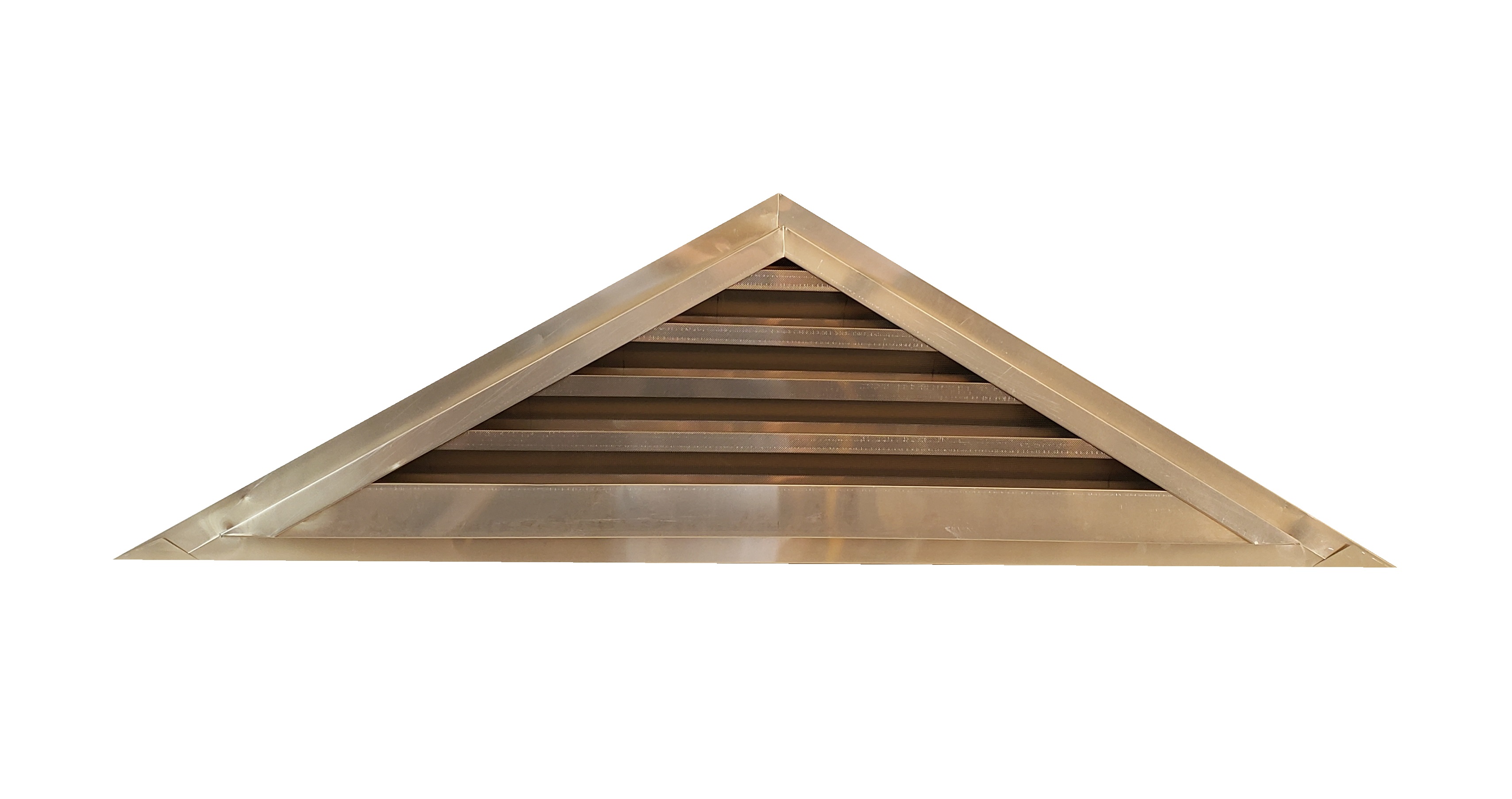

Featured here is a 50 x 14 x 2 triangular vent.
This renders a 6.7 roof pitch also referenced as a 7/12 pitch.
Measures are of the base length and center height instead of the pitch.
Using the roof pitch can be off by a few inches depending on the framers cut.
By cutting on one side of the line or the other.
This 7:12 pitch was reduced to 6.7 due to a bad cut.
The true 7 pitch would have been 48 x 14.
This front flange was set at 1 1/2 inchs all the way around the vent.
Apply the wall cladding.
Then slide the triangle vent in and done.
Fasteners can be hidden behind the louver faces.
The vent itself is the measures ordered.
The nailer extends from the vent to cover any gappage from the rough opening.
The rear is finished off with an aluminum screen.
And all three corners are properly locked together.
50 X 14 X 2 Triangle vent in this tremendous collection of 50 x 14 louvered metal vents with a front flange and a 2 inch depth
The top angles of this triangle louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 50x14x2trlvffss
Fashioned to assist in the temperature and airflow regulation of the attic.
This renders a 6.7 roof pitch also referenced as a 7/12 pitch.
Measures are of the base length and center height instead of the pitch.
Using the roof pitch can be off by a few inches depending on the framers cut.
By cutting on one side of the line or the other.
This 7:12 pitch was reduced to 6.7 due to a bad cut.
The true 7 pitch would have been 48 x 14.
This front flange was set at 1 1/2 inchs all the way around the vent.
Apply the wall cladding.
Then slide the triangle vent in and done.
Fasteners can be hidden behind the louver faces.
The vent itself is the measures ordered.
The nailer extends from the vent to cover any gappage from the rough opening.
The rear is finished off with an aluminum screen.
And all three corners are properly locked together.
Stronger Metal Triangle Metal Loft Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 50 | 14 | 49.5 | 13.5 | 136 | |
| tip to tip of vent | 50 | 14 | 50 | 14 | 144 | |
| tip to tip including flange | 50 | 14 | 47 | 11 | 101 |
Depth: 2 inch thick
Color Options: Any Aluminum Coil
Nail Flange Type: Front Flange
Built With: Aluminum
Functional: Aluminum, Black vinyl screen, Half inch wired mesh, Non functional
Fashioned to assist in the temperature and airflow regulation of the attic.
