A true 8/12 pitch triangle gable vent is shown here as 54 x 18.
This means the vent angle rises eight inches per every foot across half of the base of the vent.
So, taking the 54 inchs divided by 2 for half the base. 27
Then 27 divide by 12 inches. 2.25
And multiply 2.25 times the 8 pitch. 18
0
Triangle metal garret vents
These slats are spaced 1 inch with a louver face of 1 inch for a cemetrical appearance.

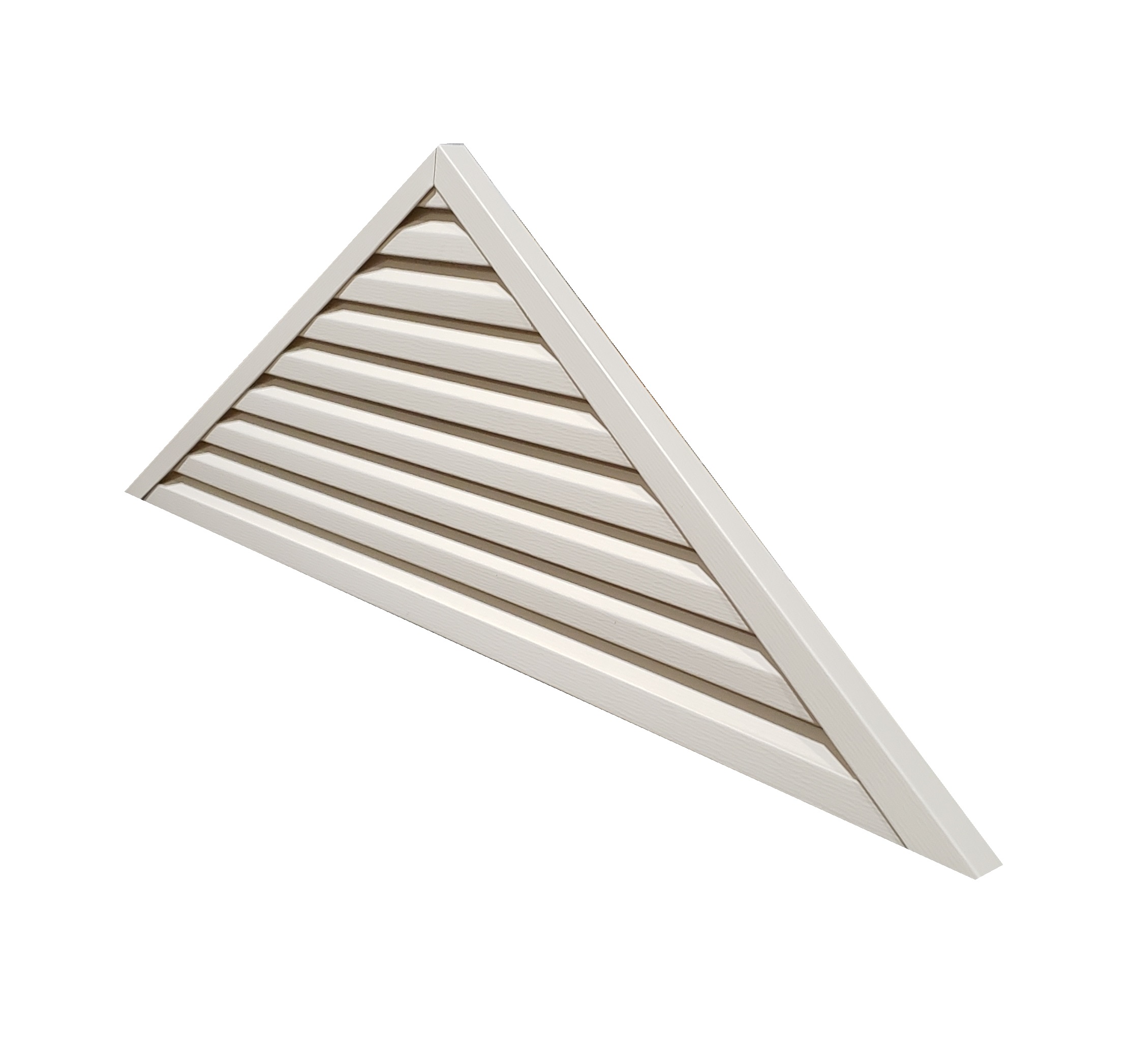

The golden sunny color of this vent is Certain Teed Heritage Cream.
The one inch depth of the vent allows it to be inserted into an opening or mounted outside an attic wall.

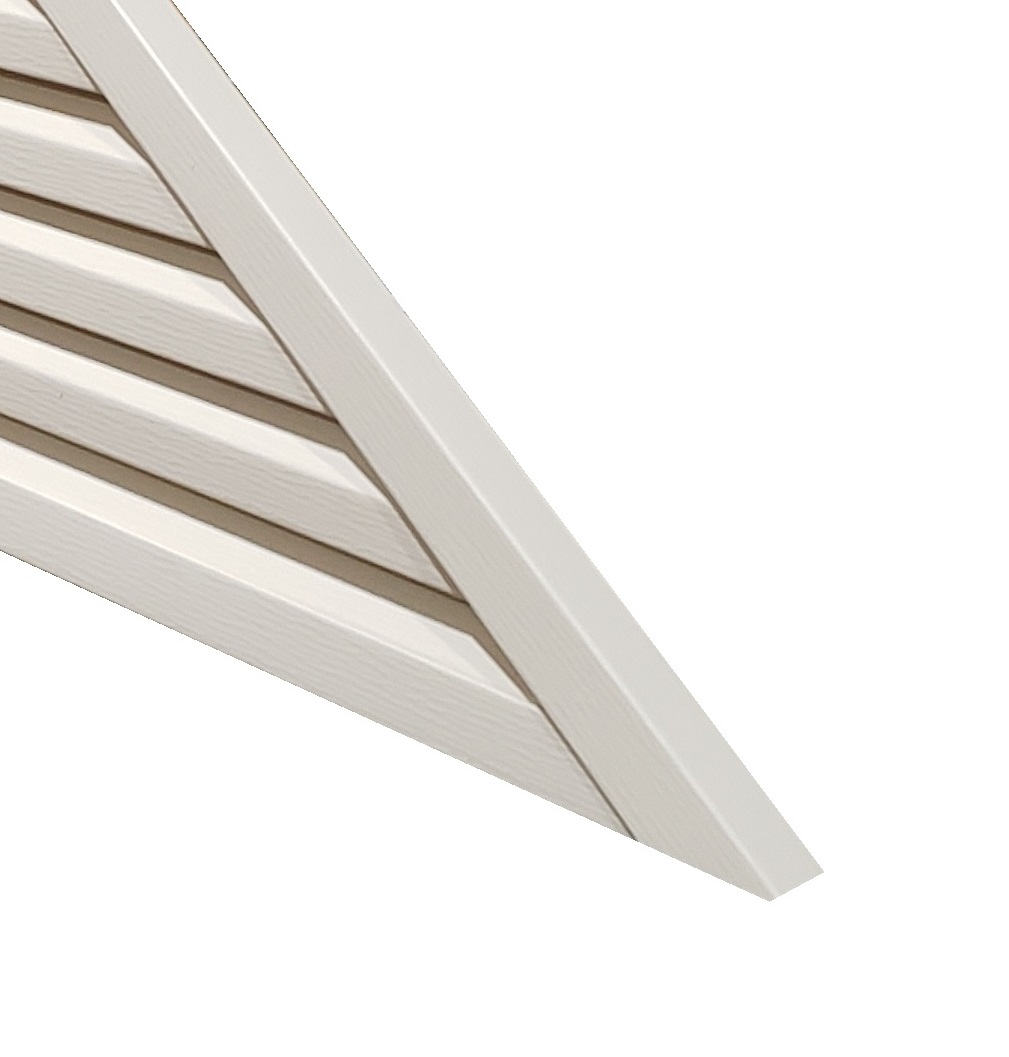

How about a closer view?
And now, to keep out bugs, aluminum screening was applied.
And squirrels, raccoons, roof rats will have issues with their entry cause wire mesh was also added.
54 X 18 X 1 Triangle vent for the right 54 x 18 metal garret vents with a no flange and a 1 inch depth
The side angles of the triangular louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 54x18x1trlvnfss
Onyx Xteriors Balancing water protection and maximizing ventilation.
Shipped to Livingston, LA
The golden sunny color of this vent is Certain Teed Heritage Cream.
The one inch depth of the vent allows it to be inserted into an opening or mounted outside an attic wall.
How about a closer view?
And now, to keep out bugs, aluminum screening was applied.
And squirrels, raccoons, roof rats will have issues with their entry cause wire mesh was also added.
😋
The Stronger Triangle Metal Crawlspace Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 54 | 18 | 53.5 | 17.5 | 199 | |
| tip to tip of vent | 54 | 18 | 54 | 18 | 208 | |
| tip to tip including flange | 54 | 18 | 54 | 18 | 208 |
Depth: 1 inch
Finish Color Options: Any Aluminum Coil Color
Flange: No Flange
Manufactured With: Metal, Aluminum
Functioning: Aluminum, Black vinyl screen on back, Wire cloth, Not functional
Onyx Xteriors Balancing water protection and maximizing ventilation.
Shipped to Livingston, LA
