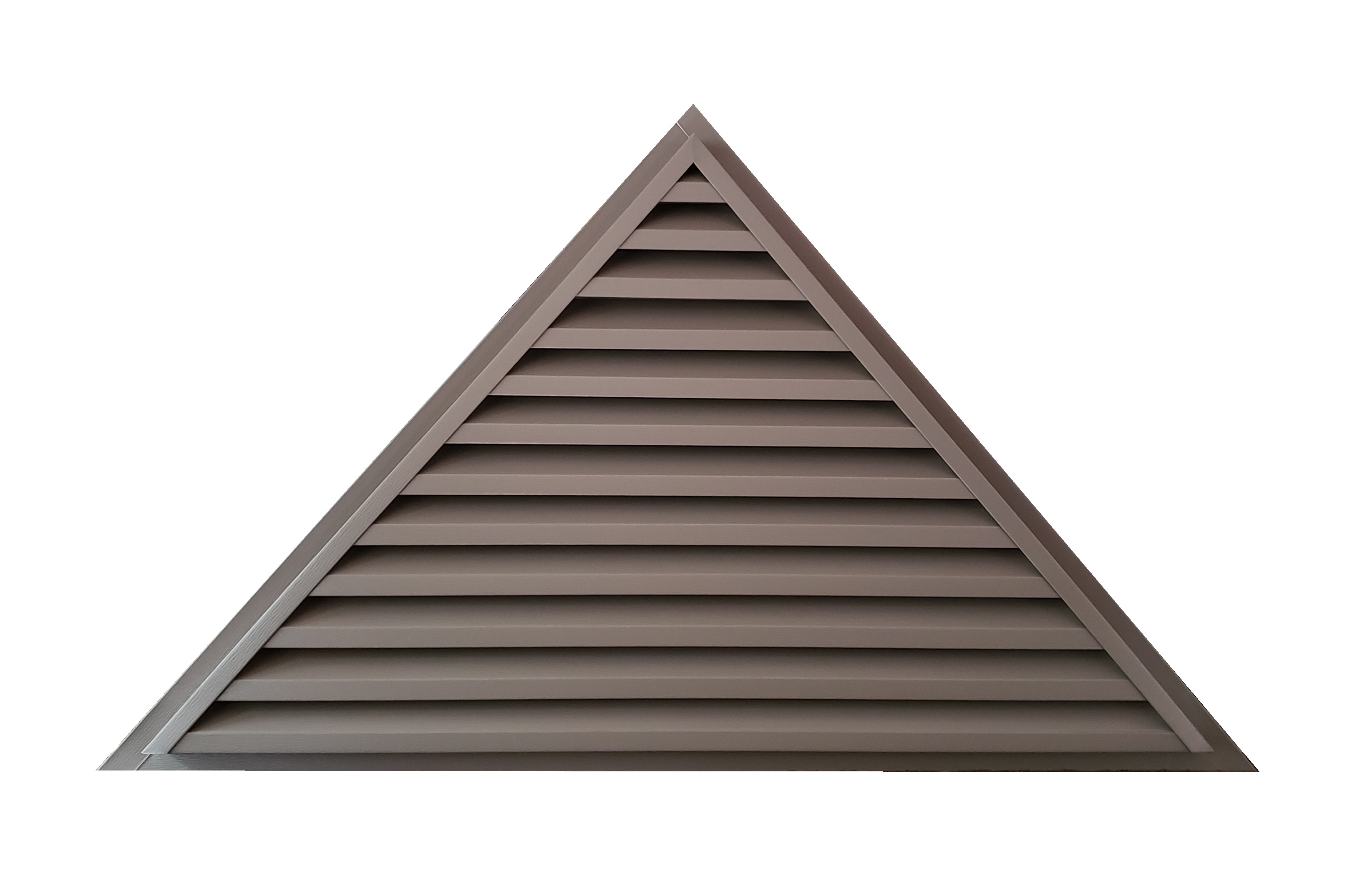

This rear flanged triangle vent is designed for stucco.
The vent measures 54 at the base and 32 up the center height.
The sharp angle of this vent is because it was set as a 14/12 pitch.
0
Triangle aluminum louvre vents
Although the longer louvers at the bottom are heavier and span longer than the top, they stand just as straight as all of them.
The nailer is found on the back at a standard 1 1/2 inch.
This acts as the water flashing for this vent.
The color chosen was CertainTeed Sable Brown PVC coated.
A dark color, yet it brightens to gable wall depending upon the accenting wall color chosen.

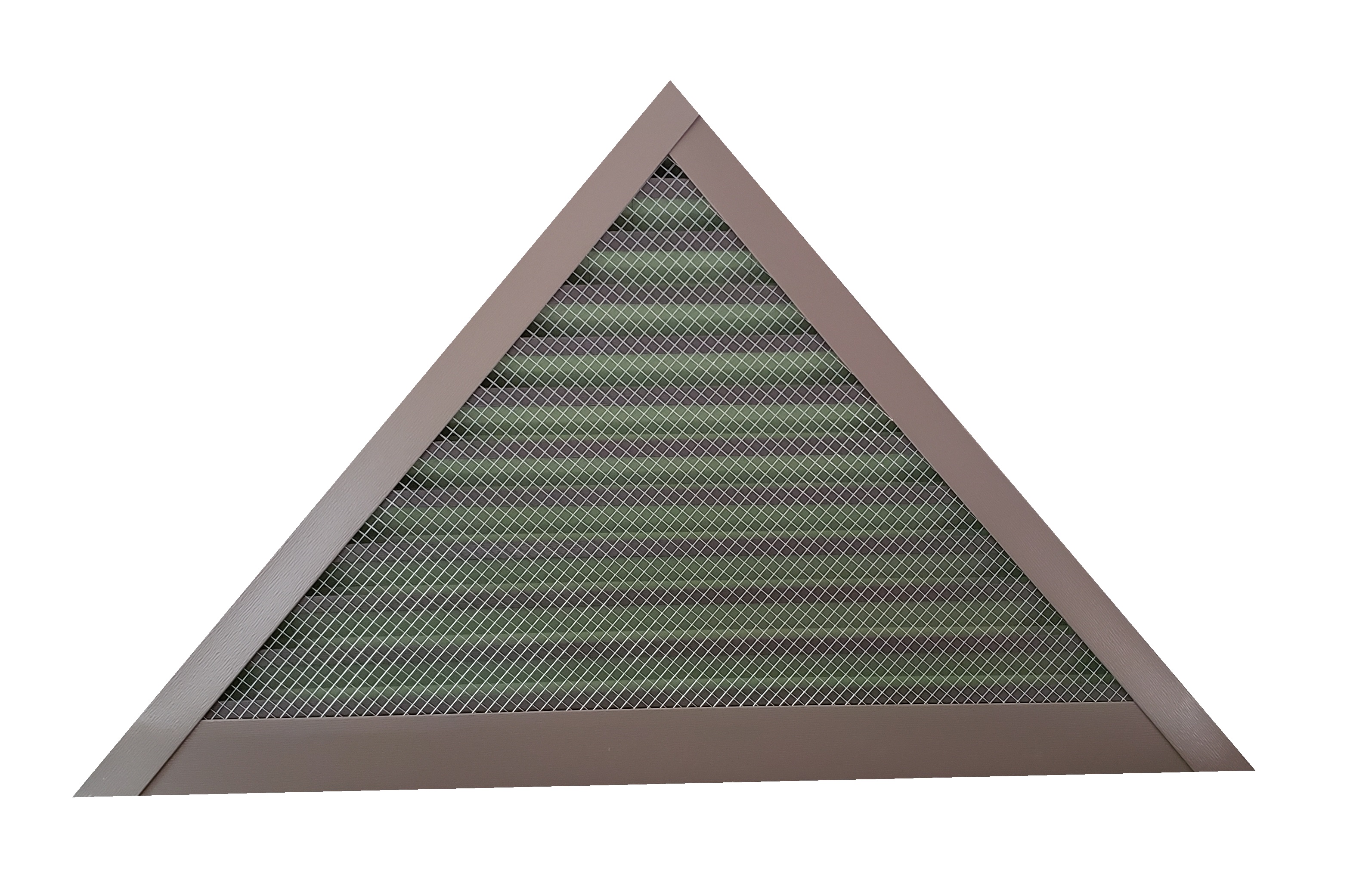

For the back, aluminum screen with 1/2 wire mesh added.
This is serious critter prevention.
54 X 32 X 2 Triangle vent for the best fitting 54 x 32 aluminum louvre vents with a back flange and a 2 inch depth
The angles of the triangle louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 54x32x2trlvbfss
Doubling as a source of fresh air and a focal point on any home, custom gable intake vents are perfect for fusing function with fashion.
The nailer is found on the back at a standard 1 1/2 inch.
This acts as the water flashing for this vent.
The color chosen was CertainTeed Sable Brown PVC coated.
A dark color, yet it brightens to gable wall depending upon the accenting wall color chosen.
For the back, aluminum screen with 1/2 wire mesh added.
This is serious critter prevention.
Triangled Louvered Aluminum Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 54 | 32 | 53.5 | 31.5 | 379 | |
| tip to tip of vent | 54 | 32 | 54 | 32 | 390 | |
| tip to tip including flange | 54 | 32 | 51 | 29 | 330 |
Depth: 2 inch thick
Finish Options: All Sheet Metal
Nail Fin: Back Flange
Composite: All Aluminum Metal
Functioning: Aluminum, Vinyl, Wire mesh, Metal back
Doubling as a source of fresh air and a focal point on any home, custom gable intake vents are perfect for fusing function with fashion.
