60 X 12 X 1 Cathedral Front Flange Custom Aluminum Vent

Frontal nail fins are very easy for almost any install.

That is why the front flange is refered to as universal.

Look for

Cathedral custom aluminum vents

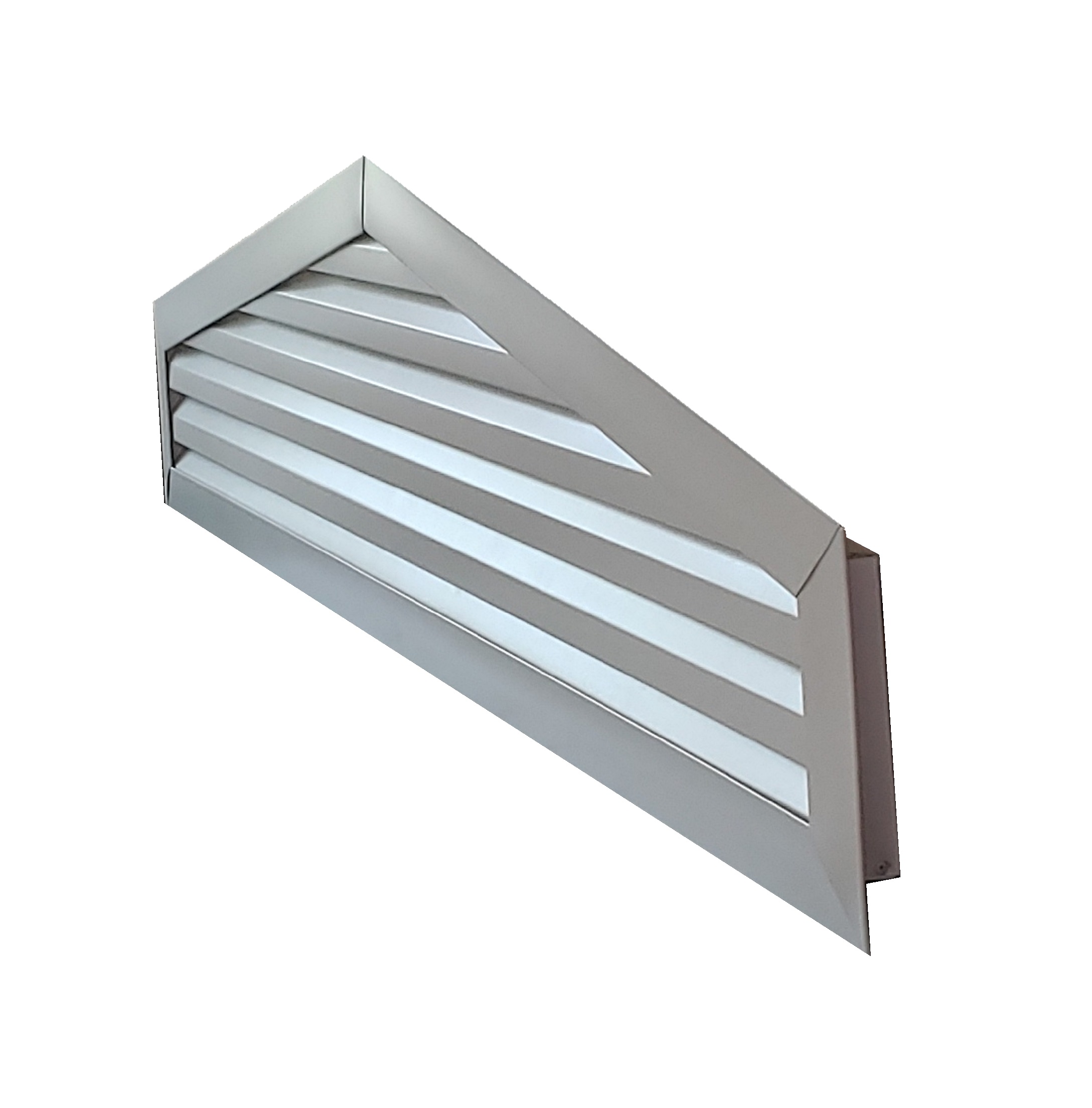

This Cathedral Louver is 60 wide and 12 tall with a 6 inch leg.

These measures are of the vent box itself.

The nail fin extends out from the vent wall.

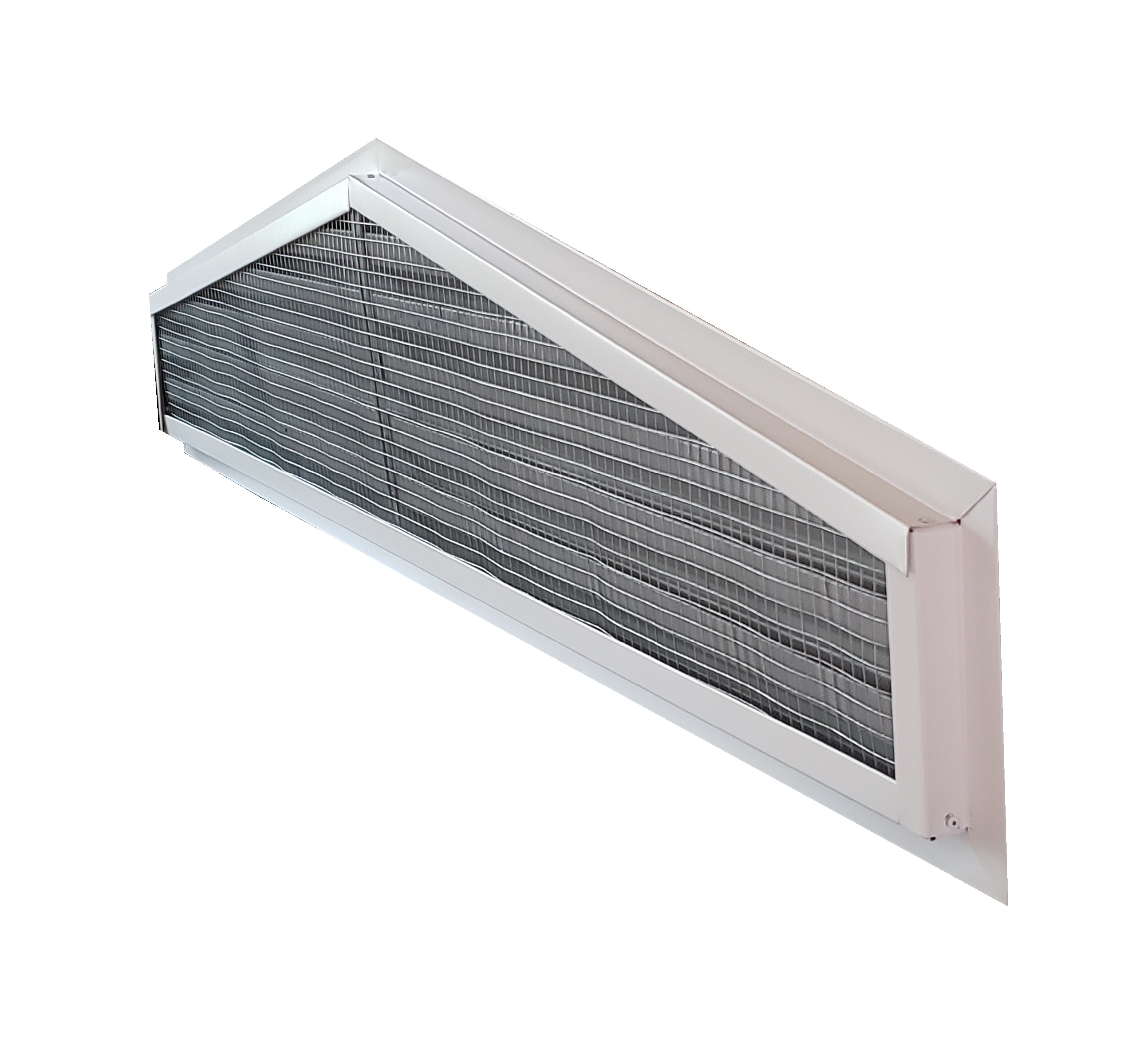

Here it is visible for the vent back protruding behind the flange to enter the wall.

Also, thre is an added back brace for the long louvers.

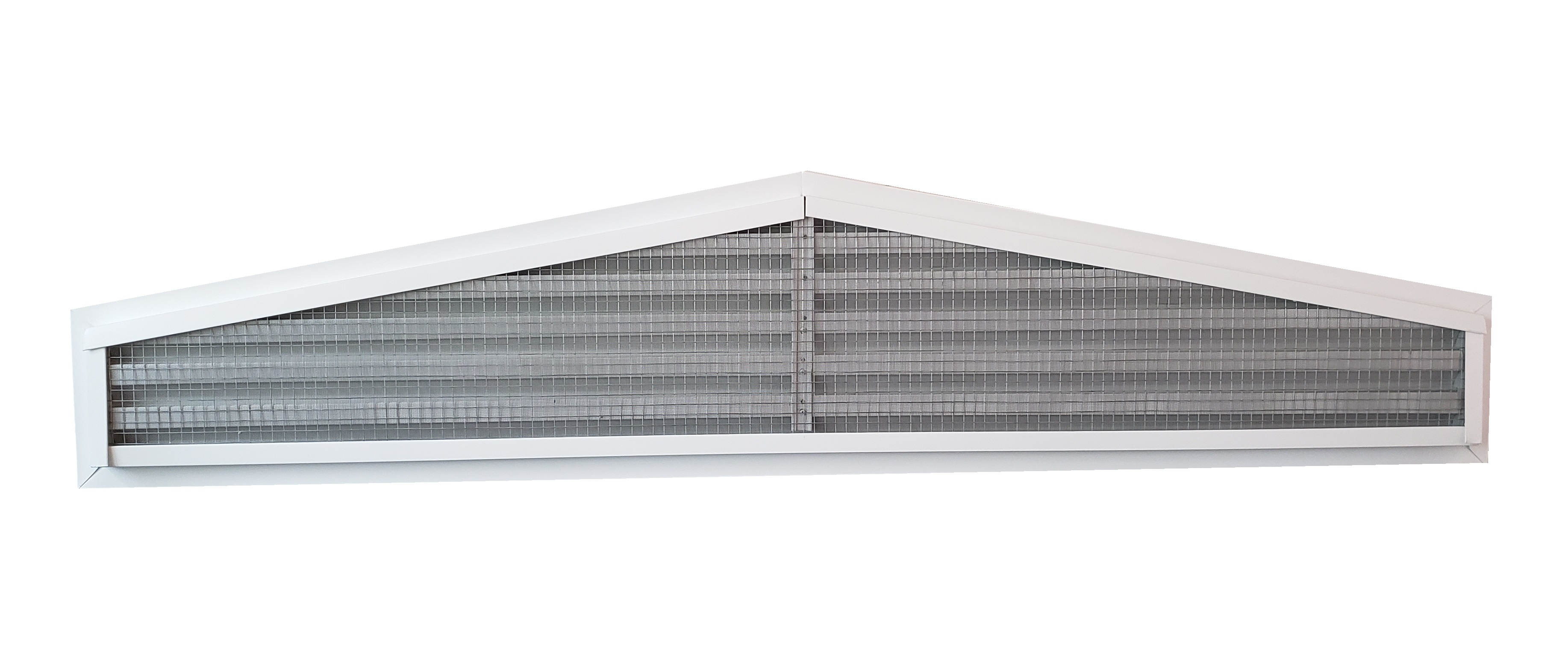

Also, the hardware cloth to keep out large critters such as raccoons, squirrels and roof rats.

Behind that is the aluminum screen for wasps, grasshoppers and mosquitoes.

Better Metal Gable Topped Aluminum Loft Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	60	12	59.5	11.5	245
tip to tip of vent	60	12	60	12	261
tip to tip including flange	60	12	57	9	173

Depth: 1 inch thick

Finish Color Options: Any .019 Aluminum Sheet Metal Colors

Nailer: Front Flange

Formed Of: Sheet Aluminum

Screen: Aluminum, Black vinyl screening, Not vented, Hardware cloth

Look for 60 X 12 X 1 Cathedral vents in this huge selection of 60 x 12 custom aluminum vents with a front flange and a 1 inch depth

The Cathedral custom aluminum vent is a simple square with a slanted top. The top usually follows the angled pitch of the roofline. How to measure for a Cathedral vent is quicker than one could have thought. Forget the angling top and focus to the rectangular majority of it. The wide measure, the side leg height and the overall center height are the three measurements needed to buy one of these 60 x 12 cathedral front flange vents and it work correctly the first time.

60x12x1ctlvffss

Keeping opossums out of the loft is key. They will gnaw electric wires and start a fire.

What else?

Call, text or email us for a personal answer.

901.281.2887 contactus@onyxxteriors.com
