Florida has extreme water related weather as we all know.
Wind and storm driven rain falling down, blowing sideways and forced straight upwards.
Usually we suggest a 5.5 inch deep vent for coastal regions.
Procure these
Triangle custom aluminum exhaust vents
A 3.5 inch deep was adequate for this low slope triangle vent that now calls Punta Gorda home.
This odd ball pitch measures out to be a 4.6 on 12 roof pitch.
The front nail fin is used as a finish trim.
It provides plenty of coverage to hide any framing gaps.

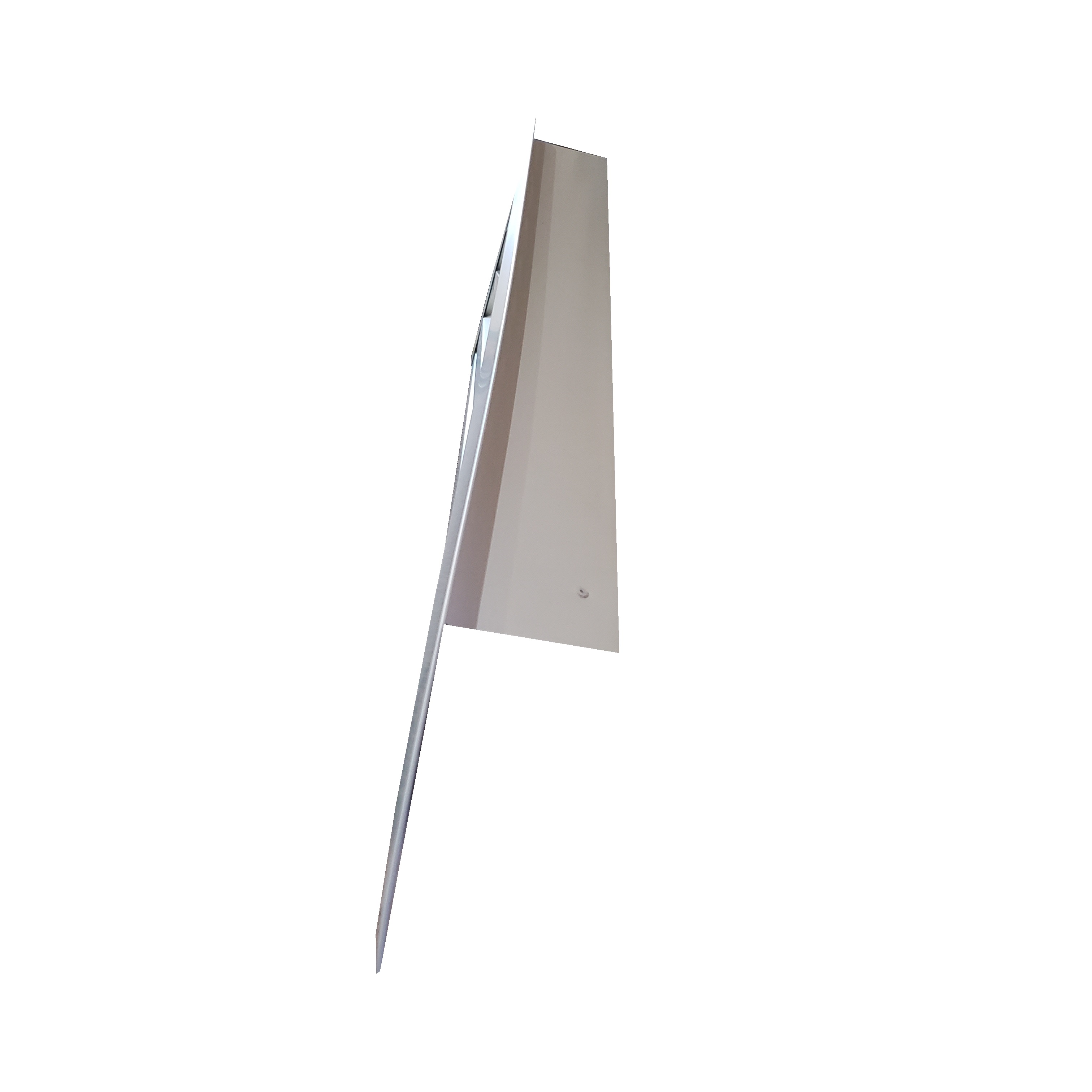

A 4 inch deep vent as a common is actually 3 1/2" deep for the standard stud depth in a wall.
Even the rear of the vent is trimmed out to be finished with a bug screen.
Procure these 63 X 12 X 4 Triangle vents for the most durable 63 x 12 custom aluminum exhaust vents with a front flange and a 3 1/2 inch depth
The upper angles of this triangular vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 63x12x4trlvffss
Professional contractors know the distinction of a good product and a poor one.
This odd ball pitch measures out to be a 4.6 on 12 roof pitch.
The front nail fin is used as a finish trim.
It provides plenty of coverage to hide any framing gaps.
A 4 inch deep vent as a common is actually 3 1/2" deep for the standard stud depth in a wall.
Even the rear of the vent is trimmed out to be finished with a bug screen.
Reinforced Triangle Garret Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 63 | 12 | 62.5 | 11.5 | 189 | |
| tip to tip of vent | 63 | 12 | 63 | 12 | 201 | |
| tip to tip including flange | 63 | 12 | 60 | 9 | 133 |
Depth: 3 1/2 inch vent wall
Color Coatings: All .019 Trim Coil Colors
Nail Flange Type: Front Flange
Material: Aluminum, Metal
Screening Options: Aluminum, Vinyl screening, Aluminum screening, Solid aluminum back
Professional contractors know the distinction of a good product and a poor one.
