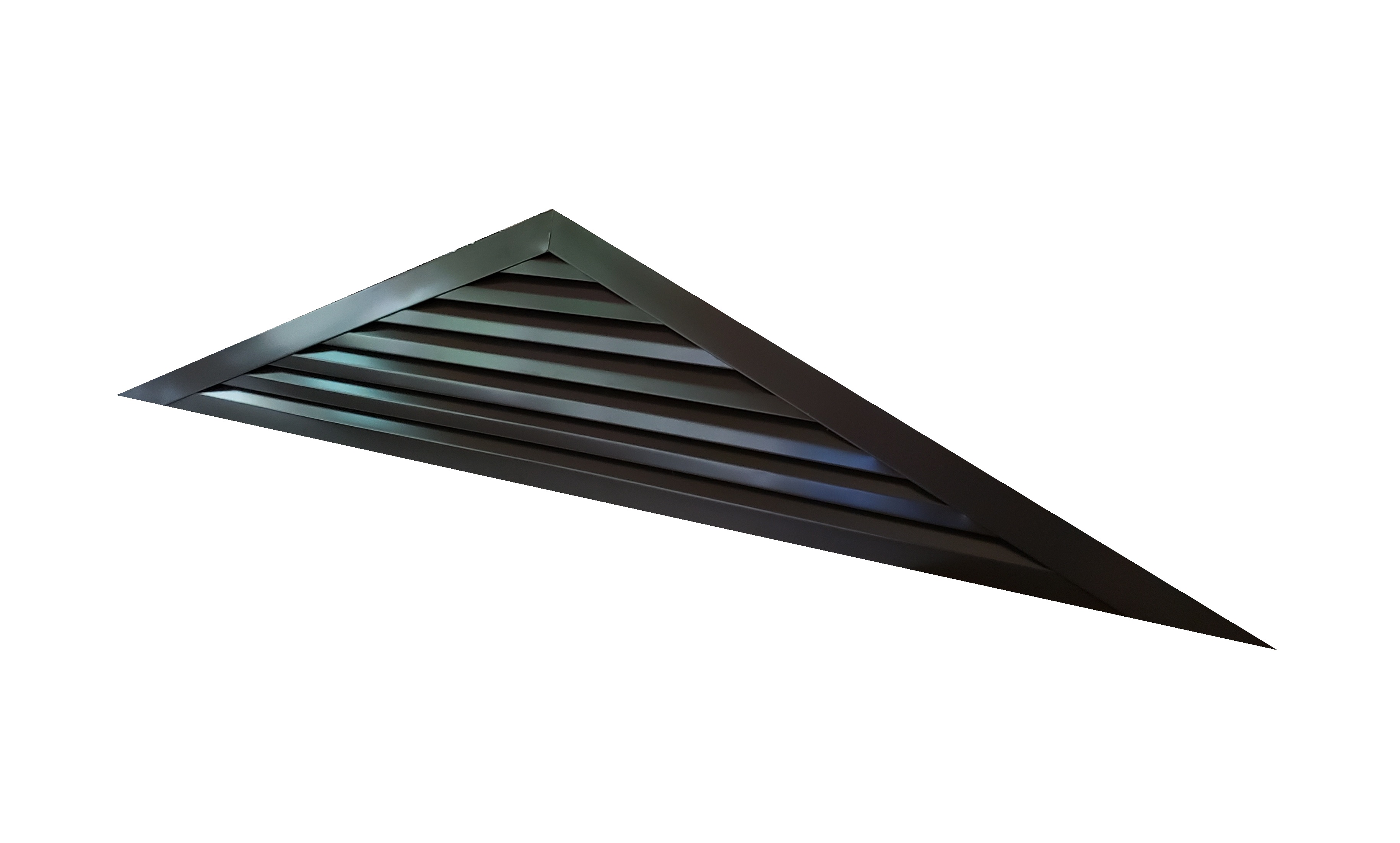

Alside G8 Dark Bronze makes this a really dark brown vent.
Width of 68 inches across the bottom…
and the height measures 14 inches…
for roughly a 5/12 roof pitch.
Find
Triangle loft exhaust vents
This is a decent size vent for venting an attic.
But this brown vent was ordered as a non vented.
So it is not functional.

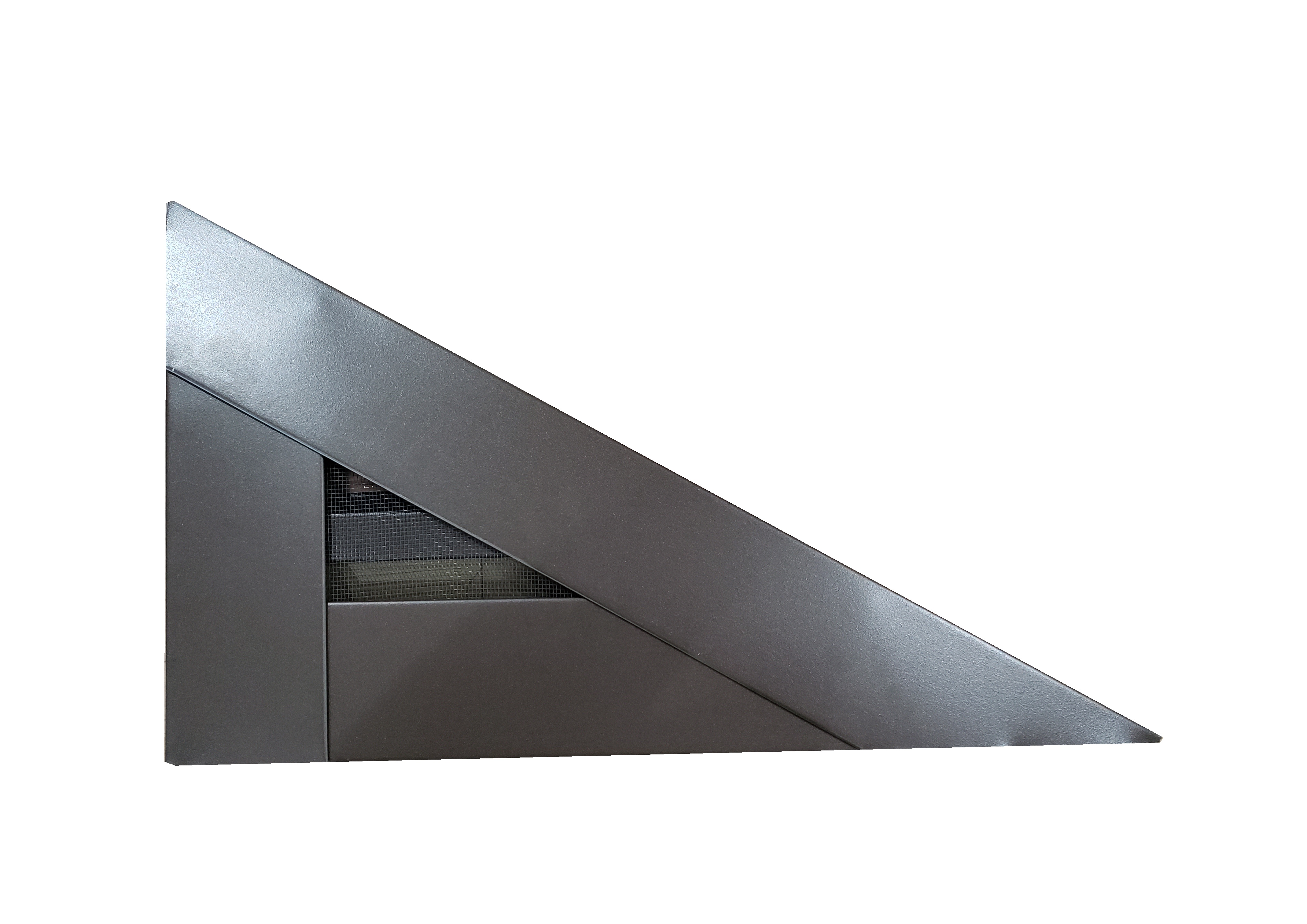

The 1 1/2 inch nail fin encloses the entire vent edge.
Can be trimmed out or left as is.
What is not recommended for actual ventilation is tiny vents with no way to vent.

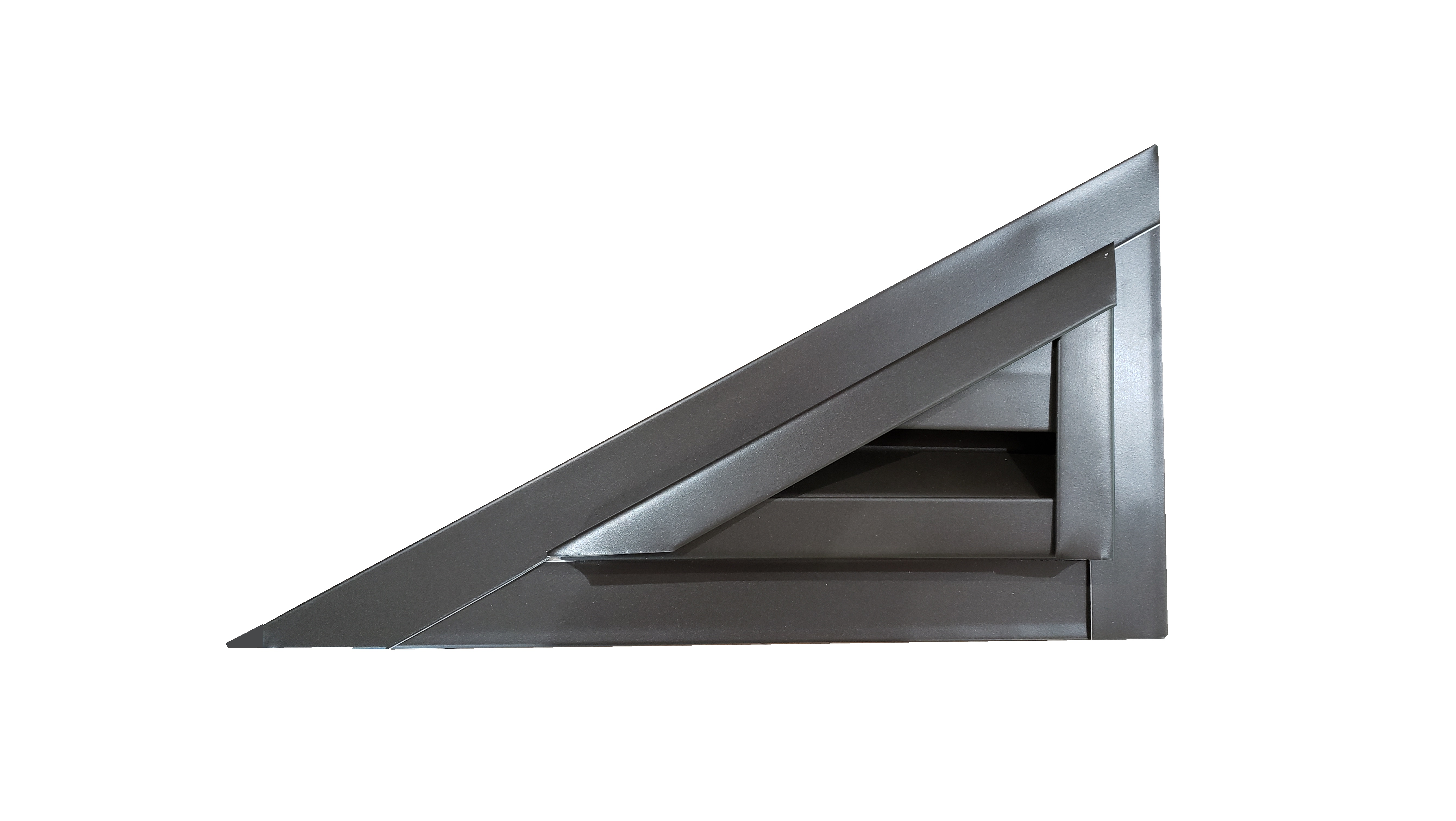

This 11 x 5 x 1 back flange has no choice but to be decorative due to it's size.
Looking at the screen on the rear shows everything is pretty closed off.
The tiny triangle opening at the top is the only vented area measuring less than 1 square inch of net free.
Find 68 X 14 X 1 Triangle vents in this enormous selection of 68 x 14 loft exhaust vents with a front flange and a 1 inch depth
The side angles of the triangular vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 68x14x1trlvffss
Premature roof failure is usually generated by inadequate ventilation. Don't be a casualty.
West Saint Paul Minnesota 55118 is now home for these vents
But this brown vent was ordered as a non vented.
So it is not functional.
The 1 1/2 inch nail fin encloses the entire vent edge.
Can be trimmed out or left as is.
What is not recommended for actual ventilation is tiny vents with no way to vent.
This 11 x 5 x 1 back flange has no choice but to be decorative due to it's size.
Looking at the screen on the rear shows everything is pretty closed off.
The tiny triangle opening at the top is the only vented area measuring less than 1 square inch of net free.
A Reinforced Triangle Louvered Loft Exhaust Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 68 | 14 | 67.5 | 13.5 | 188 | |
| tip to tip of vent | 68 | 14 | 68 | 14 | 198 | |
| tip to tip including flange | 68 | 14 | 65 | 11 | 141 |
Depth: 1 inch depth
Color: All Aluminum Trim Coil
Nailer Type: Front Flange
Manufactured With: All Aluminum Sheet Metal
Screening Options: Aluminum, Black vinyl screening, Not vented, Aluminum on back
Premature roof failure is usually generated by inadequate ventilation. Don't be a casualty.
West Saint Paul Minnesota 55118 is now home for these vents
