72 X 30 X 2 Half Round No Flange Metal Louver Exhaust Vent

Let's tour this half round aluminum louver vent.

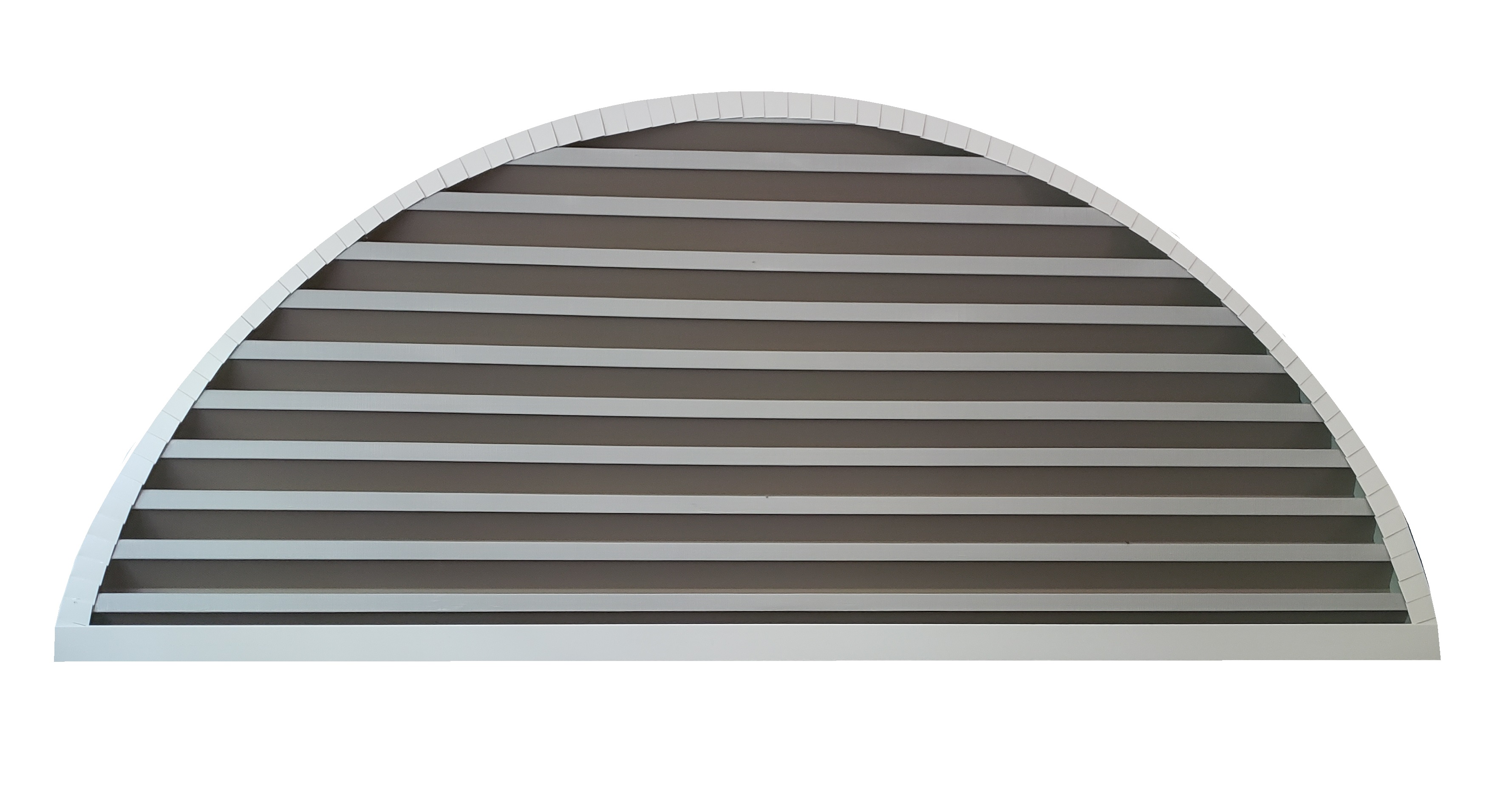

Starting here at the front of the vent, notice the strong, straight, self supporting louvers lining the vent horizontally.

Shop

Half Round metal louver exhaust vents

This gable vent measures 72 across the base and 30 inches in height.

The louvers are evenly spaced with an inch and a half between for approximately 784 square inches of net free air.

Trimming the outer edge is a smooth 1 1/4 inch no flange.

This means this vent is ready to be placed into an opening such as a brick wall or pre trimmed window opening.

There is no nail fin on this vent to hinder or prevent an easy slide in type install.

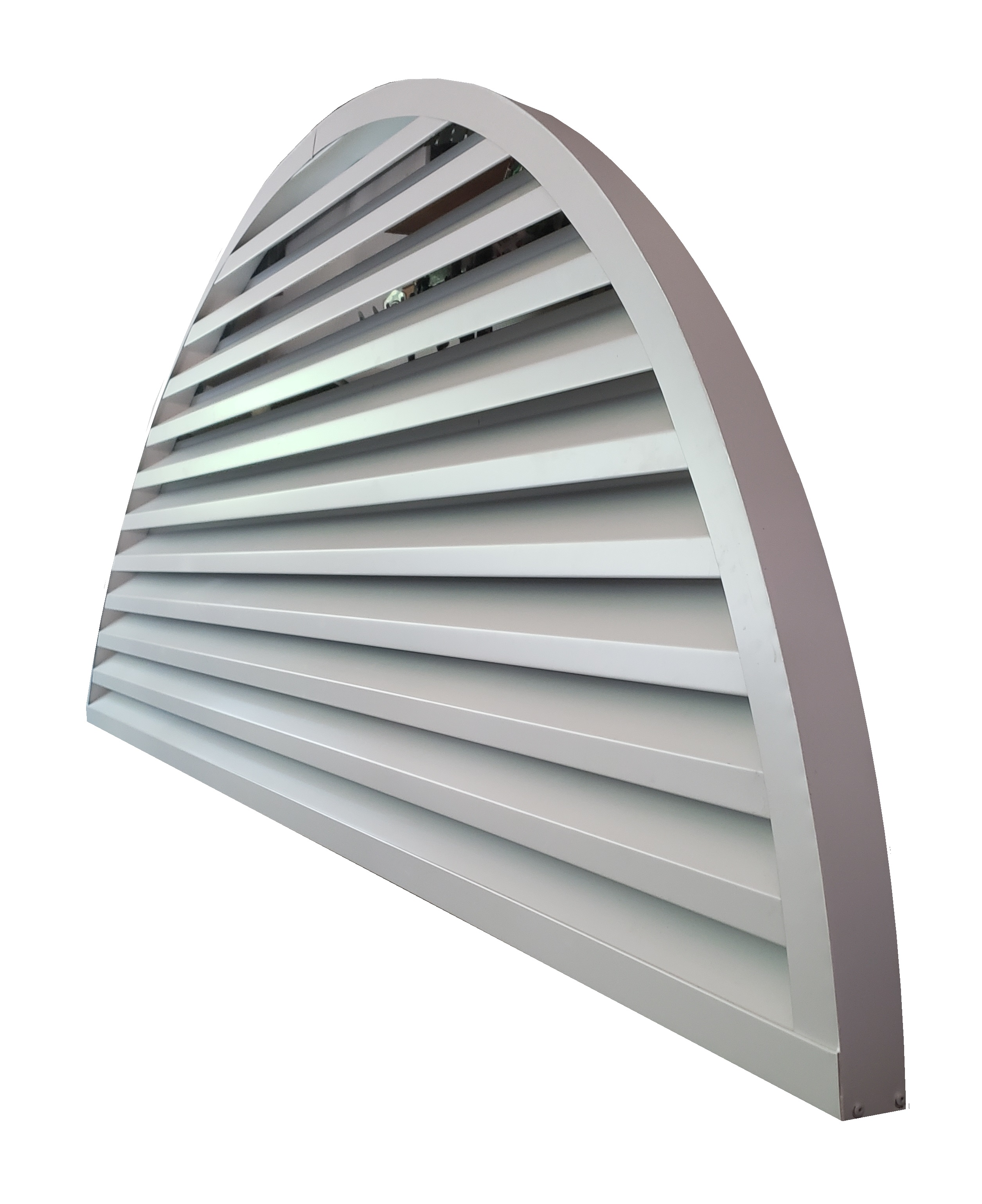

Turning the vent slightly shows the vent depth.

Being a full 2 inches deep allows for many install types.

Most standard 3 1/2 inch stud walls are 4 inches with the common 1/2 inch sheeting applied.

This allows the vent to be recessed to the depth of choice.

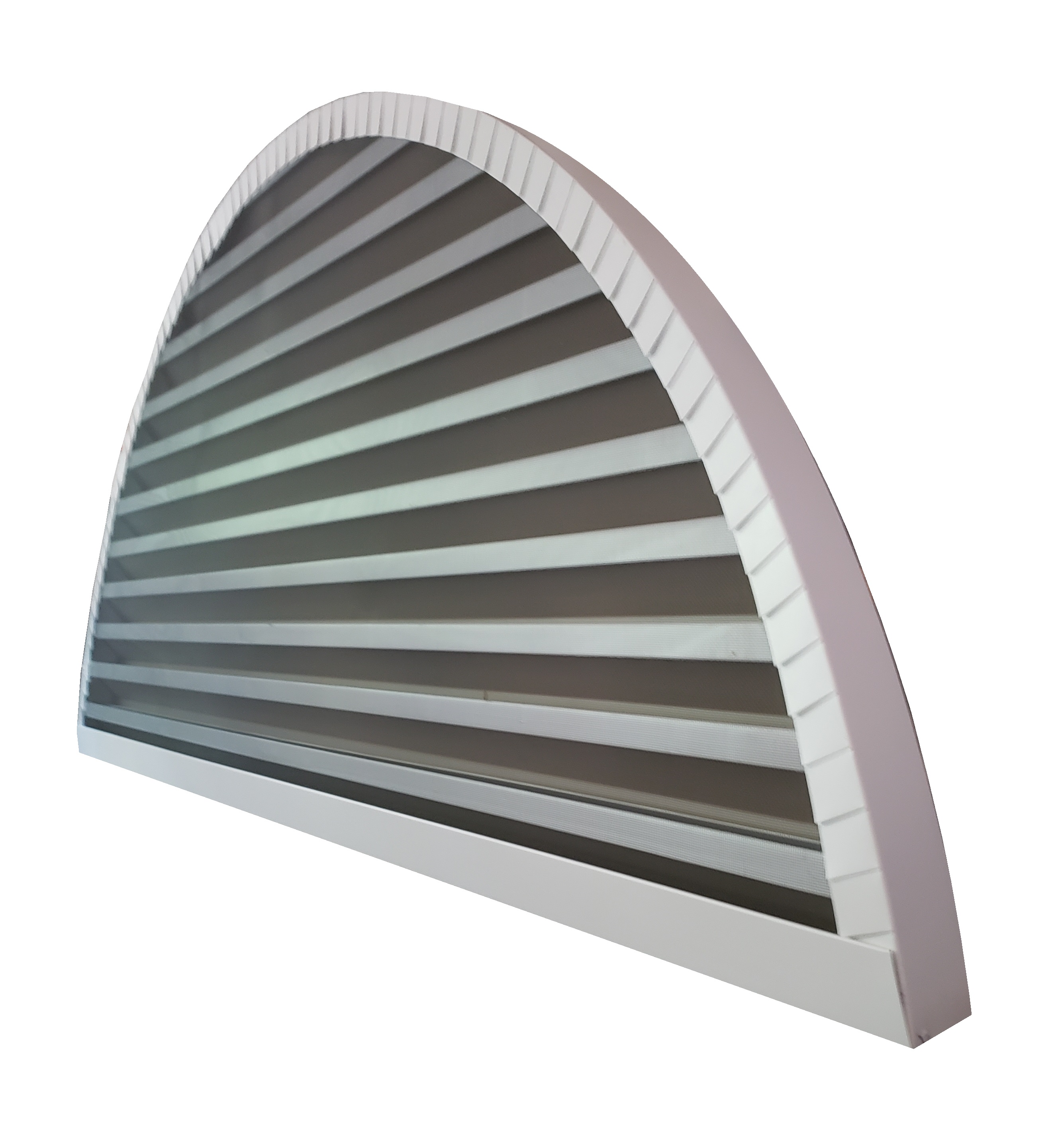

Walk around to the rear corner of the arch and the trim changes to a notched ring.

This ring has a slight flexability for tight fitting brick openings.

This minute flexability allows for the rear of the vent trim to adjust while installing and keep the stiff face trim straight for a professional looking install.

Once the vent is turned all the way around, the aluminum bug screen is seen.

Aluminum screening is much better than fiberglass screen in some climates.

Southern states have issues with wasps and grasshoppers chewing through fiberglass screens and vinyl screens.

These areas benefit greatly from aluminum screen for a much better longevity.

Better Half Round Functional Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	72	30	71.5	29.5	764
tip to tip of vent	72	30	72	30	784
tip to tip including flange	72	30	72	30	784

Depth: 2 inch thick

Finish Options: All Sheet Metal Colors

Type of Nail Flange: No Flange

Formed With: Complete Aluminum Metal

Screening Options: Aluminum, Non functional, Black aluminum screening, Black vinyl screen

Shop 72 X 30 X 2 Half Round vent for the correct 72 x 30 metal louver exhaust vents with a no flange and a 2 inch depth

Time to do this. Take a breath. Do not measure the arch. Measure only the width and the height. We will determine the arch for you. And in 1 to 2 weeks we will deliver the 72 x 30 x 2 half round no flange vent 72x30x2hrlvnfss

The Onyx Xteriors flange and trim are of the nicer aluminum louvre vent features seen on any. The hemmed over edges and reinforced rail system have really shocked buyers.

Calling Orlando Florida 32839 home, these vents now protect an attic and roof from overheating.
