76 X 15 X 4 Triangle Back Flange Metal Loft Vent

The vent is 76 wide, 15 height and 3.5 inches deep.

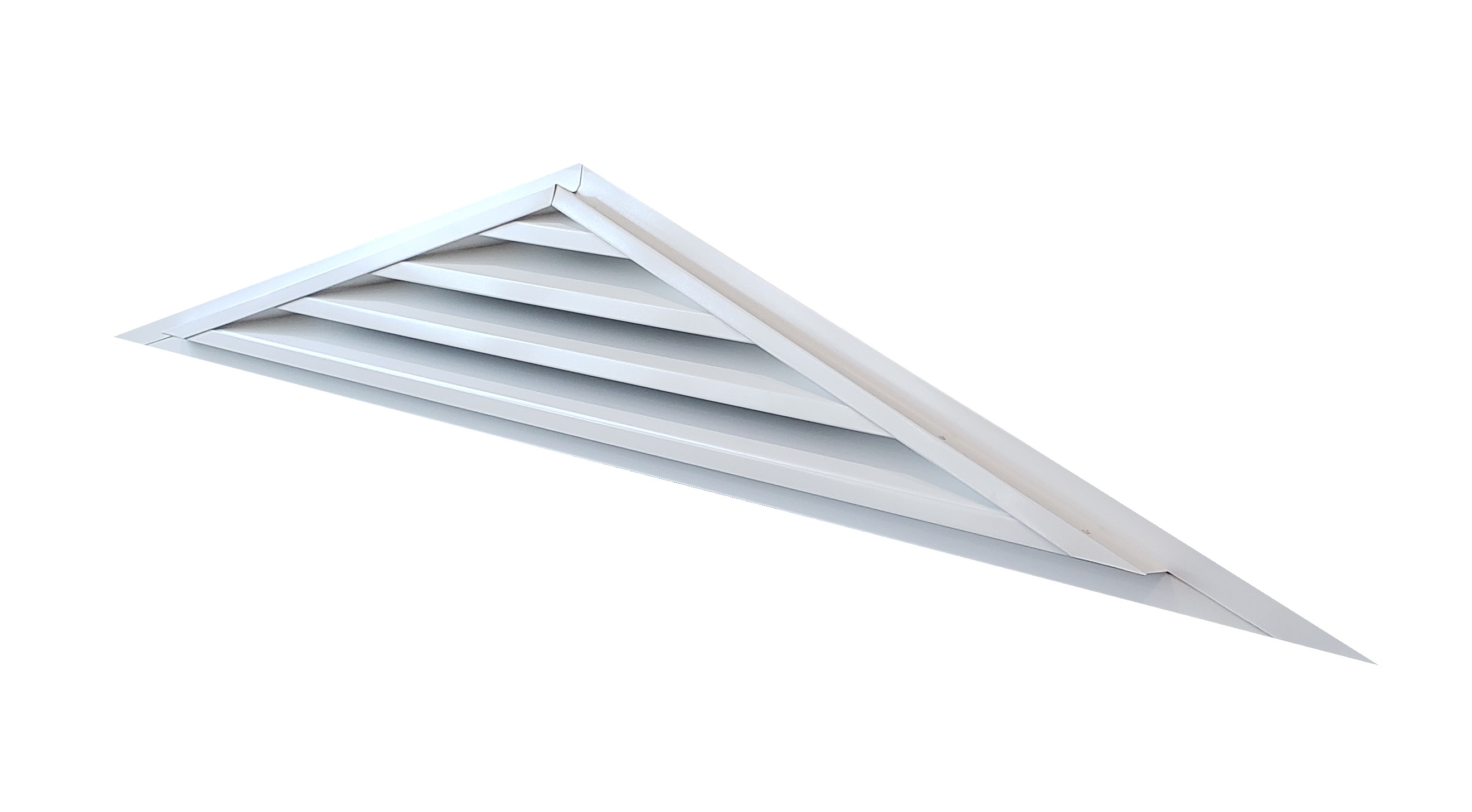

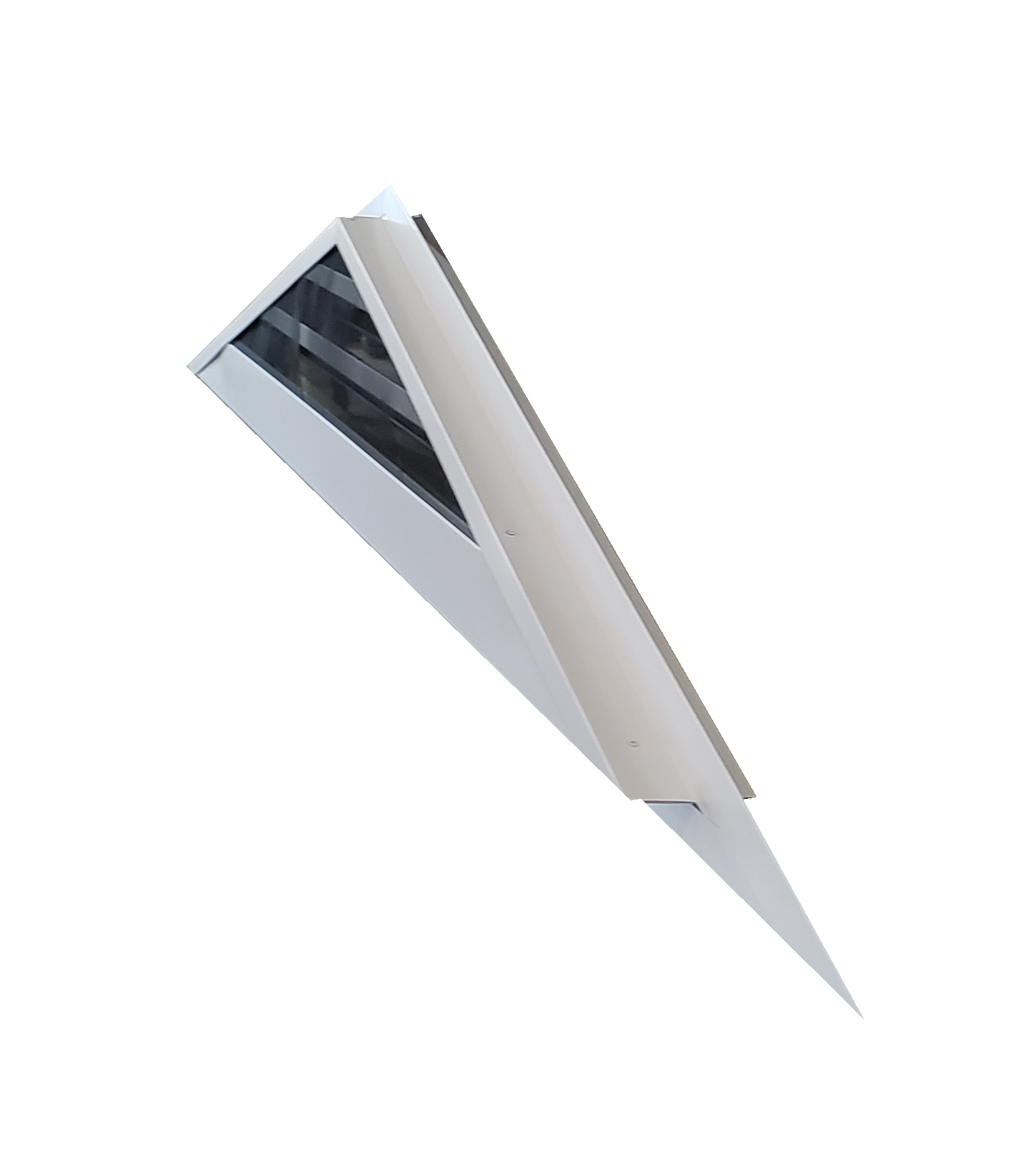

The back flange on this triangle was set 1.5 inches back from the face and 2 inches from the back.

0

Triangle metal loft vents

When a full 3.5 inch vent is needed, but applying stucco, the vent needs to position just right for the stucco depth.

The flange will fasten to the wall sheeting.

With the excess depth entering the gable wall opening.

Custom means choosing every part and placement of the vent to match your install.

Not adjusting your framing to match the vent.

Contractors and construction workers have enough to deal with without this being a headache.

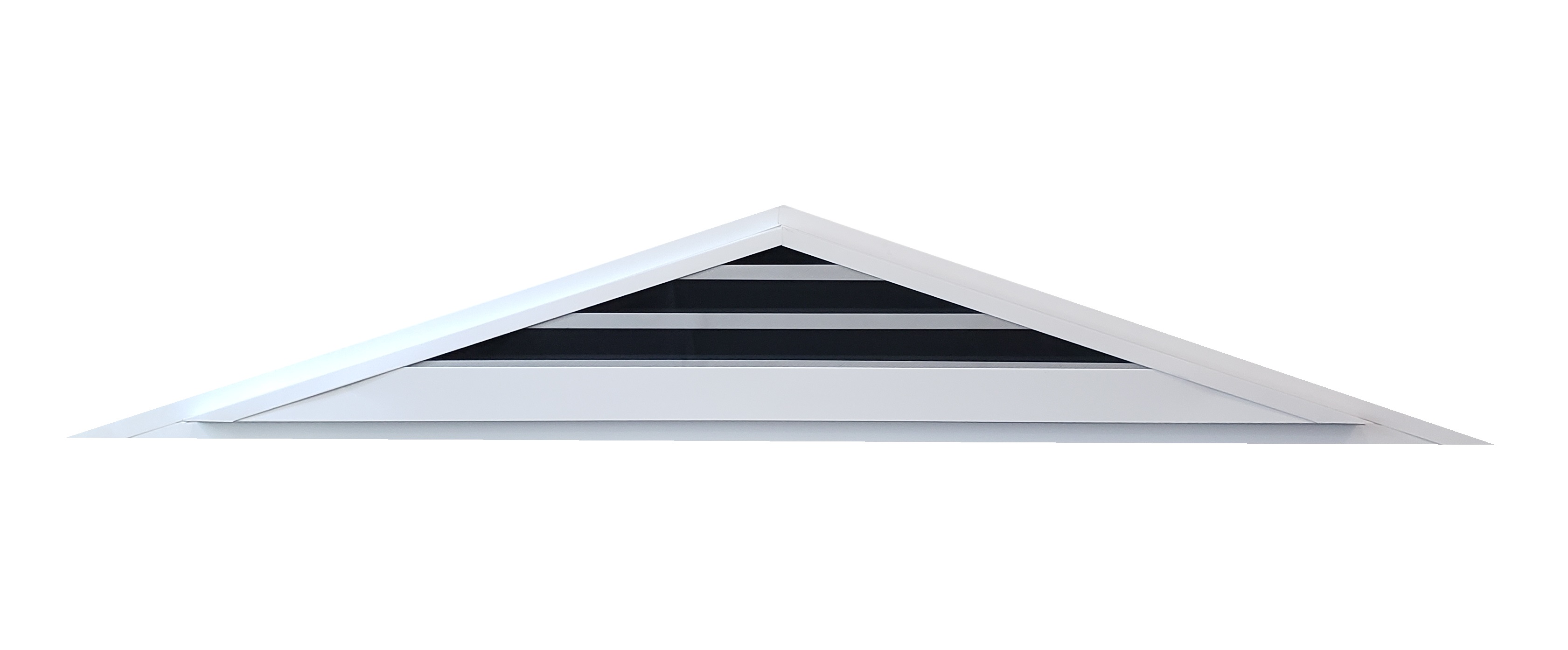

Simple 5/12 roof pitch triangular louver gable vent.

The Stronger Metal Triangular Metal Garret Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	76	15	75.5	14.5	303
tip to tip of vent	76	15	76	15	317
tip to tip including flange	76	15	73	12	234

Depth: 3 1/2 inch vent wall

Finish Color: All Aluminum Coil

Type of Nail Flange: Back Flange

Manufactured Of: Aluminum Metal

Functional Options: Aluminum, Black vinyl screening, Hardware cloth, Not vented

76 X 15 X 4 Triangle vent in this vent department of Onyx Xteriors 76 x 15 metal loft vents with a back flange and a 3 1/2 inch depth

The upper angles of this triangle louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 76x15x4trlvbfss

Gable louvre functioning vents are a thing of the past. Everyone wants the current thing thing, power vents. Up to when they find out their thermostats stick, burn out and start fires.

What else?

Call, text or email us for a personal answer.
