80 X 20 X 2 Triangle Back Flange Louvered Metal Exhaust Vent

Variform Cedarwood colored aluminum louver vent.

80 inches wide and 20 inches heigh.

Look for

Sweet, straight lines and ready to dress a gable wall.

Aluminum means never rust, rot, heat warp, dry rot, nor ever need painted.

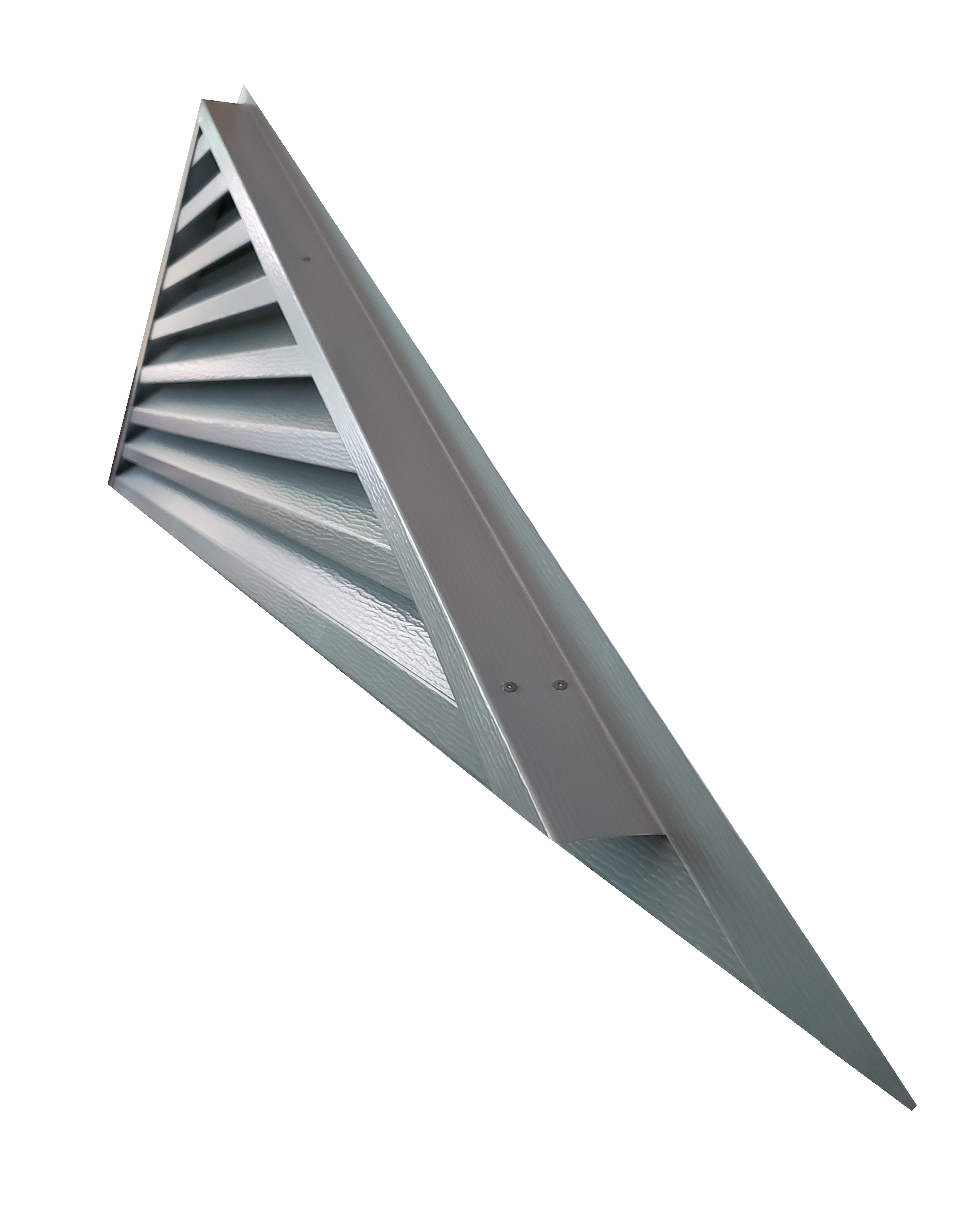

Depth of 2 inches and a back nail flange means it's ready to flush mount on any gabled wall.

Just apply the siding, brick or stucco around it and done.

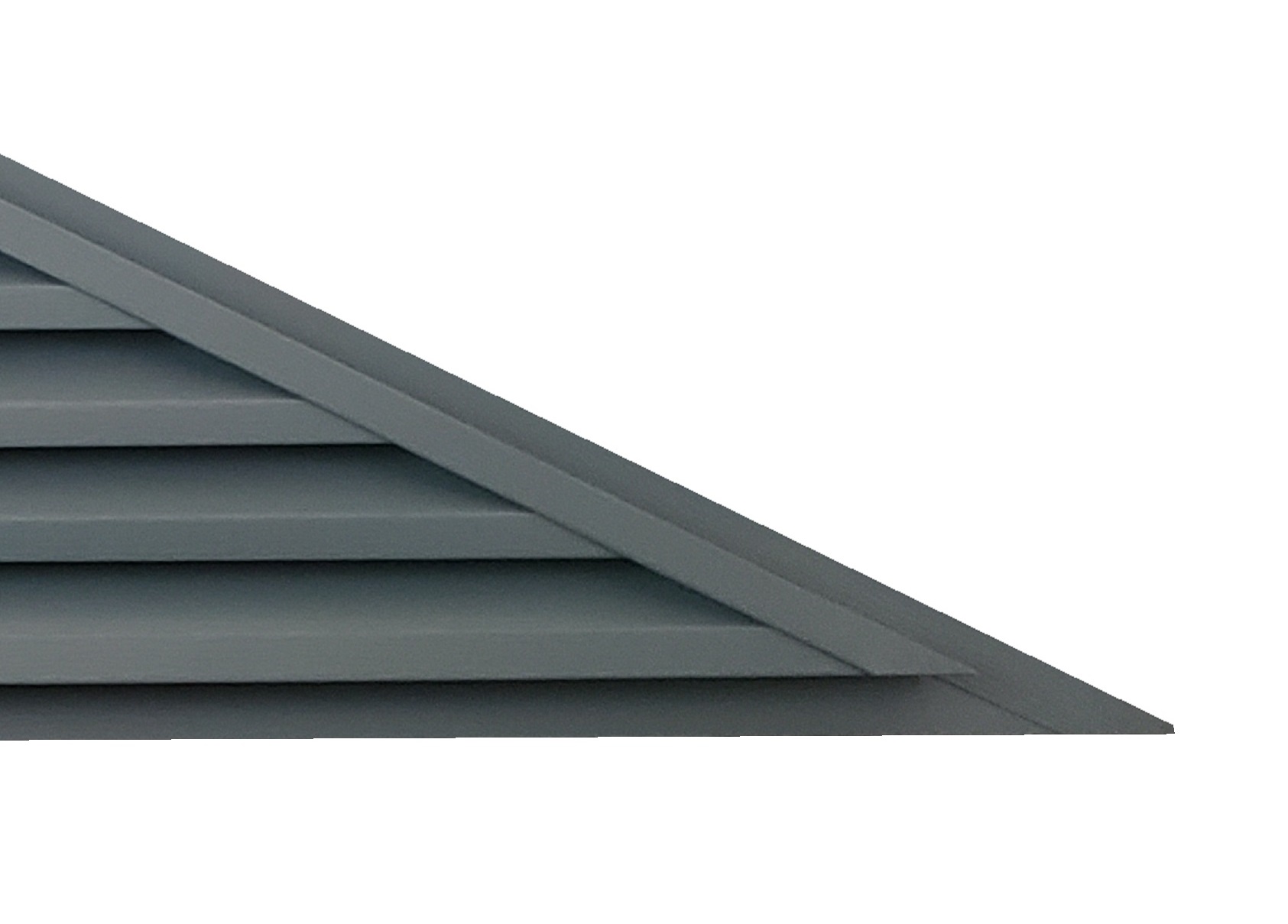

All triangle vents have pointed corners.

Instead of flush cutting the corners, we prefer to turn and lock them together for a stronger nail fin.

But don't let the word nail confuse.

This fin can be fastened with screws as well for an easier install.

Below is a suggestion of the net free air of this size louver vent,

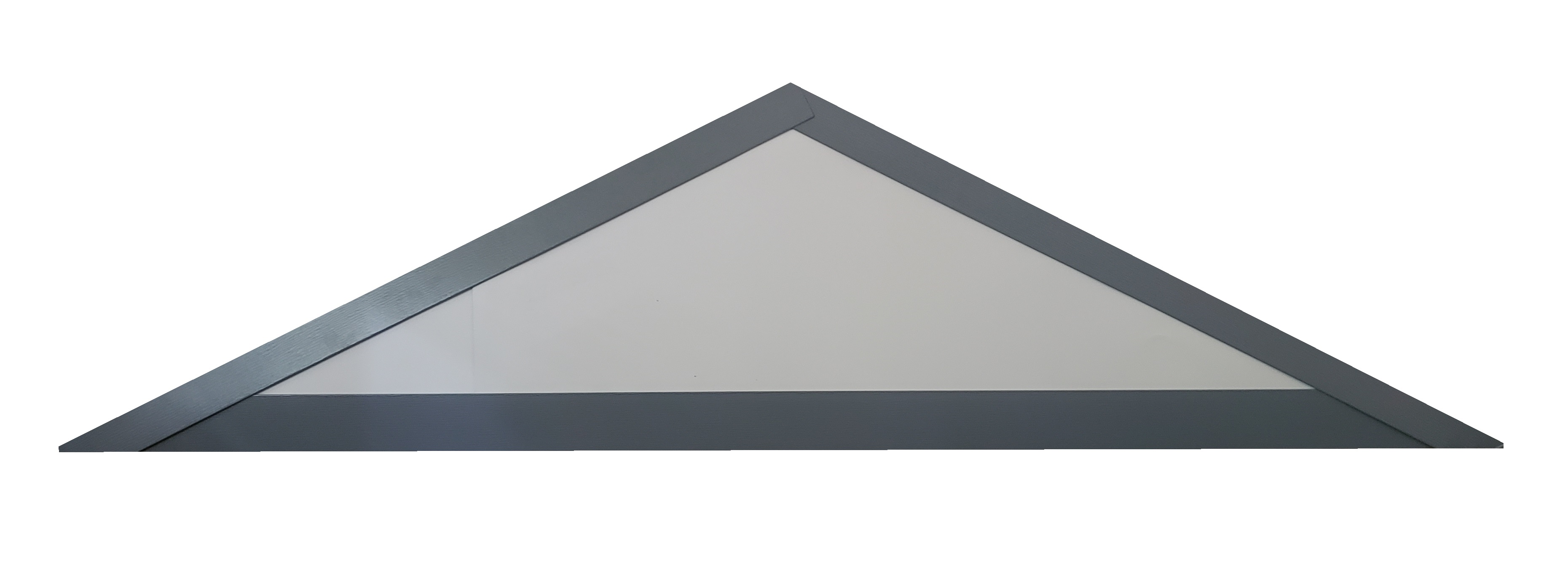

But this vent was ordered as a non functional vent.

Solid black aluminum sheeting was applied to ensure 0 net free air entering or escaping.

Odd?

Not really when a gable wall is too blank and needs just a little something to finish it off to look great.

Straight Lined Triangle Gable Wall Vent

Vent Size			receive	receive	apx
if you choose...	order width	order height	vent width	vent height	net free
opening size	80	20	79.5	19.5	339
tip to tip of vent	80	20	80	20	351
tip to tip including flange	80	20	77	17	281

Depth: 2 inch vent wall

Color Coating: All Metal Colors

Nail Fin Type: Back Flange

Produced With: All Aluminum

Functioning: Aluminum, Metal backing, Aluminum screen, Vinyl screen

Look for 80 X 20 X 2 Triangle vents in this huge selection of 80 x 20 louvered metal exhaust vents with a back flange and a 2 inch depth

The angles of the triangular aluminum vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 80x20x2trlvbfss

Fall frenzies for sprucing up the house before the holidays. A quick, easy fix could be replacing a trashy looking gable vent.

A home in Pittsburgh, PA 15233 is now spruced up.

What else?

Call, text or email us for a personal answer.

901.281.2887 contactus@onyxxteriors.com
