Yes it will ship freight, but an 84 inch vent can be manufactured in one piece at a 2 inch depth.
The 1 inch depth will be made with a center mull for more stability.
But the 2 inch, 4 inch and 6 inch depths are plenty strong enough louvers to be in one.
Shop for a
Triangle metal crawlspace exhaust vents
Shown here in Certain Teed savannah wicker, this tan colored vent will stand strong and true for a lifetime.

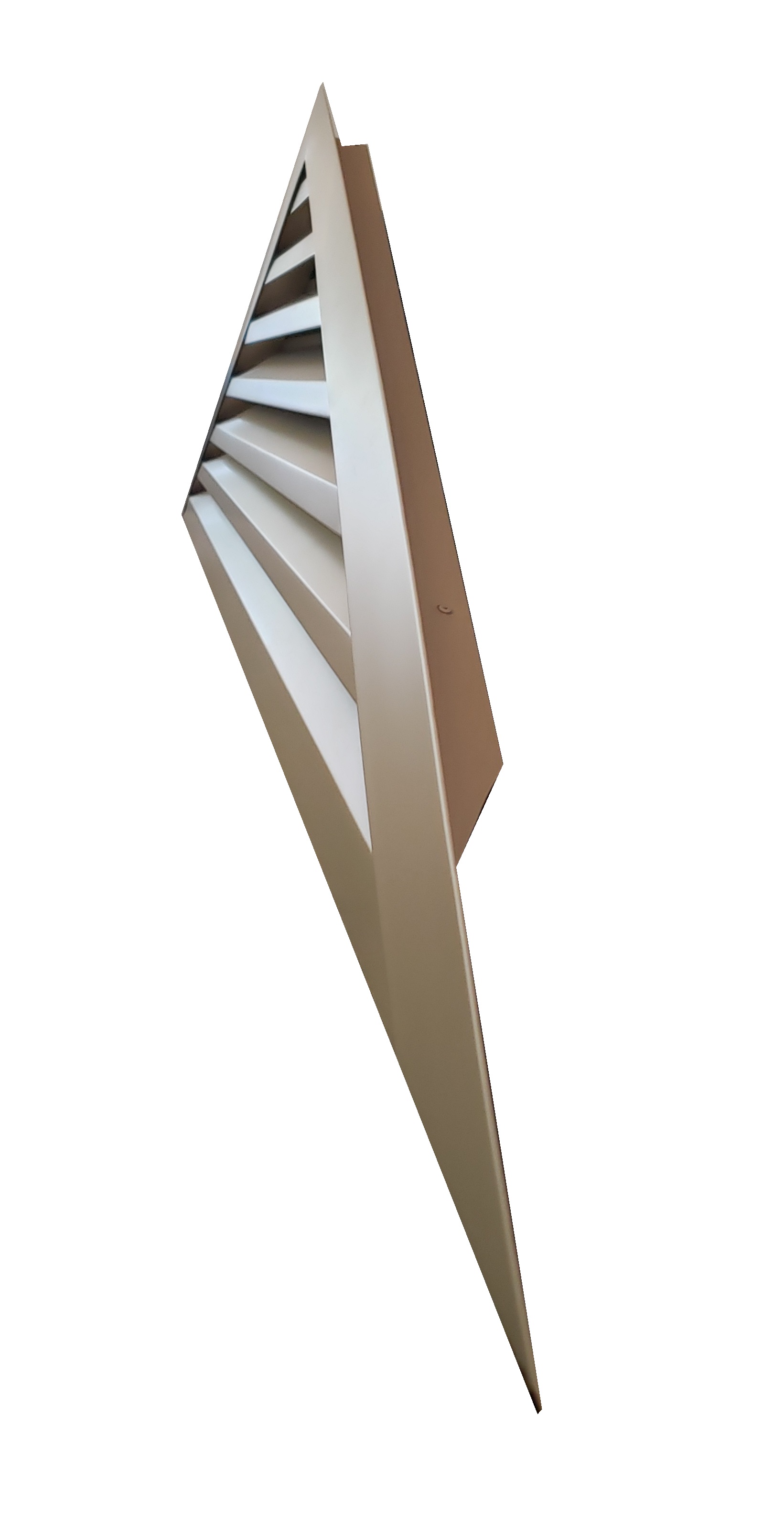

From the side we can see the front nail fin surrounding the entire vent and the 2 inch depth protruding out the back.

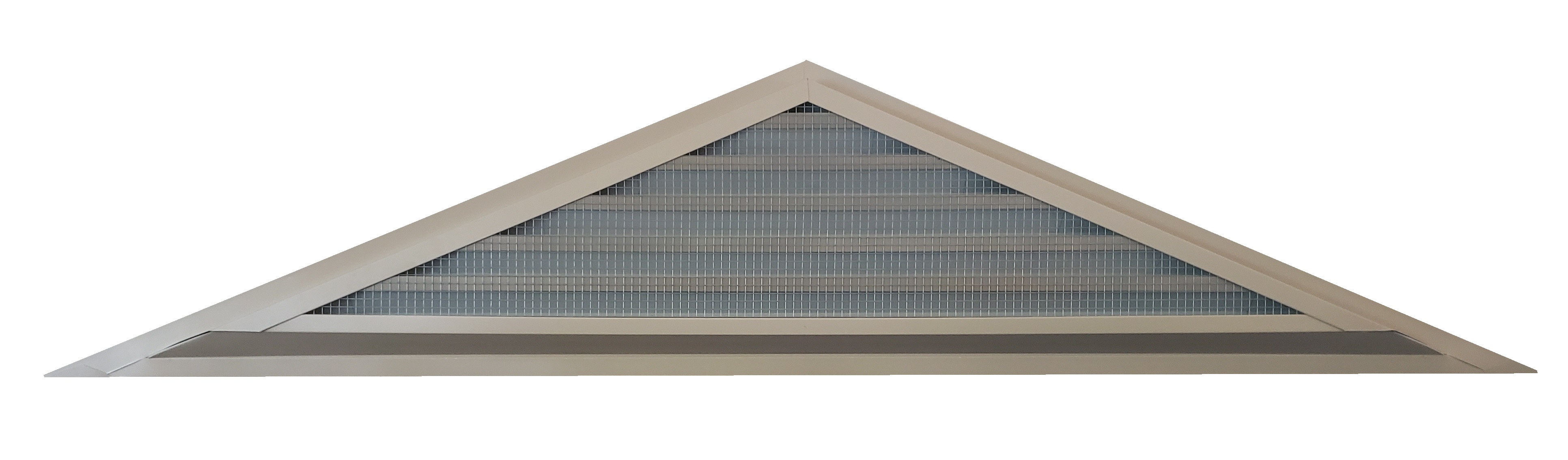

The front of the vent shows the beauty, but the rear shows the real attention to detail.
With an inch of trim coverage on the vent back to hide the rail system framing of the vent and neatly cover the aluminum screen and wire mesh sharp edges.
Even the base is trimmed and finished to a boxed base here for an easier wall insert.
By squaring up the bottom of vents for gable wall mounting, the vent will sit in the attic wall opening without sliding out during the install.
Roof vents are the only vents that need an angled base.

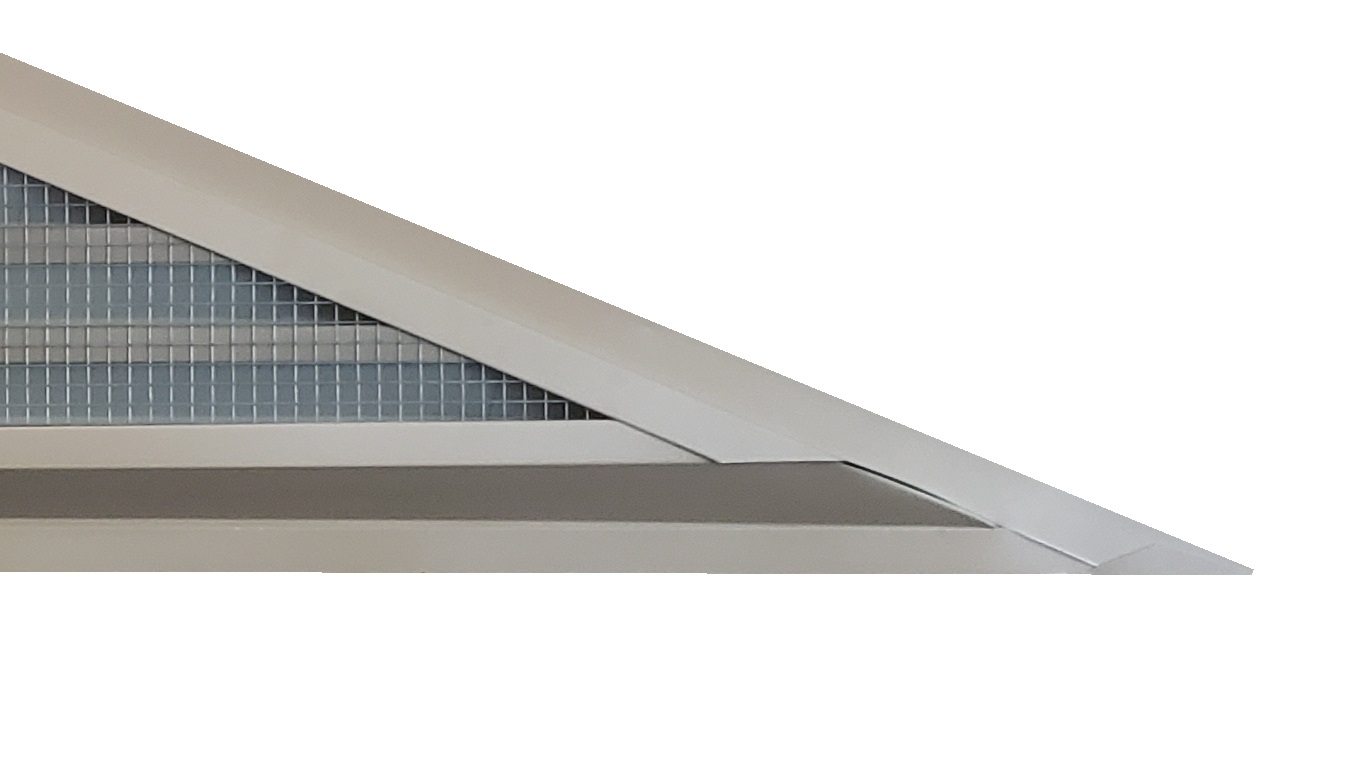

Finishing the corners of the triangle vent could be done by trimming the corners with a flush cut.
But we prefer to use these tabs as a strength advantage.
By leaving these ends long and turning them around the back of the flange, it locks the nail fin into shape and pitch.
These corners will not separate over time.
Shop for a 84 X 17 X 2 Triangle vent for the best fitting 84 x 17 metal crawlspace exhaust vents with a front flange and a 2 inch depth
The side angles of this triangular aluminum vent means nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 84x17x2trlvffss
The Onyx Xteriors first generation gable air vent was manufactured in the USA as a residential air handler in 1996. Since then, Onyx Xteriors has constantly stayed a step ahead of industry standards.
Driving through Chappell Hill Texas 77426, you may have drove by these Onyx Xteriors vents and not noticed.
From the side we can see the front nail fin surrounding the entire vent and the 2 inch depth protruding out the back.
The front of the vent shows the beauty, but the rear shows the real attention to detail.
With an inch of trim coverage on the vent back to hide the rail system framing of the vent and neatly cover the aluminum screen and wire mesh sharp edges.
Even the base is trimmed and finished to a boxed base here for an easier wall insert.
By squaring up the bottom of vents for gable wall mounting, the vent will sit in the attic wall opening without sliding out during the install.
Roof vents are the only vents that need an angled base.
Finishing the corners of the triangle vent could be done by trimming the corners with a flush cut.
But we prefer to use these tabs as a strength advantage.
By leaving these ends long and turning them around the back of the flange, it locks the nail fin into shape and pitch.
These corners will not separate over time.
Better Three Sided Custom Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 84 | 17 | 83.5 | 16.5 | 295 | |
| tip to tip of vent | 84 | 17 | 84 | 17 | 307 | |
| tip to tip including flange | 84 | 17 | 81 | 14 | 237 |
Depth: 2 inch depth
Color Coating Options: Any Sheet Metal Color
Nail Flange Type: Front Flange
Formed Of: Complete Aluminum
Screen Options: Aluminum, Non vented, Black aluminum screen, Vinyl screening on back
