A 5/12 pitch triangle louver vent with an 8 foot base is 96 x 20.
If the framer was off the mark, this may change the measure as much as 6 inches on the base.
This is why we require the width and height of the triangle to determine the exact roof pitch.
0
Triangle metal crawlspace vents
The center bar on this is a stiffener as well as a divider.
This triangle breaks into 2 halves for easier installation with less shipping cost.

This mull also acts as an alignment bar.

With the two halves slid together, the triangle can be installed as one piece.
Or as two if it is easier on the installer.
Done in Norandex Champagne color.

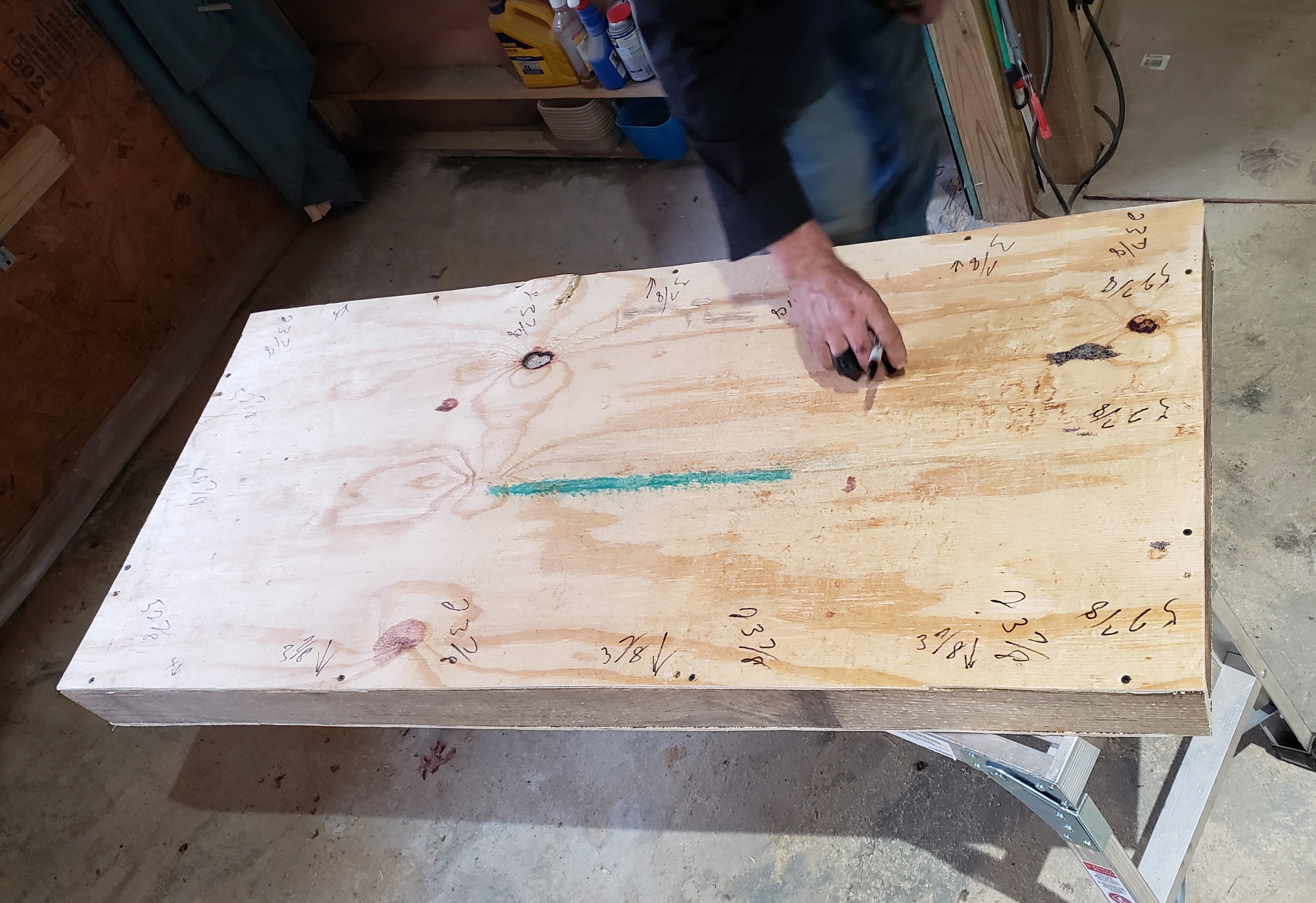

Then it is cleaned and packaged in a wooden crate for safer shipping.
96 X 20 X 2 Triangle vent in this enormous selection of 96 x 20 metal crawlspace vents with a no flange and a 2 inch depth
The angles of the triangular louvered vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 96x20x2trlvnfss
Authentic American Made vents are checked and rechecked for quality. Don't chance getting a fake.
Shipped to Fort Walton Beach Florida 32547
This triangle breaks into 2 halves for easier installation with less shipping cost.

This mull also acts as an alignment bar.

With the two halves slid together, the triangle can be installed as one piece.
Or as two if it is easier on the installer.
Done in Norandex Champagne color.

Then it is cleaned and packaged in a wooden crate for safer shipping.
Stronger Three Sided Metal Louver Vent
Vent Size | receive | receive | apx | |||
if you choose... | order width | order height | vent width | vent height | net free | |
opening size | 96 | 20 | 95.5 | 19.5 | 409 | |
tip to tip of vent | 96 | 20 | 96 | 20 | 423 | |
tip to tip including flange | 96 | 20 | 96 | 20 | 423 |
Depth: 2 inch deep
Color Coating: All Aluminum Coil Colors
Flange: No Flange
Produced With: Aluminum, Metal
Functioning Options: Aluminum, Black vinyl screening on back, 1/2 inch wire cloth, Metal backing
Authentic American Made vents are checked and rechecked for quality. Don't chance getting a fake.
Shipped to Fort Walton Beach Florida 32547
