Louvers faced at 1 inch with 1 1/2 inch spacing for more airflow..
The center brace bar adds strength to the longer louvers.
This doubles as a strengthener and a breaking point.

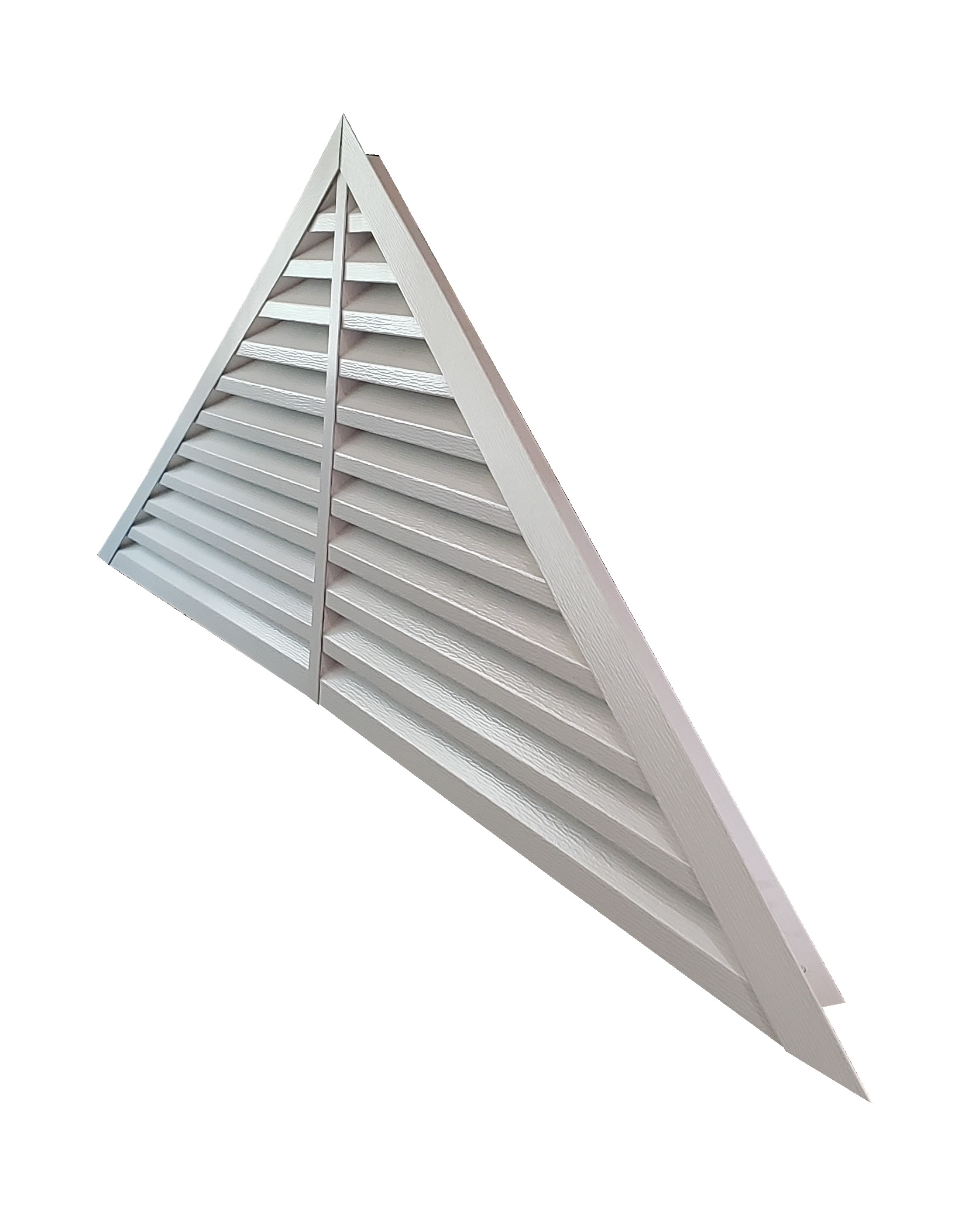

To choose to install in one piece or two.
Customize your Triangle Gable Vent the way best for your install.
The front of the vent is flanged with a 1 1/2 inch nail fin.
The vent itself is the 30 inch by 30 inch measure.
The flange is added.
So, with th flange it is 97 x 29.
This base is boxed (not angled) for setting into a gable wall.

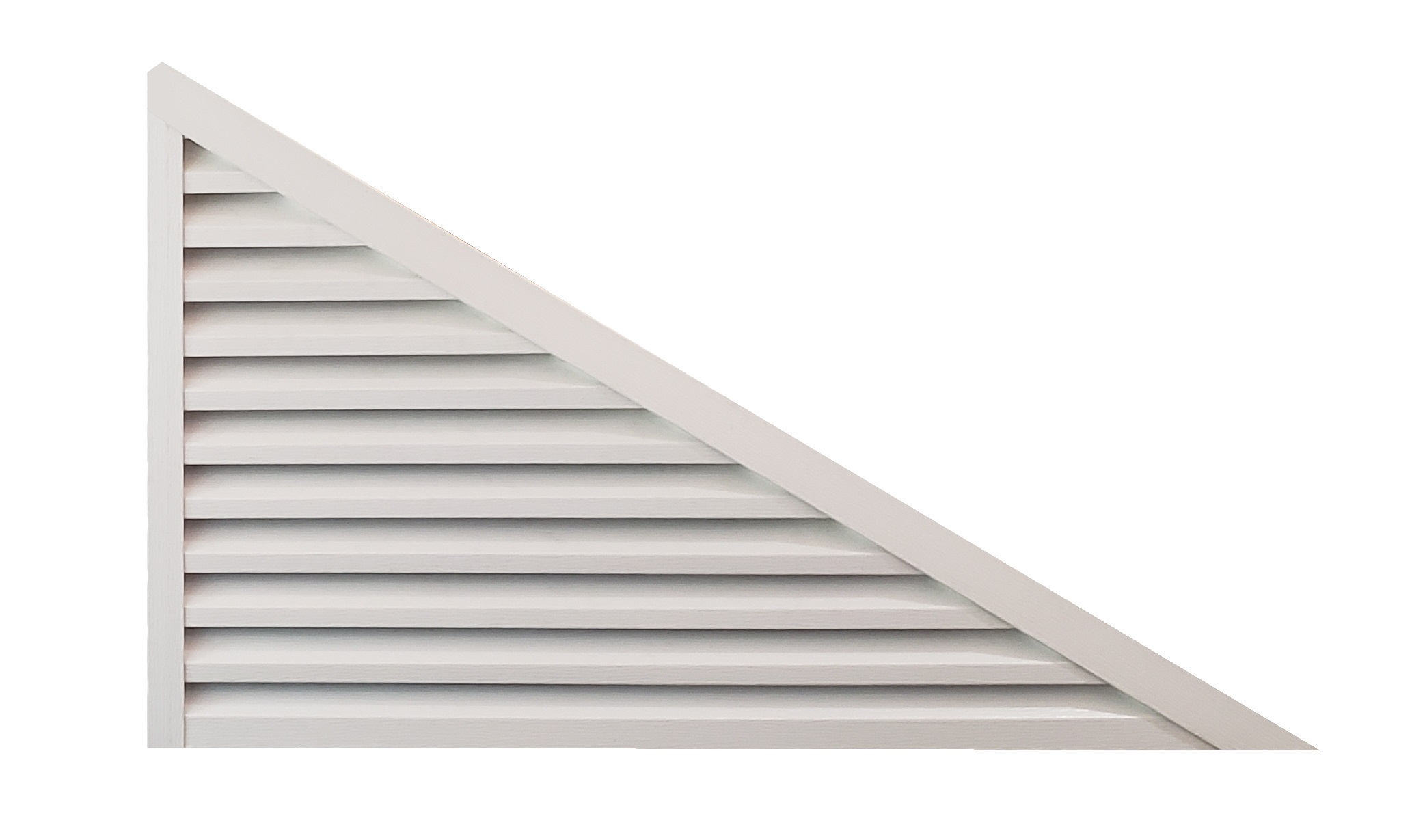

One half of the vent will have an H-bar attached.
This is the half to install first.
The top and bottom of the vent will have alignment tabs.
This makes the install so much easier and quicker.
Stronger Triangle Loft Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 97 | 29 | 96.5 | 28.5 | 626 | |
| tip to tip of vent | 97 | 29 | 97 | 29 | 641 | |
| tip to tip including flange | 97 | 29 | 94 | 26 | 552 |
Depth: 2 inch
Color Coating Options: Any .019 Trim Coil
Nail Fin: Front Flange
Composed Of: Aluminum Metal
Functioning Options: Aluminum, 1/2 inch wired cloth, Solid aluminum back, Vinyl screen
The side angles of this triangle aluminum vent tells us nothing. Please skip this measure and go straight to the base length and center height. This is all you need. 97x29x2trlvffss
