With a flat 2 1/2 inch face trim...
1 1/2 inches of that is coverage as a nail fin.
Design a custom Round Louver Vent from scratch.
From this angle, the louver strength is very visible.
Being so thin at a 1 inch depth,
the install possibilities are endless.
Norandex Sandy Beige color.
Apply the wall cladding and then this circular vent to finish the job.

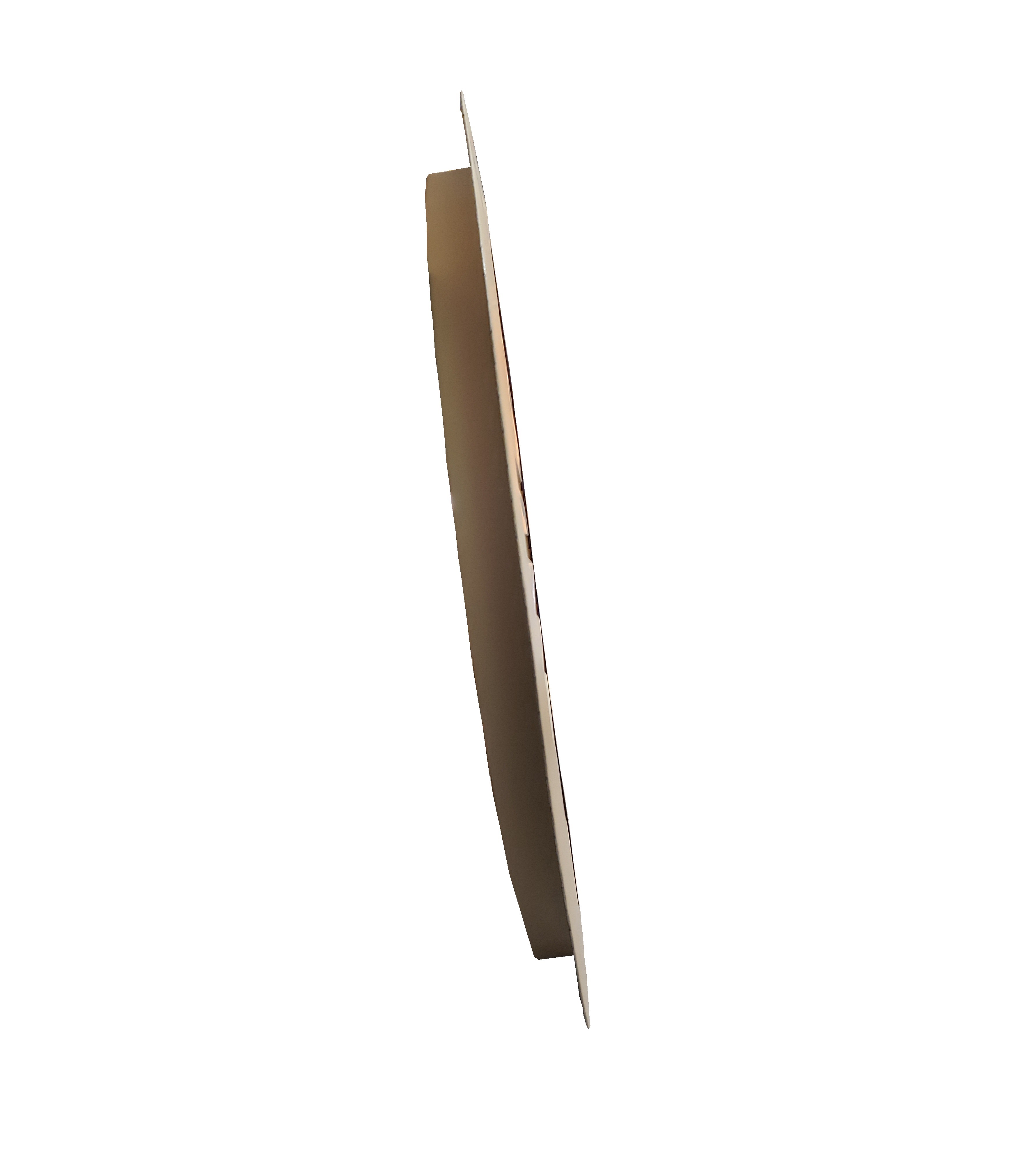

From this angle, the 1 inch depth speaks for itself.
The front flange will sit flat against the gable wall neatly.

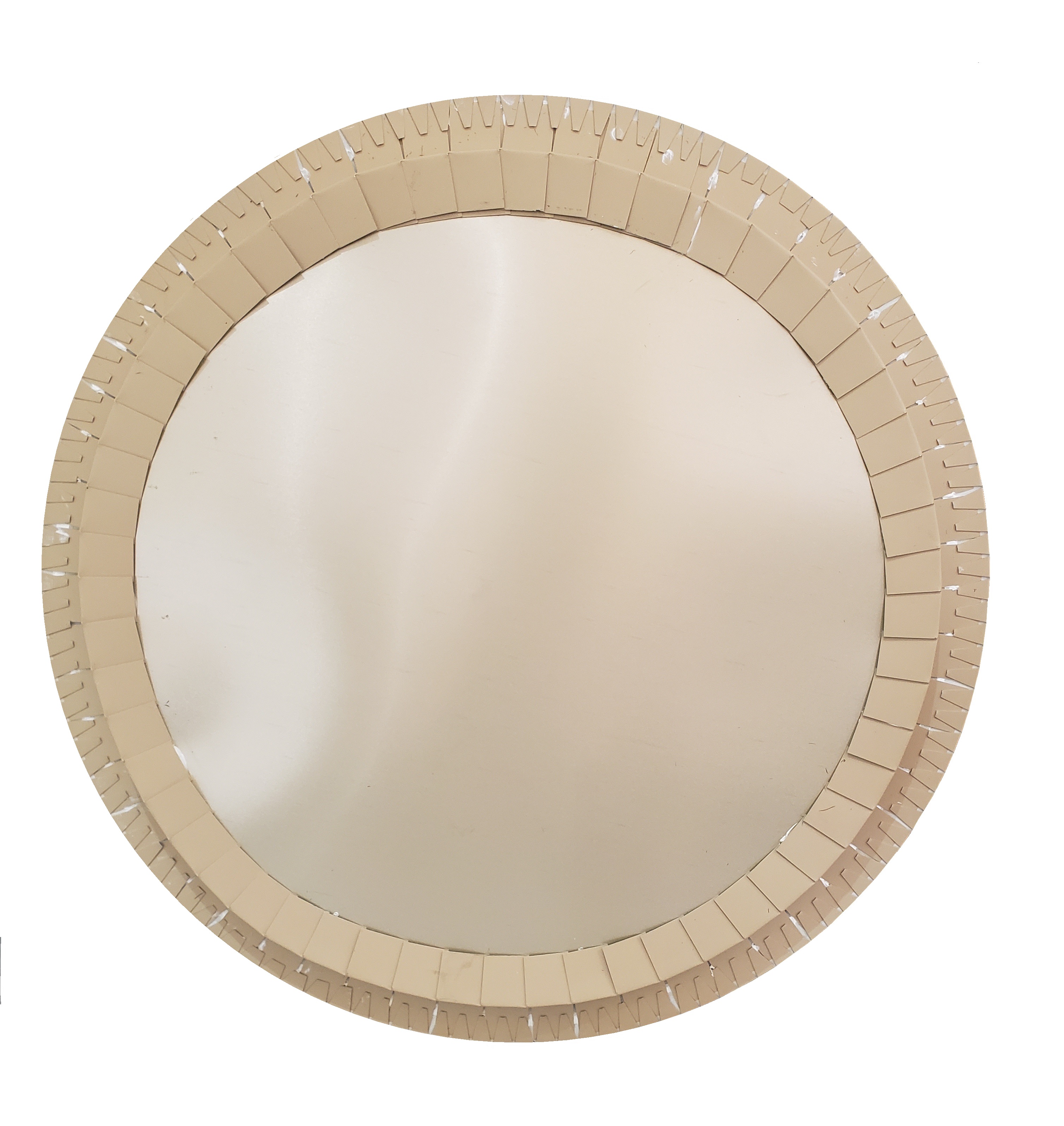

The rear of this vent was covered with an aluminum sheet backing for a non vented vent.
This blocks out all air flow and water potentials for blowing rain.
The Best Round Louvered Crawlspace Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 18 | 18 | 17.5 | 17.5 | 96 | |
| tip to tip of vent | 18 | 18 | 18 | 18 | 102 | |
| tip to tip including flange | 18 | 18 | 15 | 15 | 67 |
Depth: 1 inch depth
Finish: Any .019 Trim Coil Color
Nail Fin Type: Front Flange
Built With: Aluminum, Metal
Screen Options: Aluminum, Vinyl, Metal back, Wire mesh
18 X 18 Round Front Flange Vents How do you measure a rounded vent? Treat it as a square vent. Width and height. Forget about the curves. 18x18x1rolvffss
These functional vents do cost more than plastic vents. But what will it cost when you are replacing that vinyl vent in 2 years? Aluminum lasts a lifetime.
