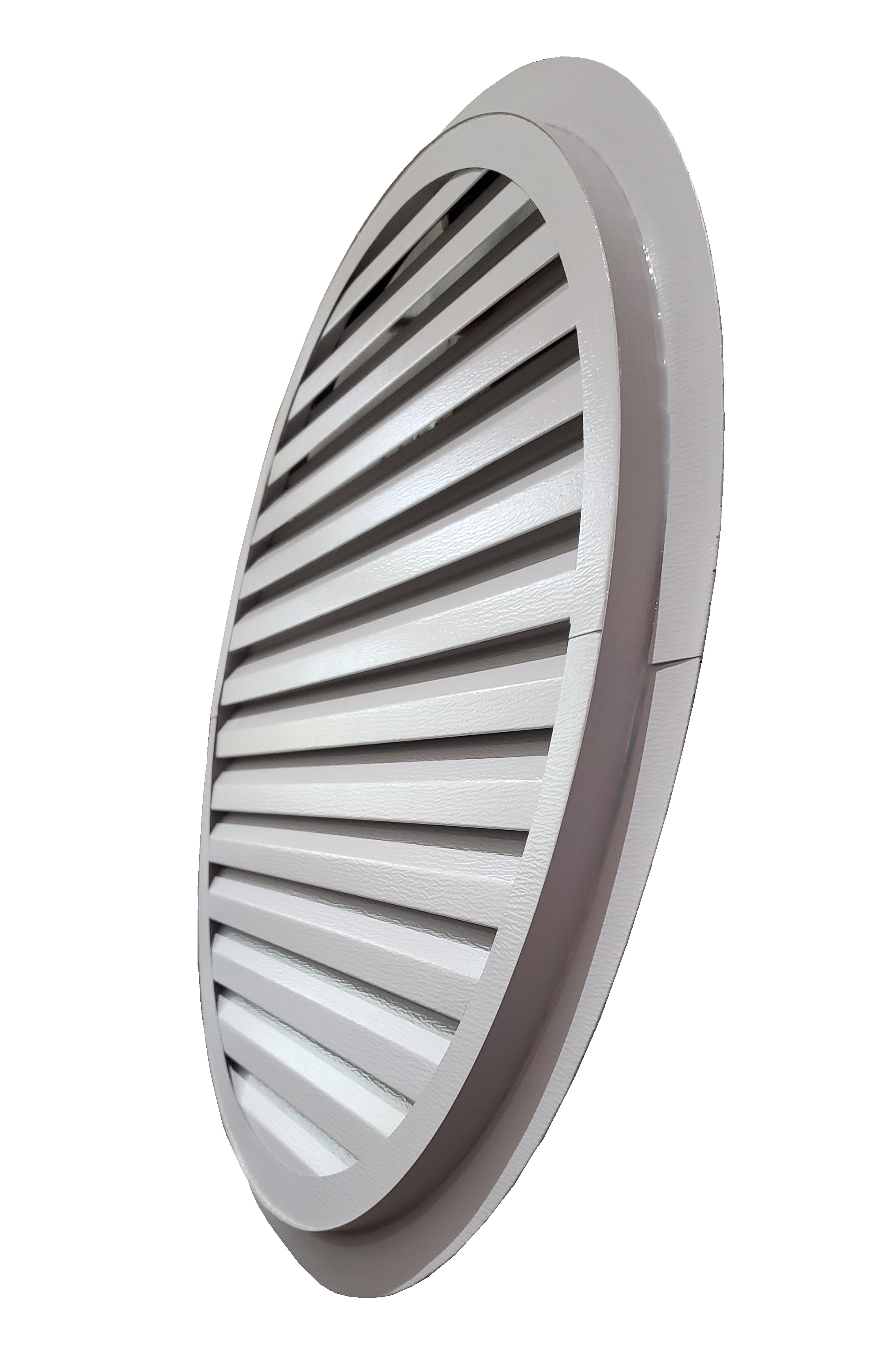

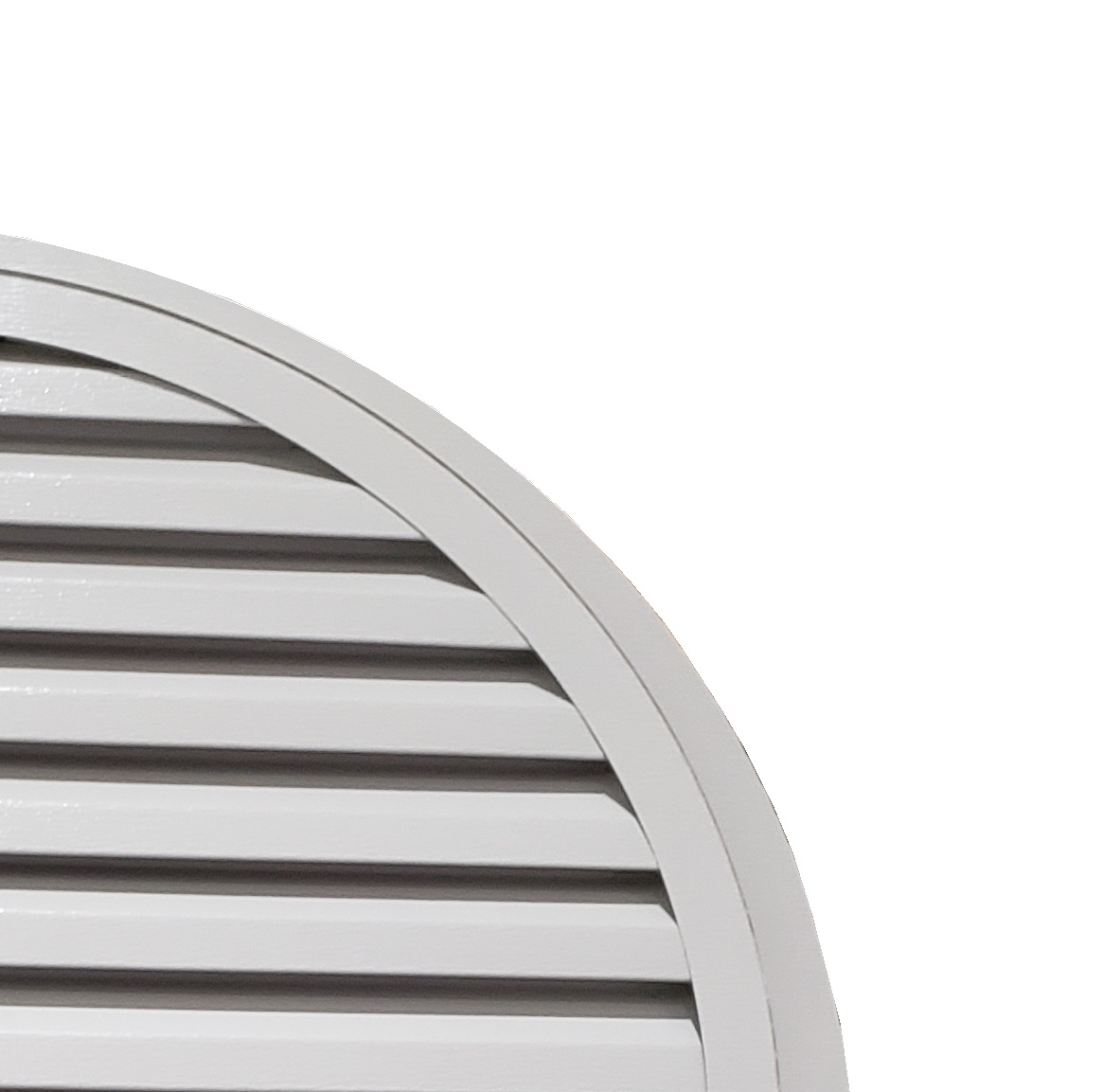

Enjoy a sleak, smooth face trim around the entire round vent.
With the louver face at 1 inch
and the spacing between the same.
Build your custom Round Louver Vent the way you want it.
The rear of the vent is flanged with a 1 1/2 inch nail fin.
The vent itself is the 30 inch by 30 inch measure.
The flange is added.
So, with the flange it is 33 x 33.
This base is boxed (not angled) for setting into a gable wall.
The face trim adds a finished edging so no added trim is necessary.
Platnum Gray

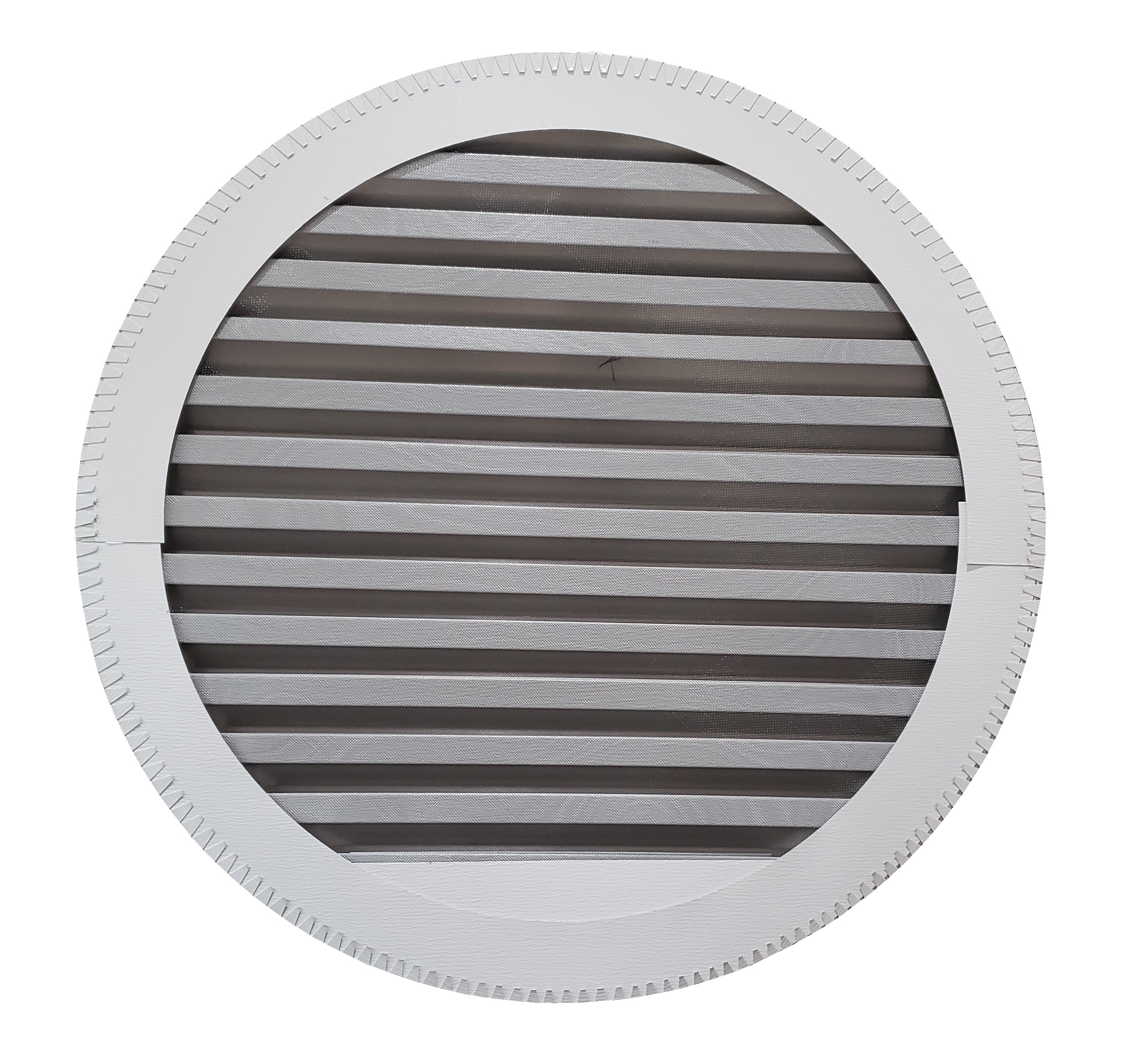

The rear of the vent shows the flange locked into place.
Also, the aluminum screen backing chosen.
The Stronger Rounded Custom Loft Vent
| Vent Size | receive | receive | apx | |||
| if you choose... | order width | order height | vent width | vent height | net free | |
| opening size | 30 | 30 | 29.5 | 29.5 | 302 | |
| tip to tip of vent | 30 | 30 | 30 | 30 | 313 | |
| tip to tip including flange | 30 | 30 | 27 | 27 | 250 |
Depth: 1 inch vent wall
Color Coatings: All .019 Trim Coil
Type of Nailer: Back Flange
Made Of: Aluminum
Functioning: Aluminum, 1/2 inch wire cloth, Metal backing, Black vinyl screening on back
30 X 30 Round Back Flange Vents How do you measure a round vent? Treat it as a square vent. Width and height. Forget about the curves. 30x30x1rolvbfss
Capturing curiosityin a way other metal garret vents can not. These make a statement in any exterior design without taking away valuable wall space.
